14
TRANSPORT USE
D203 E304

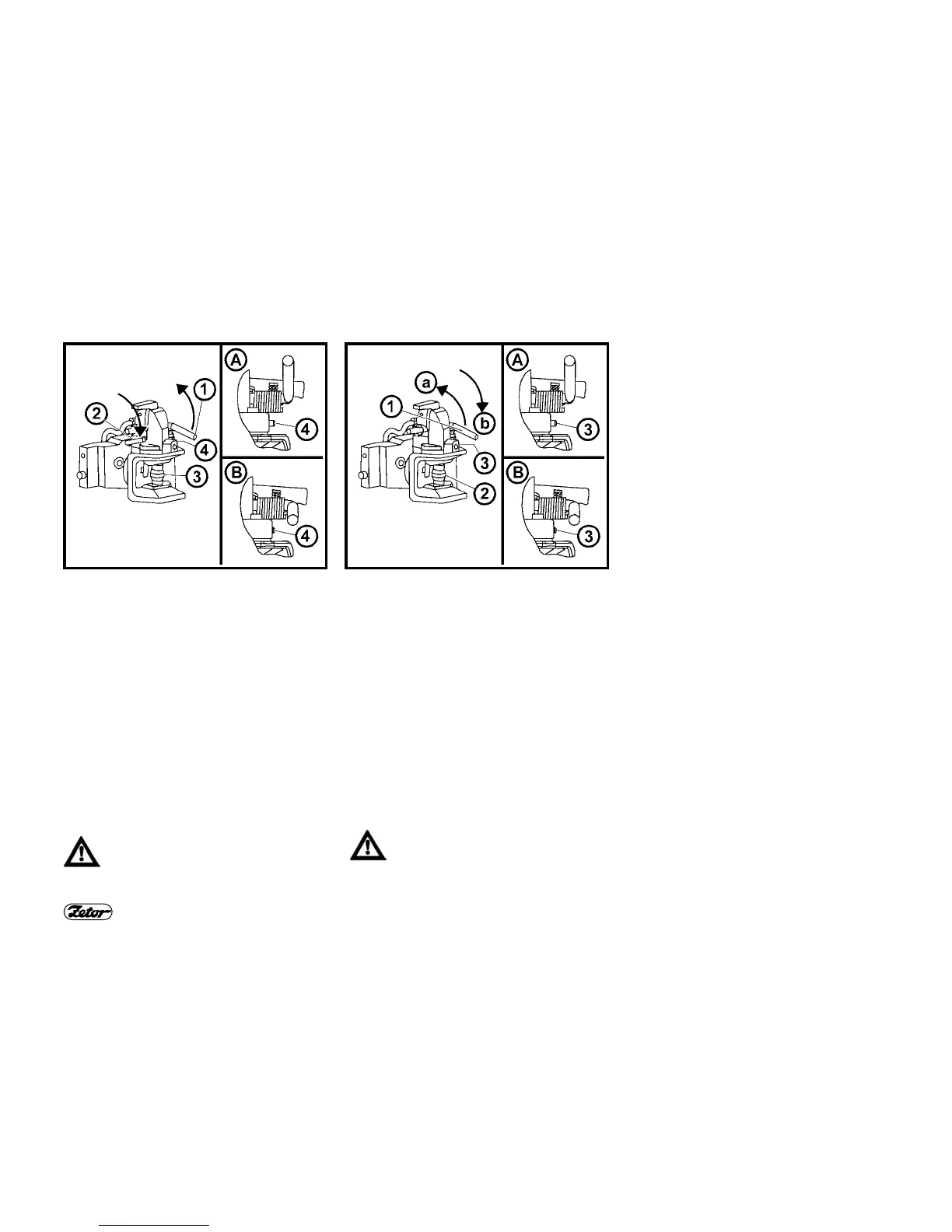

AUTOMATIC GUIDE MOUTH OF THE
MULTI-STOREY HITCH CBM
>31/03/2007
Moving of the lever (1) in direction of the
arrow slides the pin (3) into its upper po-
sition that is indicated by the extracted
warning indicator (4), see Fig. (A).
After sliding of the guide mouth onto the
thill eye the pin slides automatically into
the thill eye of the connected trailer. The
hitch pin (3) can be lowered manually by
moving of the lever (2) in direction of the
arrow. Sliding of the pin in is indicated by
retracted warning indicator (4), see the
Fig. (B).
After hitching of the trailer always
check retraction of the warning
indicator as shown on Fig. (B).
AUTOMATIC GUIDE MOUTH OF THE
MULTI-STOREY HITCH CBM
01/04/2007<
Moving of the lever (1) in direction of the
arrow (a) slides the pin (2) into its upper
position that is indicated by the extracted
warning indicator (3), see Fig. (A).
After sliding of the guide mouth onto the
thill eye the pin slides automatically into
the thill eye of the connected trailer. The
hitch pin (2) can be lowered manually by
moving of the lever (1) in direction of the
arrow. Sliding of the pin in is indicated by
retracted warning indicator (3), see the
Fig. (B).
After hitching of the trailer always
check retraction of the warning
indicator as shown on Fig. (B).
