TRACTOR MAINTENANCE

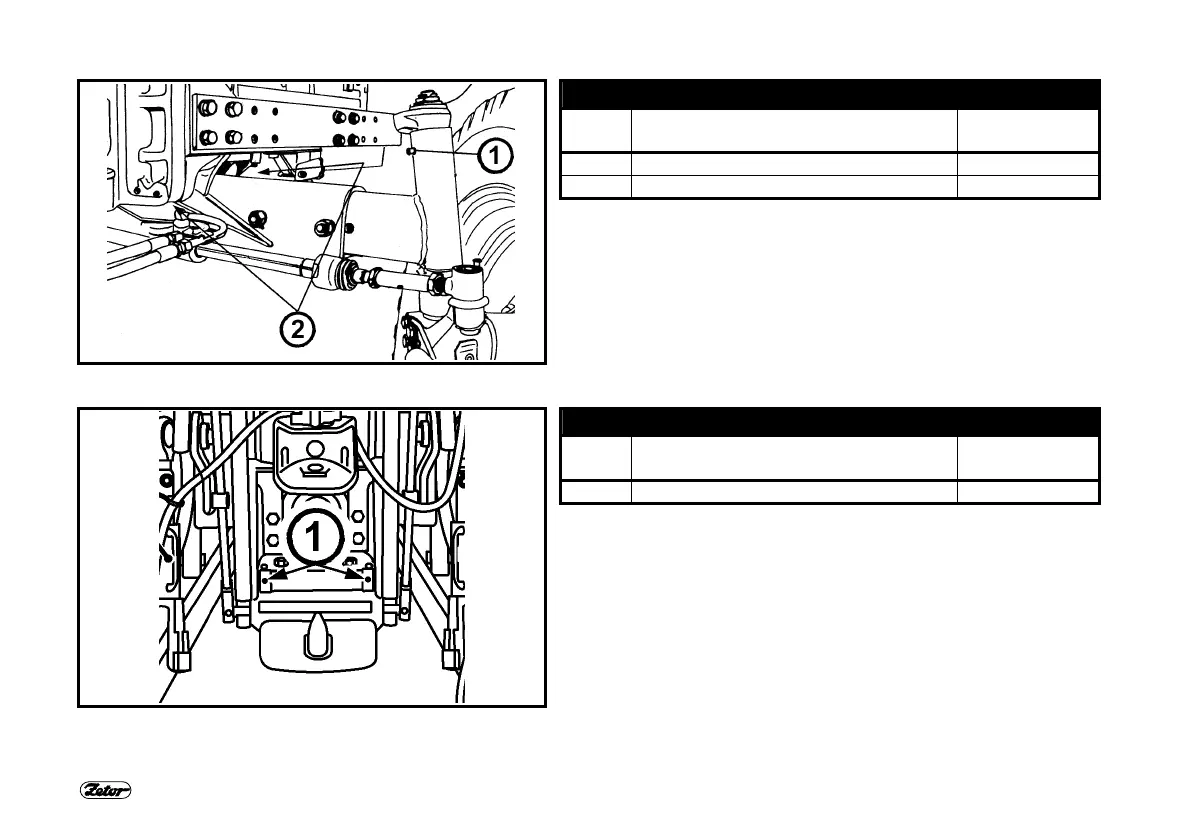

FRONT NON-DRIVING AXLE

Pos.

No.

Name Number of lubr.

points

1 Kingpins 2

2 Central pin 2

SUSPENSION FOR SINGLE-AXLE TRAILER

Pos.

No.

Name Number of lubr.

points

1 Hook pin bearings 2
