Zetor Proxima 80 2012 User Manual

94
HYDRAULIC SYSTEM
P+11N019

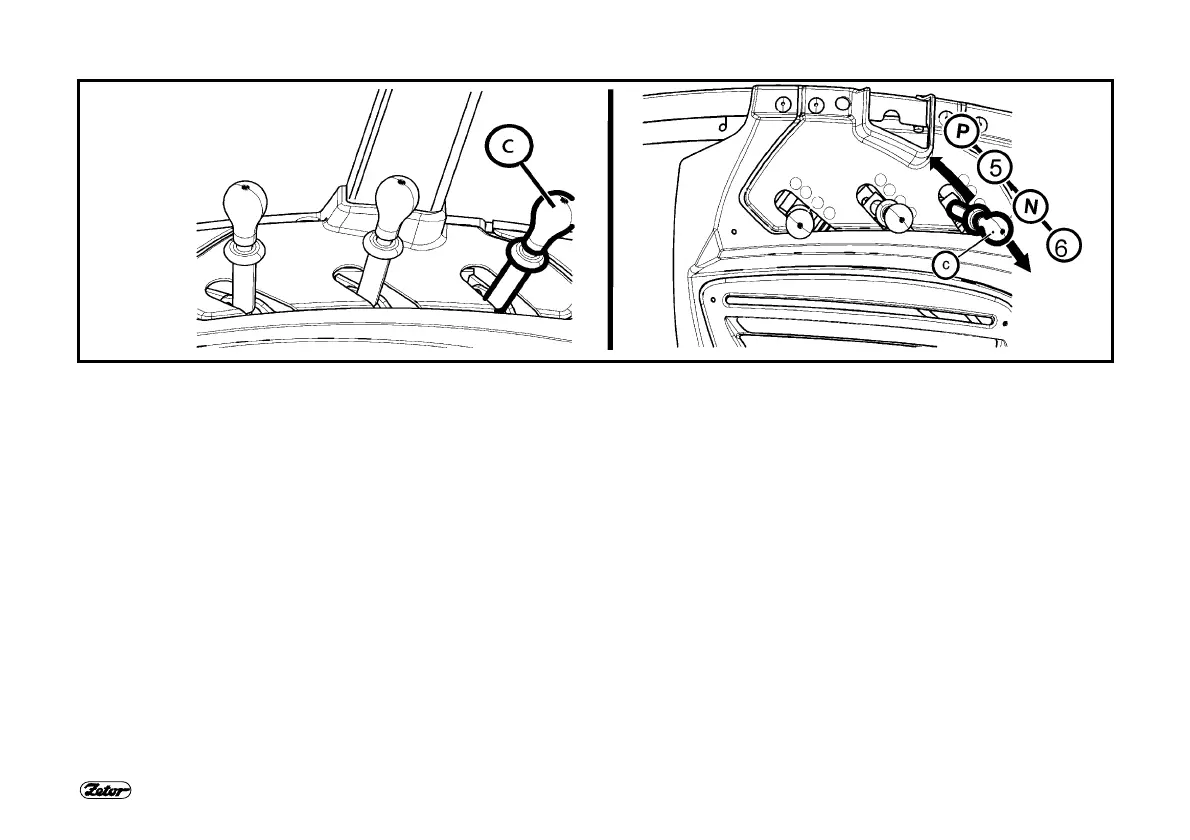

DIFFERENT FUNCTIONS OF OUTER HYDRAULIC CIRCUIT CONTROL LEVERS
There are four positions of the lever (b) which controls quick couplers (5) and (6):
N -
Neutral position. Quick coupler drives (5) and (6) are closed and oil in the hydraulic appliance connected is blocked. Lever
(c) is locked in this position.
5 -
Pressure in quick coupler (5). Quick coupler (6) is connected with the drain. It is necessary to hold lever (c) in this position,
when released, lever (c) automatically returns to (N) position. In addition, quick coupler (5) is equipped with a one-way
valve – convenient for connecting a tool which requires higher degree of impermeability – minimum lowering of the tool
during transport.
6 -
Pressure in quick coupler (6). Quick coupler (5) is connected with the drain. Lever (c) is locked in this position.
P -
Floating position. Both quick couplers (5) and (6) are connected with the drain and oil is free to flow in both directions.
Lever (c) is locked in this position.

Zetor Proxima 80 2012 Specifications

General

Cylinders	4
Cooling	Liquid
Displacement	4156 cm³
Transmission	Mechanical
Max. speed	30 km/h
Hydraulic System	Open center
Hydraulic Pump Flow	50 l/min
Hydraulic pump capacity	50 l/min
Hydraulic pressure	180 bar
PTO Speed	540/1000 rpm
Rear PTO	Independent
Turning Radius	4.3 m
Brakes	Wet disc
Front axle	Rigid
Ground Clearance	450 mm
Engine Type	Diesel
Number of external hydraulic circuits	2
