WHEEL TREAD CHANGE
C504
SETTING THE STOPS AT FRONT
DRIVING AXLE

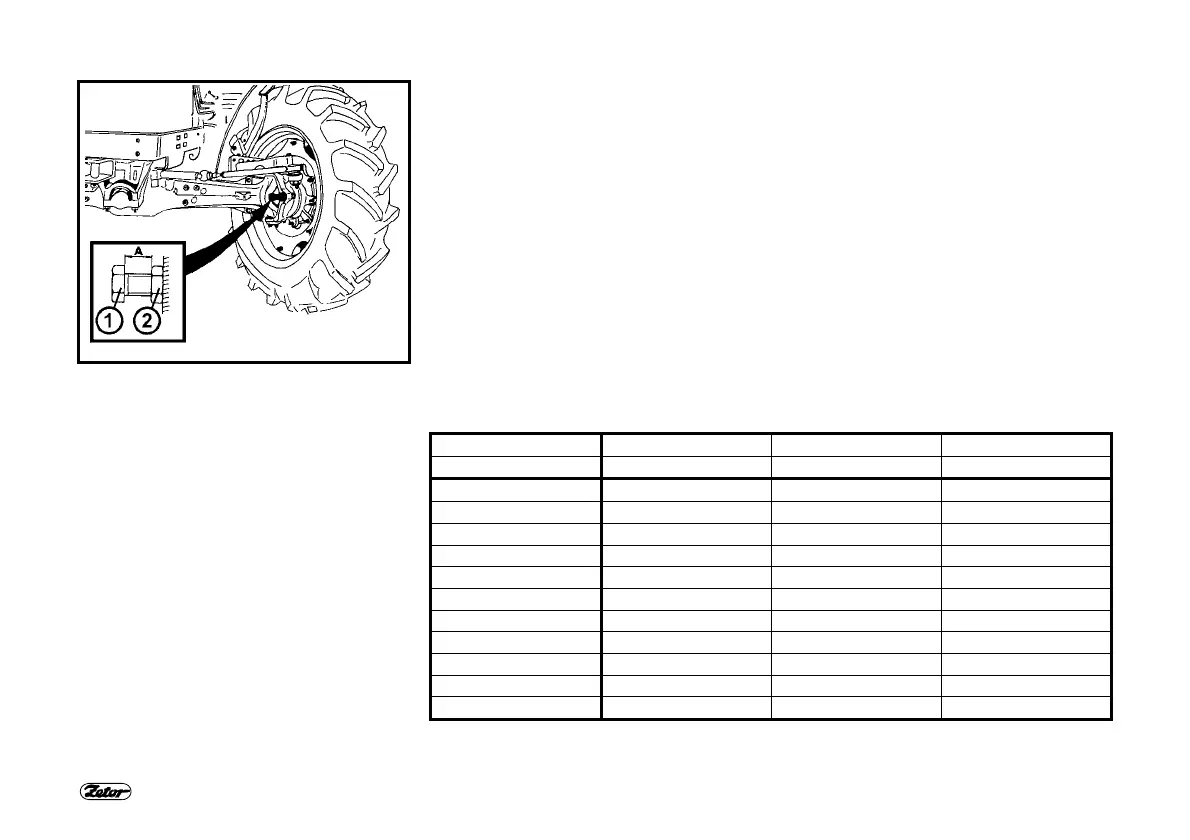

Set stops at each change of front wheel
tread of the driving front axle according
to the mentioned tables after loosening
the nut “2” and treading out or in the
screw “1” at value “A“.
Tire 11,2-24 12,4-24 13,6R24
Treads A (mm) A (mm) A (mm)
1525 60 61
1610 59
1620 46 55
1680 47
1690 50
1760 43
1770 39
1825 32
1835 34
1910 27
1920 27
