131
ELECTRIC INSTALLATION
FH12N029

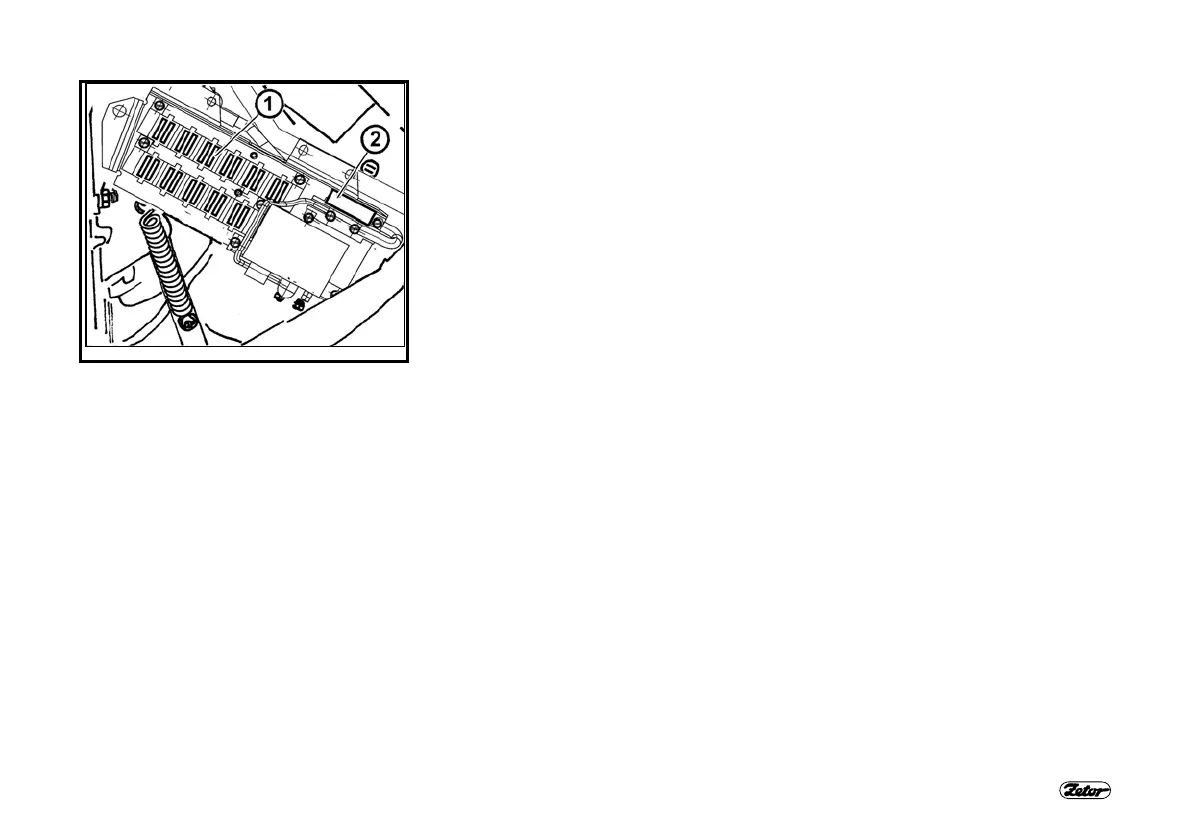

FUSE BOX
It is accessible after removal of the left
cover of the steering bracket.
The blade-type fuses (1) shall be re-
placed for new ones having the same
rating. In case of repeated blowing seek
an authorised repair shop.
Rating of the strip-type fuse (2) is 80 A.
