ADJUSTMENT
C768 C771

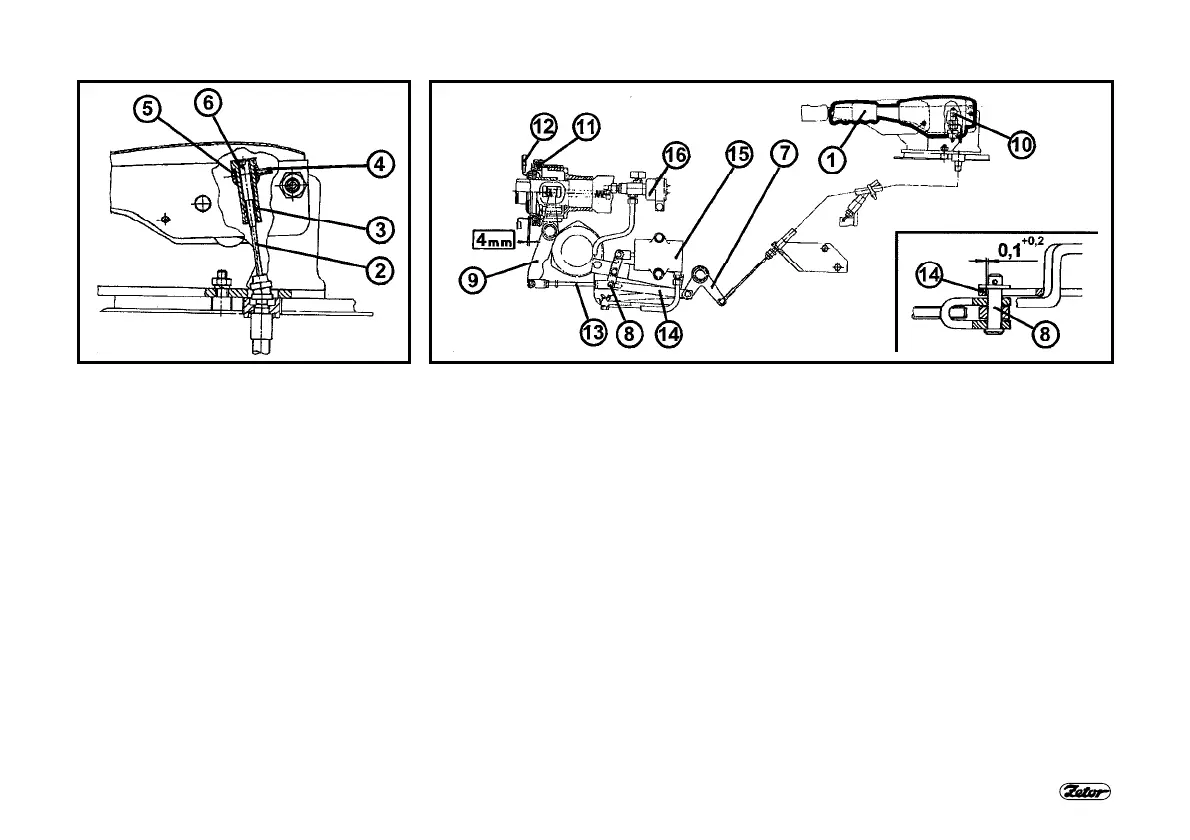

ADJUSTMENT OF PNEUMATIC
CONTROL OF PTO CLUTCH WITH
MECHANICAL CONNECTION
1. Lever
2. Bowden cable
3. Adjusting nut
4. Adjusting screw
5. Pin
6. Bowden cable bolt
7. Two-arm lever
8. Pin
9. Shaft with lever
10. Electric switch
11. Bearing
12. Release levers of travel clutch
13. Adjusting draw rod
14. Draw rod
15. Air cylinder
16. Electromagnetic valve
