Tachomete
Hour meter
Fuel gauge and water temperature gauge
Hazard warning signal switch

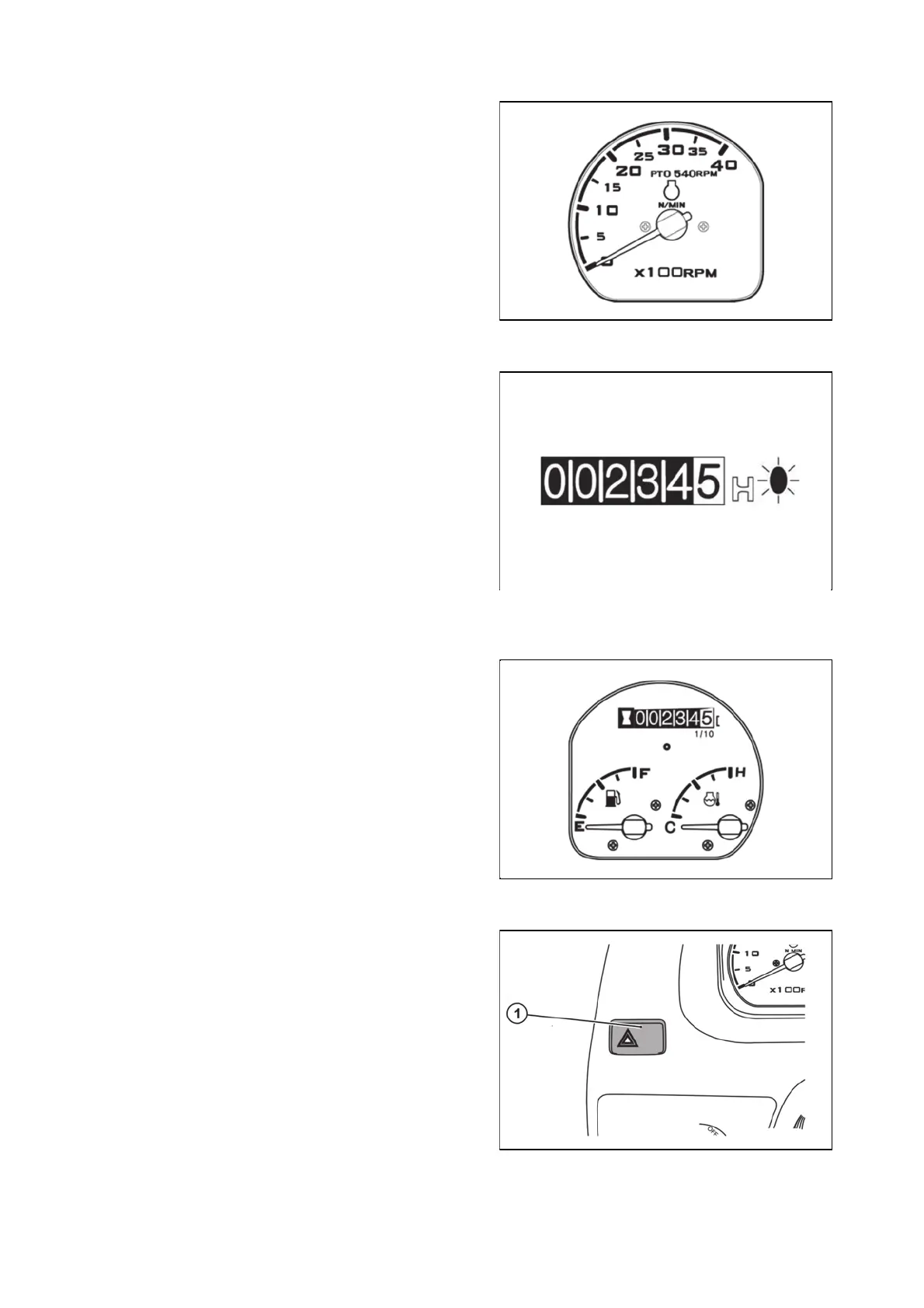

This meter shows the revolutions of the engine and the
PTO shafts as well as the travel speed in top gear.
U18N014
The operating hour meter consists of digits where the last
digit indicates 1/10 of an hour. It shows the number of
operating hours of the tractor.
The indicator light at the bottom of the operating hour
meter should flash during operation to indicate that the
system is operating properly.
UCL18N013
Fuel gauge
Shows the amount of fuel in the tank when the ignition
switch is ON.
Water temperature gauge
Shows the water temperature with the ignition switch ON.
C is low to normal temperature.
H is high temperature.
If the pointer is in the red H segment the engine is
overheating.
Refer this book to rectify the problem.
U18N015
Push the hazard warning signal once to operate the
hazard warning light. (Left and right turn indicators flash).
Push the hazard warning light switch again to switch off
the hazard warning lights.
1 - Hazard warning signal S/W
UCL18N015
CONTROLS, INSTRUMENTS & OPERATIONS
