Zetor UTILIX HT Series User Manual

Working and transport position of the front three-point hitc
h
Driving with agricultural machines attached to the front three-point hitch
The maximum permissible speed of the tractor with agricultural machines attached to the front
three-point hitch is 15 km.h
-1
. If no implement or weight is attached to the front three-point hitch, we
recommend you to lift the lower lifting draw-bars to the transport position.
Towing equipment
Maximum permissible load of the hitch
Warning: All implements mounted on the tractor must be firmly attached and must be in
accordance with the implement manufacturer's instructions. Use only authorized devices.
Warning: The front towing hitch should be used for emergency trailer towing or for towing the
tractor in the yard or in an authorised service centre.
Caution: Never transport partially attached implements, trailers or agricultural machines by
attaching them to the upper link of the three-point hitch. This could cause the tractor to get stuck or
turned over.
Warning: When towing, always secure the hitch pin with a suitable safety pin with a safety clip
to prevent the hitch pin from being pulled out spontaneously. The safety pin must always be
attached to the hitch.
Warning: The maximum permissible hitch load (horizontal and vertical), the maximum
p
ermissible hitch hei
g
ht for road. Use and the maximum trailed load are indicated in the tractor
registration document.
Caution: Do not allow another person to ride on the drawbars or the lower links when the
tractor is in motion.

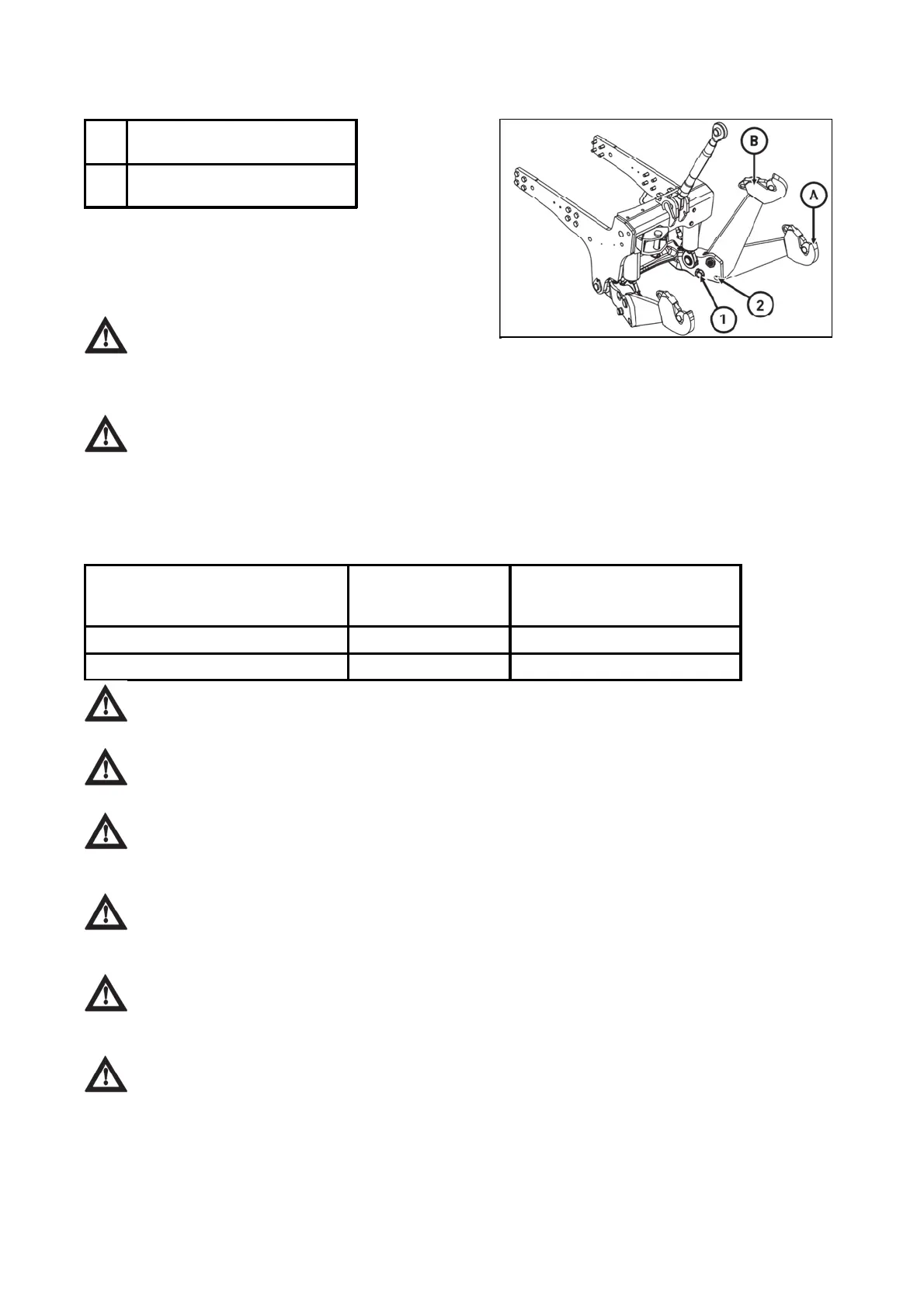

Changing the position of the draw-bars of the front three-
point hitch:
1. Release and remove the pin (1) from the opening.
2. Lift the arm from position (A) to position (B).
3. Lock the arm by inserting the pin (2) in the opening (2)
and secure the pin.
Only insert the pin in the openings, never check
whether the opening is free with your fingers!
A Working position of the front
three-point hitch
B Transport position of the front
three-point hitch
PCLPN062
Hitch type
Maximum draft force
(dynamic load)
Maximum permissible vertical
load
Lower hitch 29,4 kN 500 kg
Multi-level hitch attachment tail piece 42,8 kN 1,200 kg
CONTROLS, INSTRUMENTS & OPERATIONS
72
