SET UP

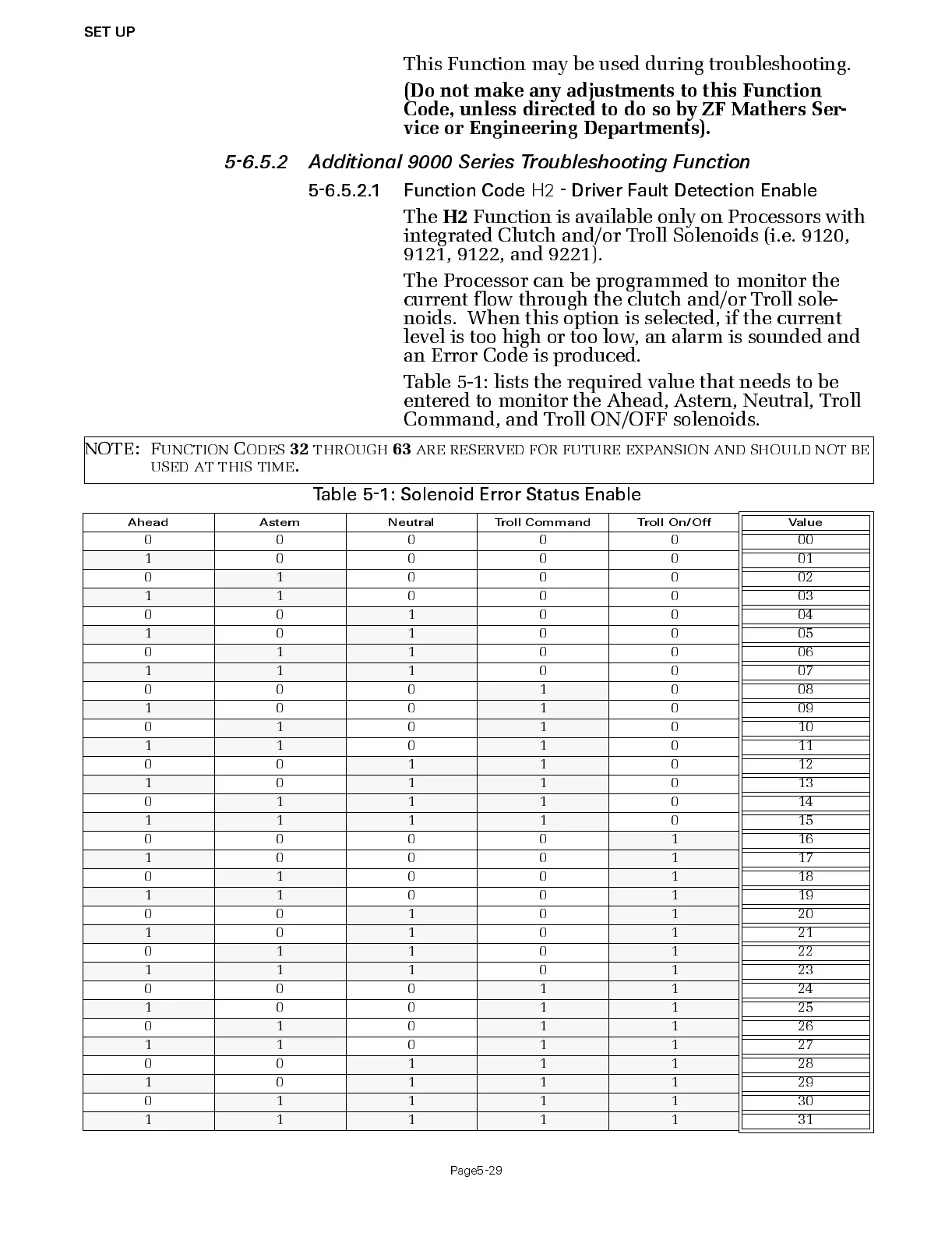

Page5-29
This Function may be used during troubleshooting.
(Do not make any adjustments to this Function
Code, unless directed to do so by ZF Mathers Ser-
vice or Engineering Depart ments).
5-6.5.2 Additional 9000 Series Troubleshooting Function
5-6.5.2.1 Function Code H2 - Driver Fault Detection Enable
The H2 Functio n is ava ilab le only on Processors with
integrated Clutch and/or Troll Solenoids (i.e. 91 20 ,
9121, 9122, and 9221).
The Processor can be programmed to monitor the
current flow through the clutch and/or Troll sole-
noids. When this option is selected, if the current
level is too high or too low, an alarm is sounded and
an Error Code is produced.
Table 5-1: lists the required value that needs to be
entered to monitor the Ahead, Astern, Neutral, Troll
Command, and Troll ON/OFF solenoids.
NOTE: F UNCTION C ODES 32 THROUGH 63 ARE RESERVED FOR FUTURE EXPANSION AND SHOULD NOT BE
USED AT THIS TIME .
Table 5-1: Solenoid Error Status Enable
Ahead Astern Neutral Tro ll Command Tr o ll On /O ff Valu e
0 0 0 0 000
1 0 0 0 001
0 1 0 0 002
1 1 0 0 003
0 0 1 0 004
1 0 1 0 005
0 1 1 0 006
1 1 1 0 007
0 0 0 1 008
1 0 0 1 009
0 1 0 1 010
1 1 0 1 011
0 0 1 1 012
1 0 1 1 013
0 1 1 1 014
1 1 1 1 015
0 0 0 0 116
1 0 0 0 117
0 1 0 0 118
1 1 0 0 119
0 0 1 0 120
1 0 1 0 121
0 1 1 0 122
1 1 1 0 123
0 0 0 1 124
1 0 0 1 125
0 1 0 1 126
1 1 0 1 127
0 0 1 1 128
1 0 1 1 129
0 1 1 1 130
1 1 1 1 131
