INTRODUCTION
Page 1-5
1-2.4 9211 Pr ocessor (Throttle - Electronic, Shift - Servo 1, Troll -
Servo 2)
The 9211 Sy stem is designed f or pleasure and l ight commer-
cial marine vess els that require remote control of:
• electron ic eng ine govern or s
• mechanically actuated clutches
• mec han ical ly actuated tr ol lin g val ves.
The Processor is typically mounted in the engine room area
an d is c o nn ected t o the el ectro ni c go v erno r wi th a t w o - c o n-
ductor , s hielded, elec tric cable.
T he tr an smi ss i on and tr ollin g va l v e ar e c on t ro l le d m ech an i -
cally using a standard 33C type push-pull cable.

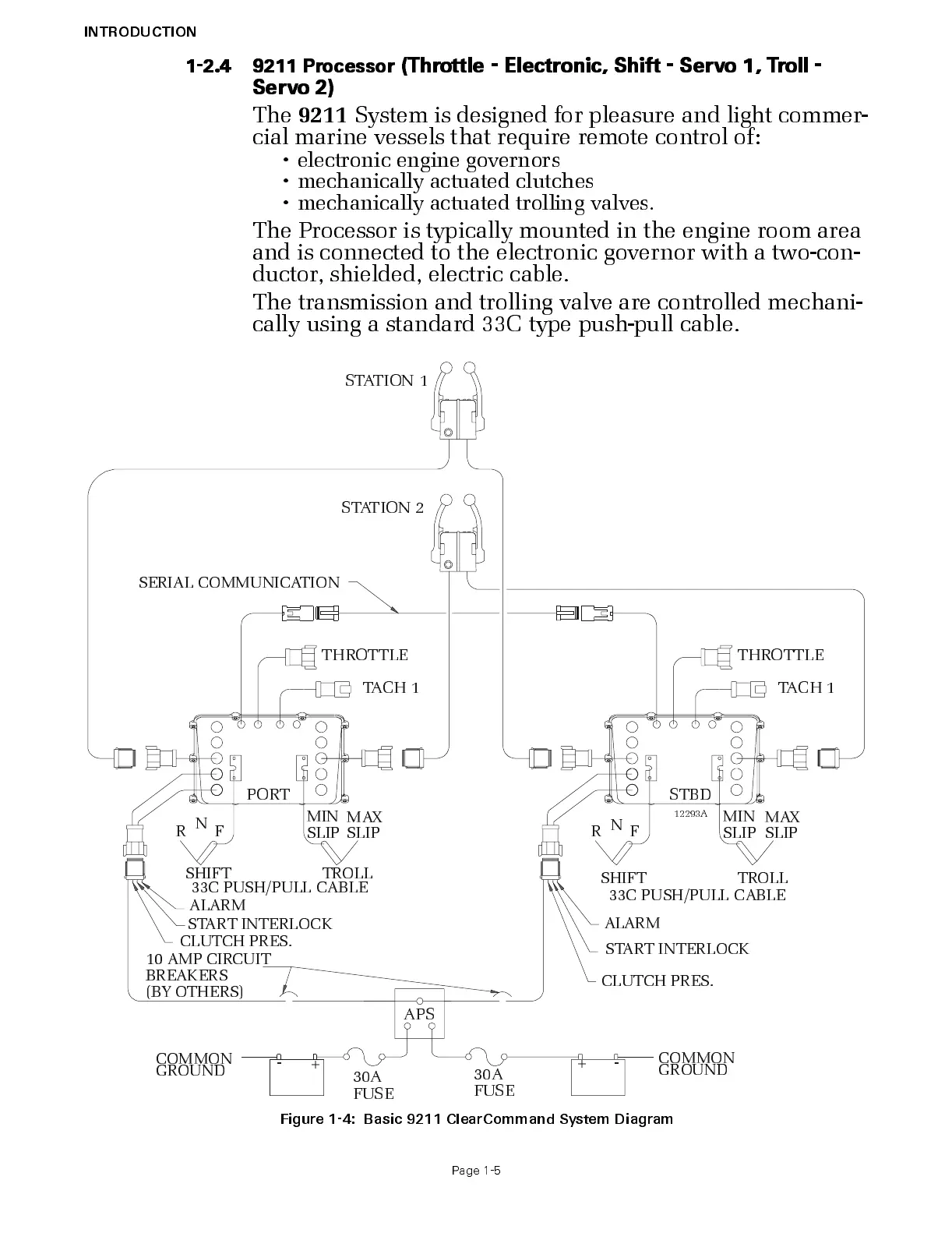

Figure 1-4: Basic 9211 ClearCommand System Diagram
33C PUSH/PULL CABLE
33C PUSH/PULL CABLE
TROLLSHIFT
F
N
RFR
N
TROLLSHIFT
STBD
STATION 2
STATION 1
PORT
12293A
SERIAL COMMUNICATION
10 AMP CIRCUIT
BREAKERS
(BY OTHERS)
APS
CLUTCH PRES.
START INTERLO CK
A
LARM
START INTERLOCK
CLUTCH PRES.
ALARM
TAC H 1 TAC H 1
THROTTLETHROTTLE
MIN
SLIP
MAX
SLIP
30A
FUSE
30A
FUSE
-
+
-
+
GROUND
COMMON
GROUND
COMMON
MIN
SLIP
MAX
SLIP
