PREFACE
Preface-1

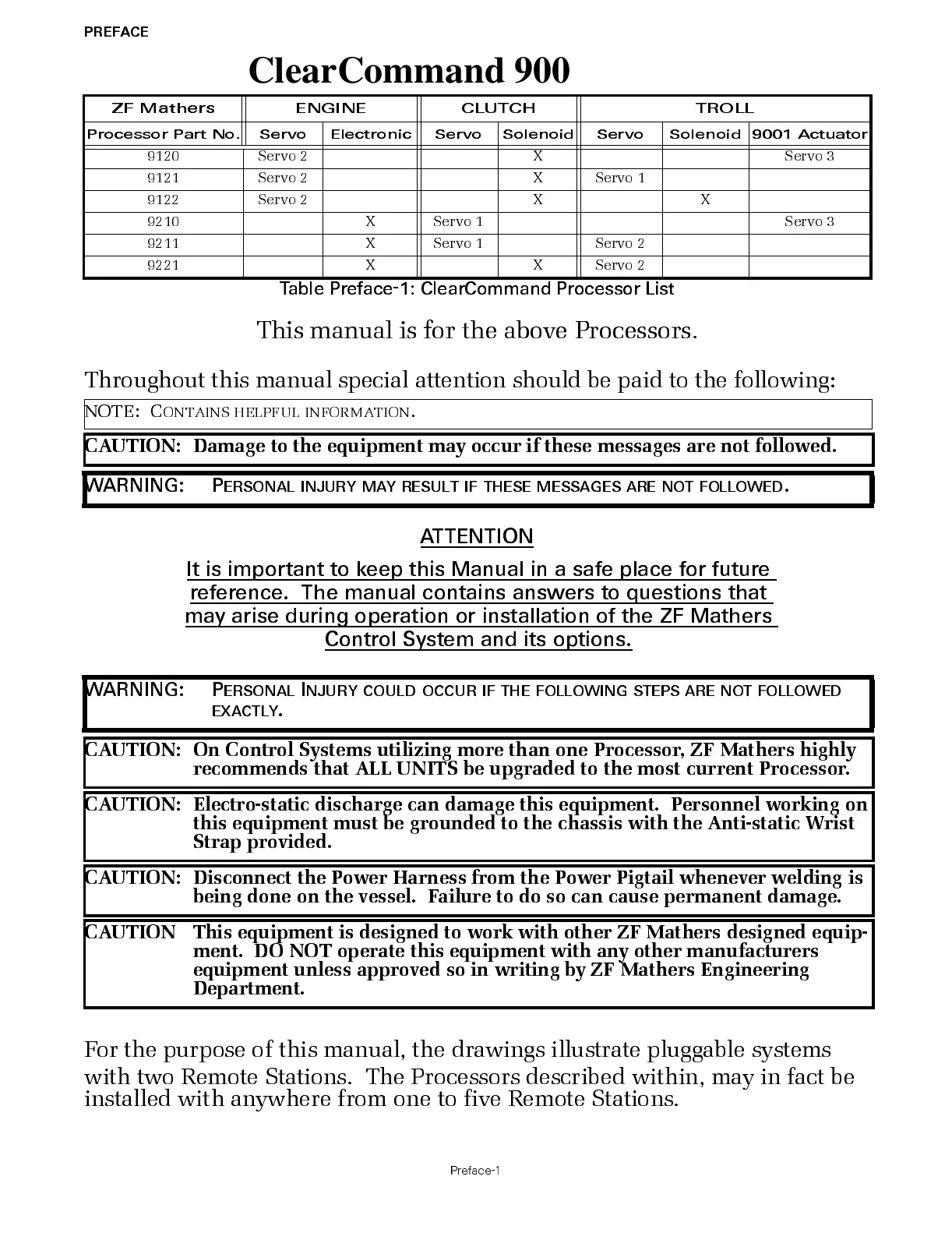

ClearCommand 9000 Series
This manual is for the above Processors.
Throughout this manual special attention should be paid to the following:
ATTENTION
It is important to keep this Manual in a safe place for future
reference. The manual contains answers to questions that
may arise during operation or installation of the ZF Mathers
Control System and its options.
For the purpose of this manual, the drawings illustrate pluggable systems
with two Remote Stations. The Process ors described within, may in fact be
installed with anywhere from one to five Remote Stations.
ZF Mat h er s ENGI NE CLUTC H TRO L L
Processor Part No. Servo Electronic Servo Solenoid Servo Solenoid 9001 Actuator
9120 Servo 2 X Servo 3
9121 Servo 2 X Servo 1
9122 Servo 2 X X
9210 X Servo 1 Servo 3
9211 X Servo 1 Servo 2
9221 X X Servo 2
Table Preface-1: ClearCommand Processor List
NOTE: C
ONTAINS
HELPFUL
INFORMATION
.
CAUTION: Damage to the equipment may occur if these messages are not followed.
WARNING: P
ERSONAL
INJURY
MAY
RESULT
IF
THESE
MESSAGES
ARE
NOT
FOLLOWED
.
WARNING: P
ERSONAL
I
NJURY
COULD
OCCUR
IF
THE
FOLLOWING
STEPS
ARE
NOT
FOLLOWED
EXACTLY
.
CAUTION: On Control Systems utilizing more than one Processor, ZF Mathers highly
recommends that ALL UNITS be upgraded to the most current Processor.
CAUTION: Electro-static discharge can damage this equipment. Personnel working on
this equipment must be grounded to the chassis with the Anti-static Wrist
Strap provided.
CAUTION: Disconnect the Power Harness from the Power Pigtail whenever welding is
being done on the vessel. Failure to do so can cause permanent damage.
CAUTION This equipment is designed to work with other ZF Mathers designed equip-
ment. DO NOT operate this equipment with any other manufacturers
equipment unless approved so in writing by ZF Mathers Engineering
Department.
