ZIEHL-ABEGG ZA dynpro User Manual

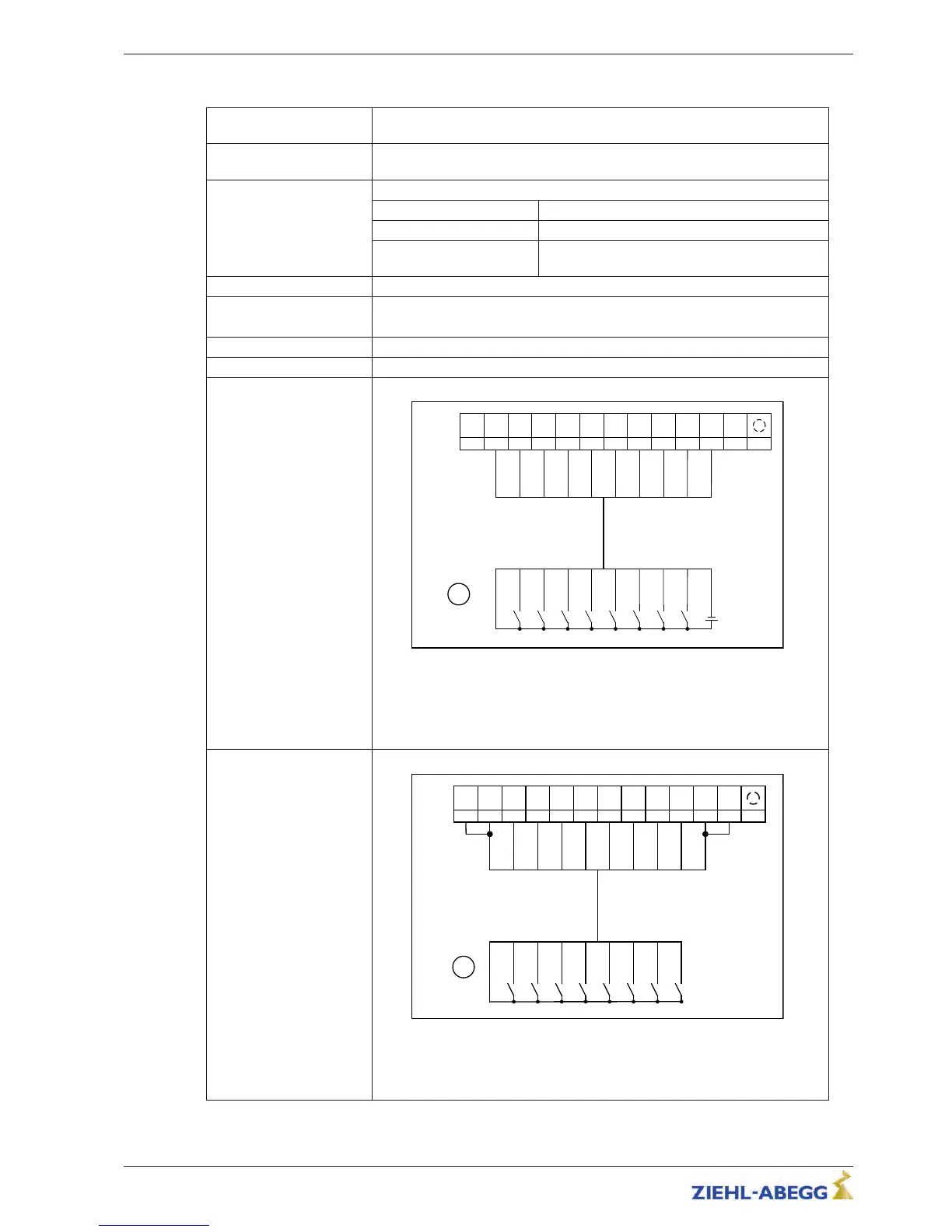

5.9 Digital inputs (X-IN)
Designation of the con-
nection terminal:
X-IN
Number of the digital in-
puts:
8, freely configurable
Technical data: The digital inputs comply with the IEC61131-2 TYPE 2 industry standard.
Voltage range: +22 ... 26 VDC
Switching level low/high: <5 VDC / >11 VDC
Current consumption at 24
V:
10 mA (-20%)
Line cross-section: max. 1,5 mm²
Type of cable:
•
Individual conductors
•
Not shielded
Cable lengths:
Max. 25 m
Connection type: Screw terminals
Connection: Connection with external power supply
X-IN
+24V
+24V
_IN
I01 I02 I03 I04 I05 I06 I07 I08
GND
_IN
GND
+24V
0V
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13)
1
1 Modulation
() terminal designation of connector
When using the external power supply the bridges between the terminals
+24V / +24V_IN and GND / GND_IN the pre-assembled control cable X-I are
not required. These must be removed!
Connection with internal power supply
X-IN
+24V
+24V
_IN
I01 I02 I03 I04 I05 I06 I07 I08
GND
_IN
GND
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13)
1
1 Modulation
() terminal designation of connector
When using the internal power supply, a bridge must be placed between the
+24V / +24V_IN terminals and between GND / GND_IN.
Original operating instructions
ZAdynpro – Part 1 Electrical installation
R-TBA17_01-GB 1837 Index 004 Part.-No. 00163459-GB
