P4

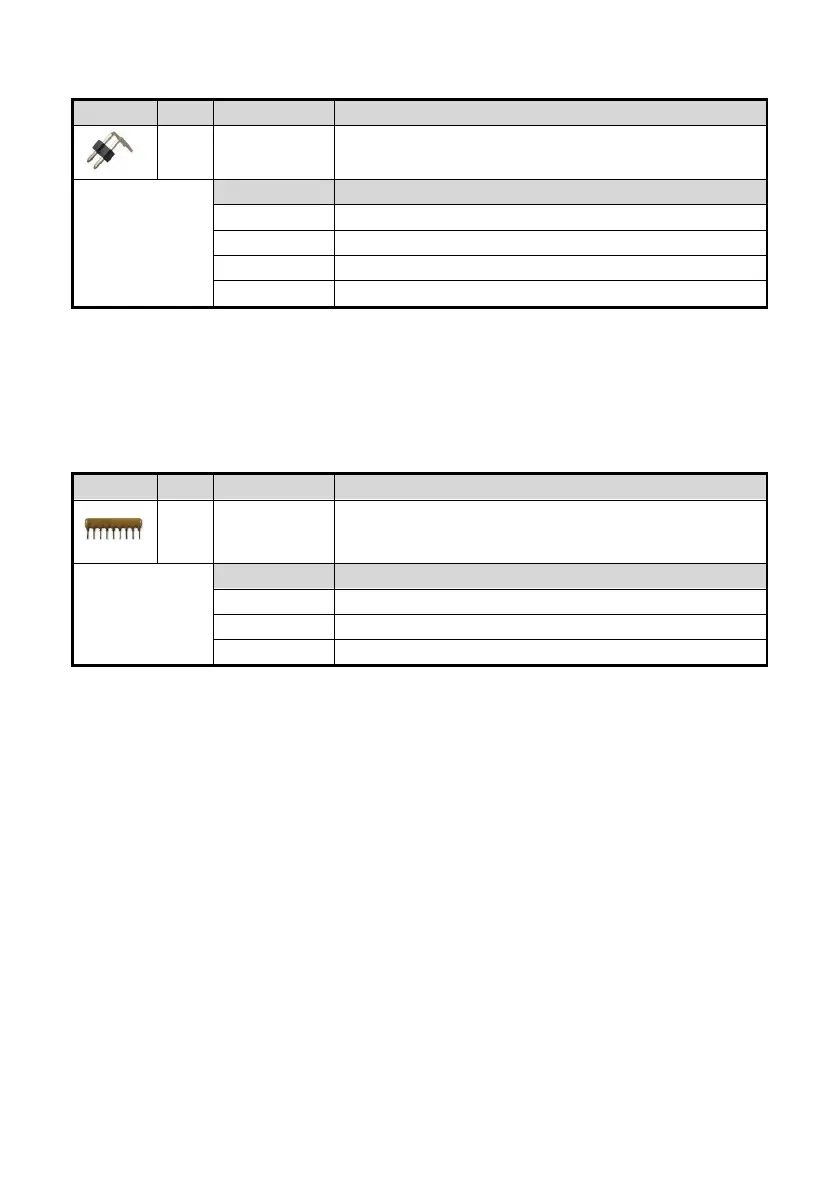

Image Qty Reference Description
1
P4 Pin header, male,angled,1-row x 2-pin
Supplier Partnumber
eBay 200906546562(1x40 pin tobe cutto length)
Farnell 2356192 (1x40pin to be cut to length)
Mouser 710-61304011021(1x40 pin tobe cut tolength)
RS 156-077(1x40 pin tobe cutto length)
As theofficial RC2014 backplanesdo not provide aZ80mode 2 interrupt daisychain
(IEI and IEOsignals), these havebeen broughtto the backof the boardwherethey
canbe easilylinked toother moduleswith Dupontwires.
RP1
Image Qty Reference Description
1
RP1 Resistor pack8x10k, SIL,9-pin
Supplier Partnumber
Farnell 9356819
Mouser 652-4609X-1LF-10K
RS 333-864
Thisis a network of8 resistors withone endof eachresistorcommon to pin 1. The
resistorsare usedto pull upthe address selectswitch (SW1) outputsand alsoto pull
up theinterrupt enableinput signal(IEI).
