ZiLOG Z80

4

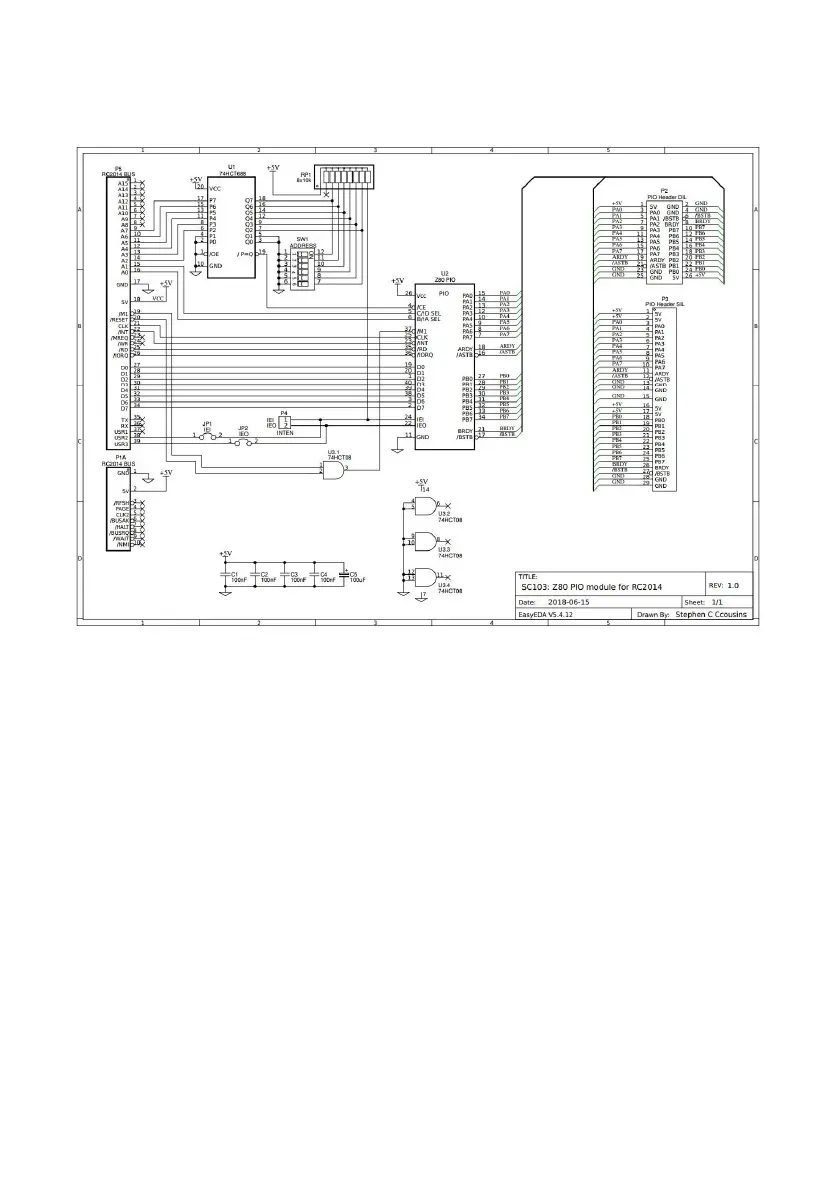

Schematic
Errata
Version1.0 ofthe PCBhasthe RC2014 IEI (pin 38) and IEO (pin 39) incorrectly
labelled.The labelsare incorrectlyshownnext to pins 37 and38, not 38 and 39.
Alsoport AI/O linesare notcorrectly labelled on thebackof theboard. Thelabels
on thefrontof theboard are correct though.
