Step 11

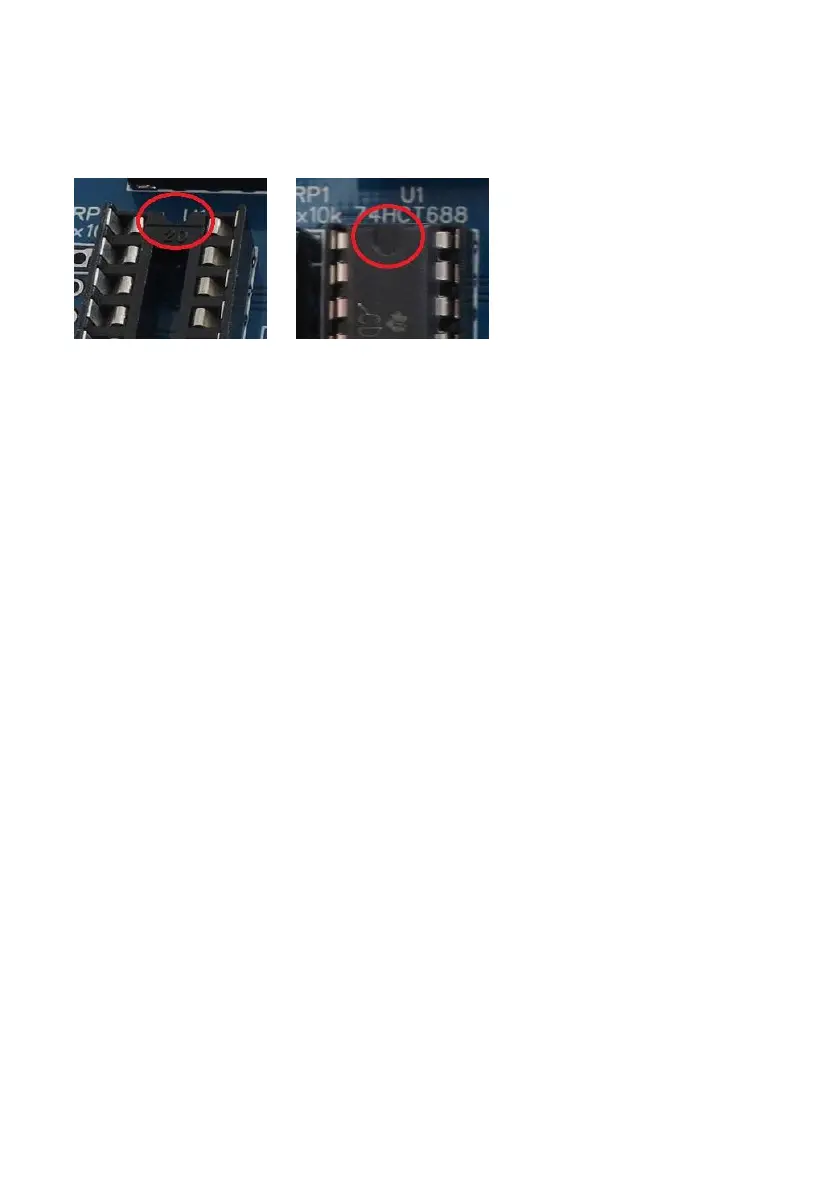

Insertthe ICsinto theirsockets, takingcare toinsertthem the right wayround, as
illustrated below. Becarefulnotto bendany legsover.
Now plugthe PIOmodule intothe RC2014backplane togetherwith yournormal
workingset of modules.Powerup and check thesystemis working asusual.
