Zipro Easy User Manual

25
EN

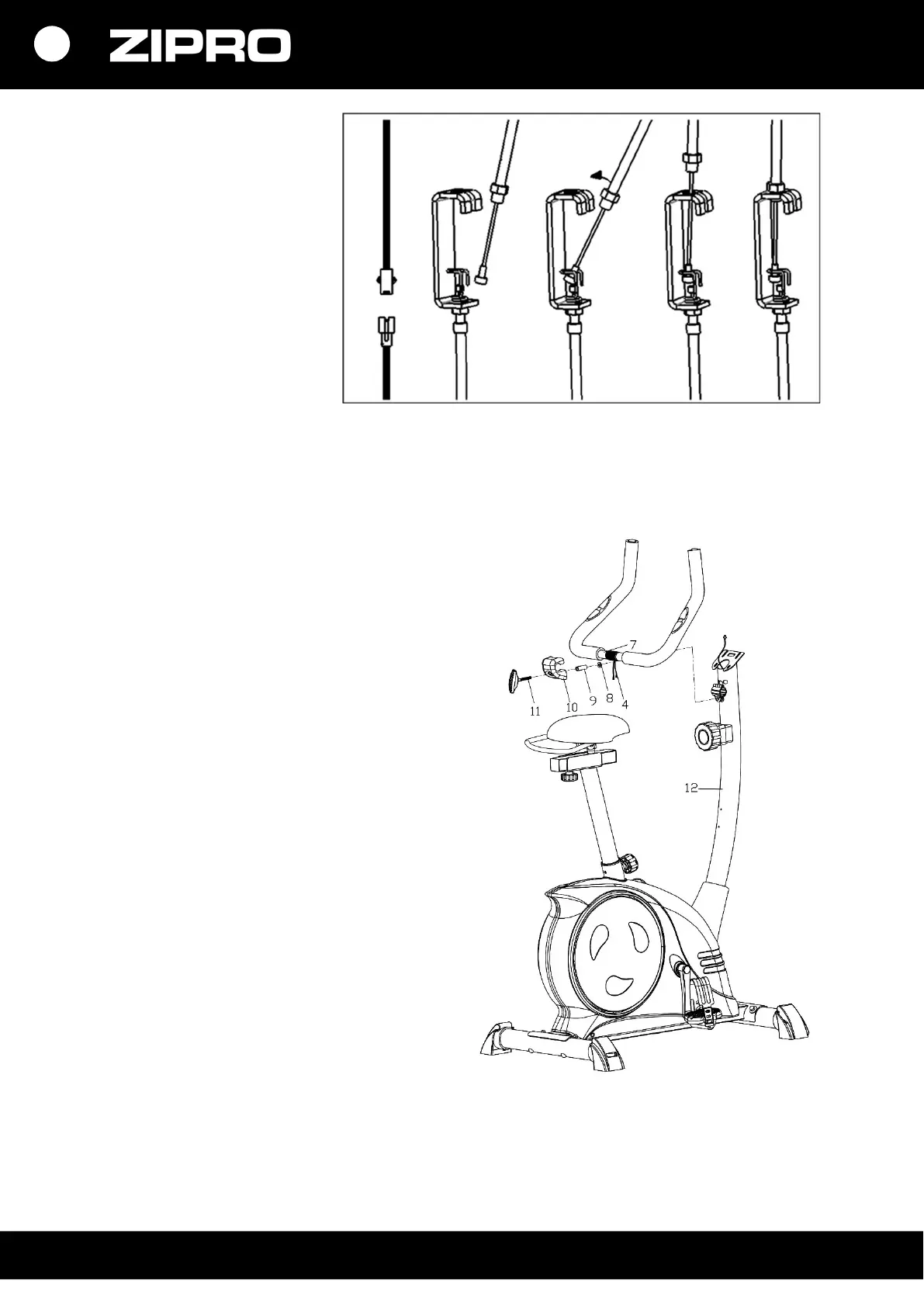

Slide the nut of the upper
resistance adjustment cable
(16) into the slot in the bracket
of the lower resistance
adjustment cable (16), pull
and tighten the upper cable
(16) and move the lower cable
bracket (16) vertically. Cable
nut should be on the bracket
as shown in the picture.
Put the handlebar column cover (15) on the main frame (1) and then insert the handlebar column
(12) into the main frame (1) and fix it with Allen bolts (14) and curved washers (13).
5. Install the handlebar
Pull out the computer cable from the handlebar
column (12) through the computer bracket.
Fix the handlebar (7) to the handlebar column
(12) with the handlebar angle adjustment handle
(11), the handlebar angle adjustment handle
sleeve (9) and handlebar cover (10).
16
3
36
37
