EBC-A40L User Manual
Copyright (C) 2006-2017 ZKETECH

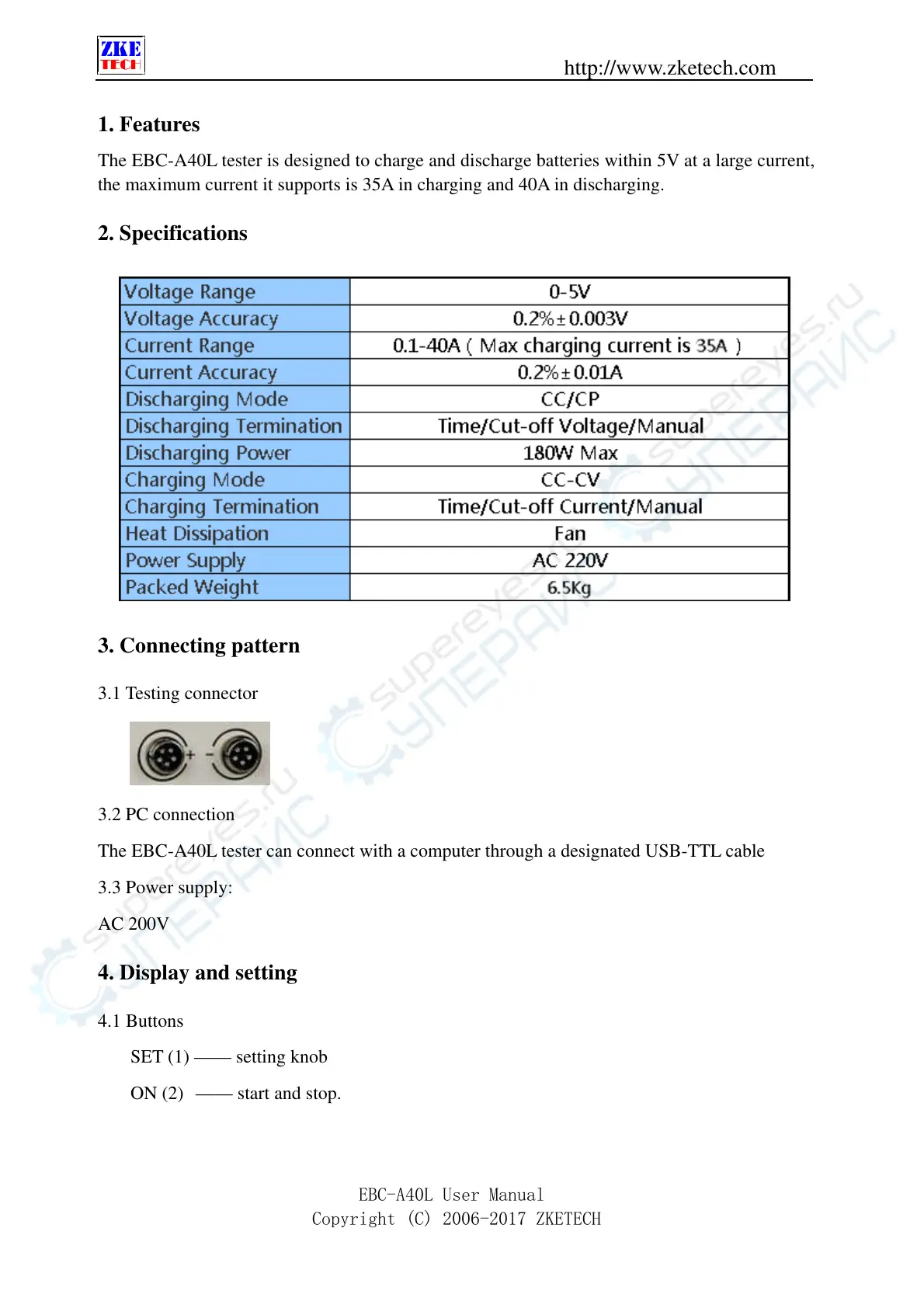

1. Features
The EBC-A40L tester is designed to charge and discharge batteries within 5V at a large current,
the maximum current it supports is 35A in charging and 40A in discharging.
2. Specifications
3. Connecting pattern
3.1 Testing connector
3.2 PC connection
The EBC-A40L tester can connect with a computer through a designated USB-TTL cable
3.3 Power supply:
AC 200V
4. Display and setting
4.1 Buttons
SET (1) —— setting knob
ON (2) —— start and stop.
