CMP-200 User Manual
Page | 10 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
3 Product Installation
Installation Precautions
• Install the parking barrier on level ground. If the ground is not firm and
steady, then a cement base is required before installation.
• The boom can be cut, but cannot be increased. Cut the boom to the
required length, and then set the spring to balance and achieve the new
height. Two plastic nuts that lie in the bottom of the spring is designed
for adjusting the new balance.
• Do not change the wire connection inside when the power is on.
• The GND should be connected to the cabinet for secure protection.

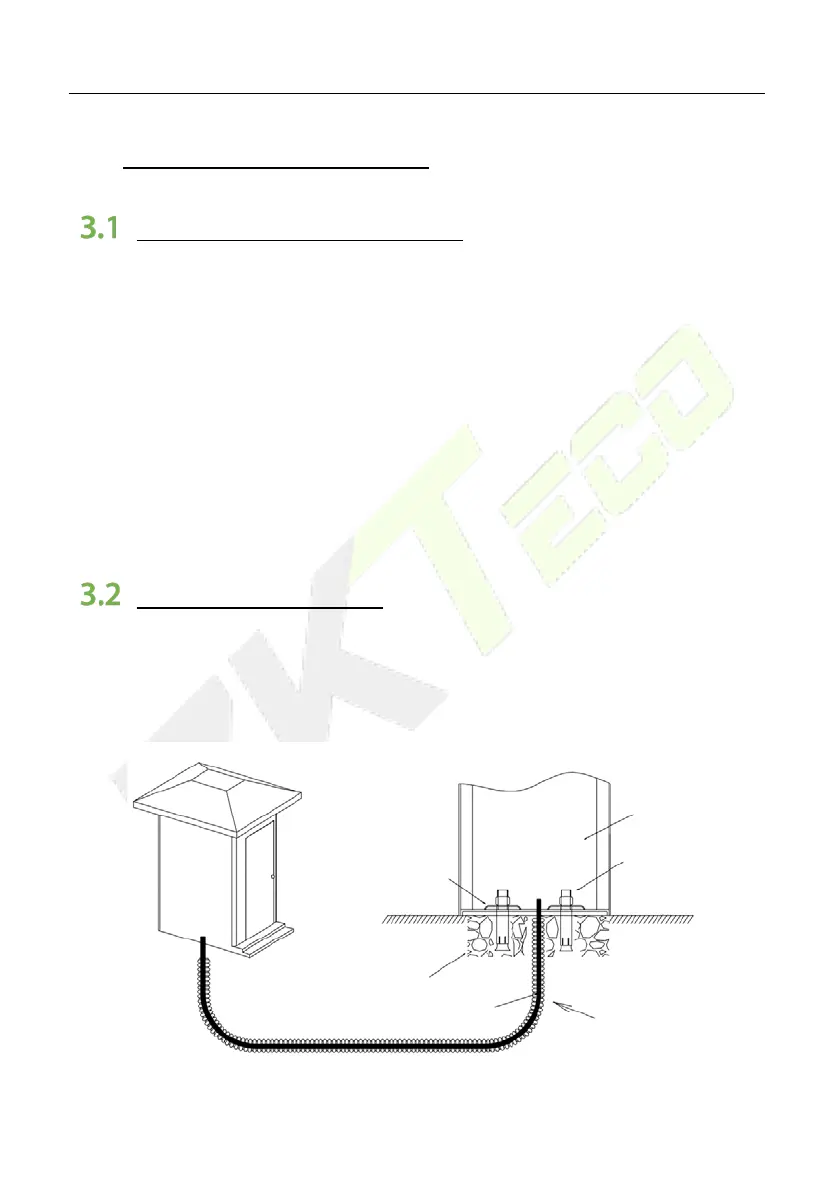

Cable Embedding
• Prepare φ25 protective sleeve and cable in advance.
• Route the cables to be connected through the protective sleeves.
• Use a tool to open the cable board in the ground.
Control
room
Screw pad
Ground
Cabinet
Expansion bolt
4-M12
Ground
Base concrete
A standard power wire RVV3*1.0
Signal line RVV4*0.5
The power wire is wrapped
and protected using the
wire sleeve when laid out
under the ground (the
strong current should be
separated from the weak
current)
