ZKTeco F18 Quick Start Guide

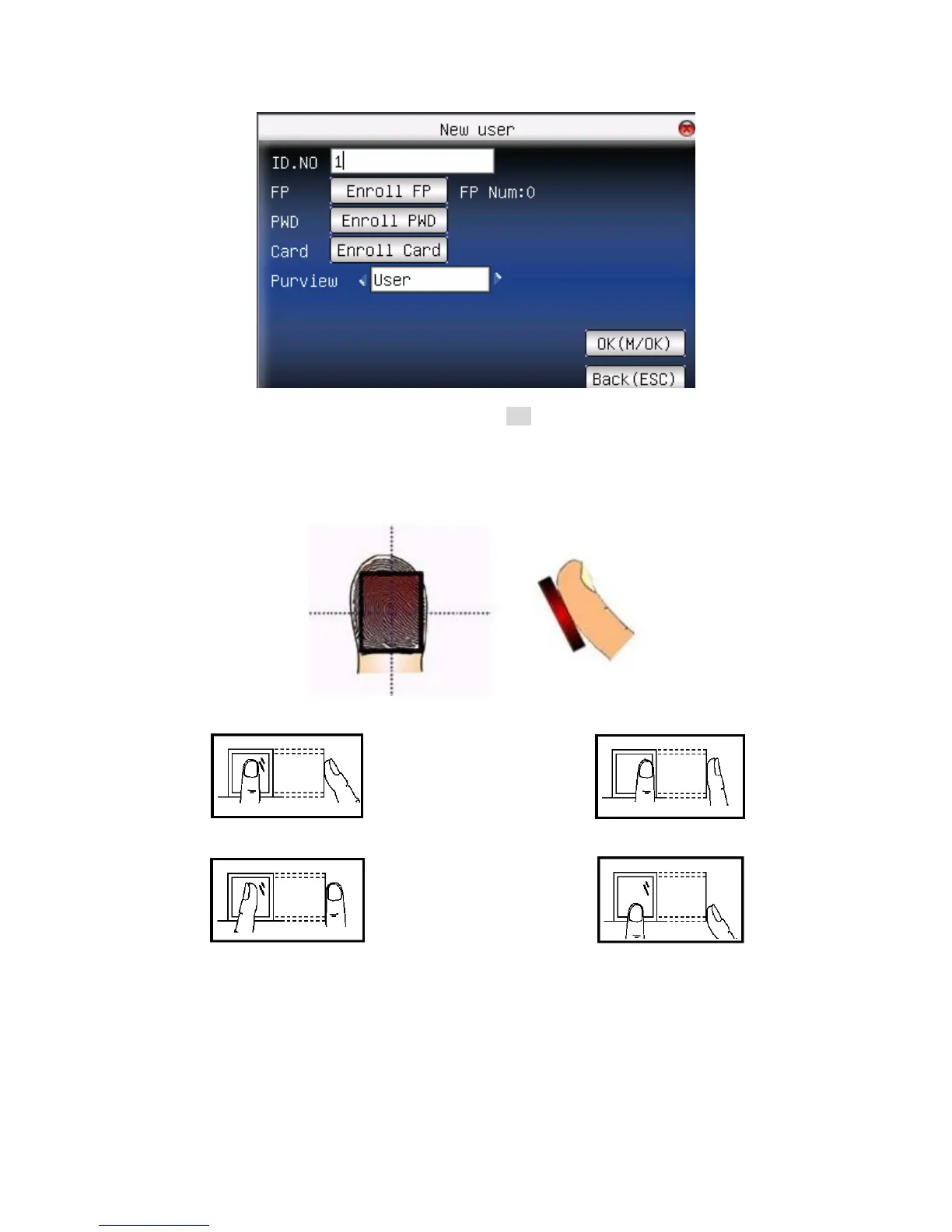

Notice “Enroll FP” will become highlighted. Press OK to accept selection.
Remember the rules for proper finger placement;
The user’s finger should completely cover the sensor. The finger should be placed flat and in
the center of the sensor. The finger should cover at least 80% of the sensor as shown below:
The finger should NOT be placed in the following positions:
Not flat
Not centered
Not flat
Not centered
Notice the following screen appears:

ZKTeco F18 Specifications

General

Type	Basic access control reader
Product color	Gray
Number of users	1 user(s)
Access code reader	-
Fingerprint reader	Yes
Authentication type	Biometric
Display type	TFT-LCD
DC voltage range	0 - 12 V
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	183 mm
Width	80 mm
Height	42 mm
