ZKTeco ProFace X - Page 2

1

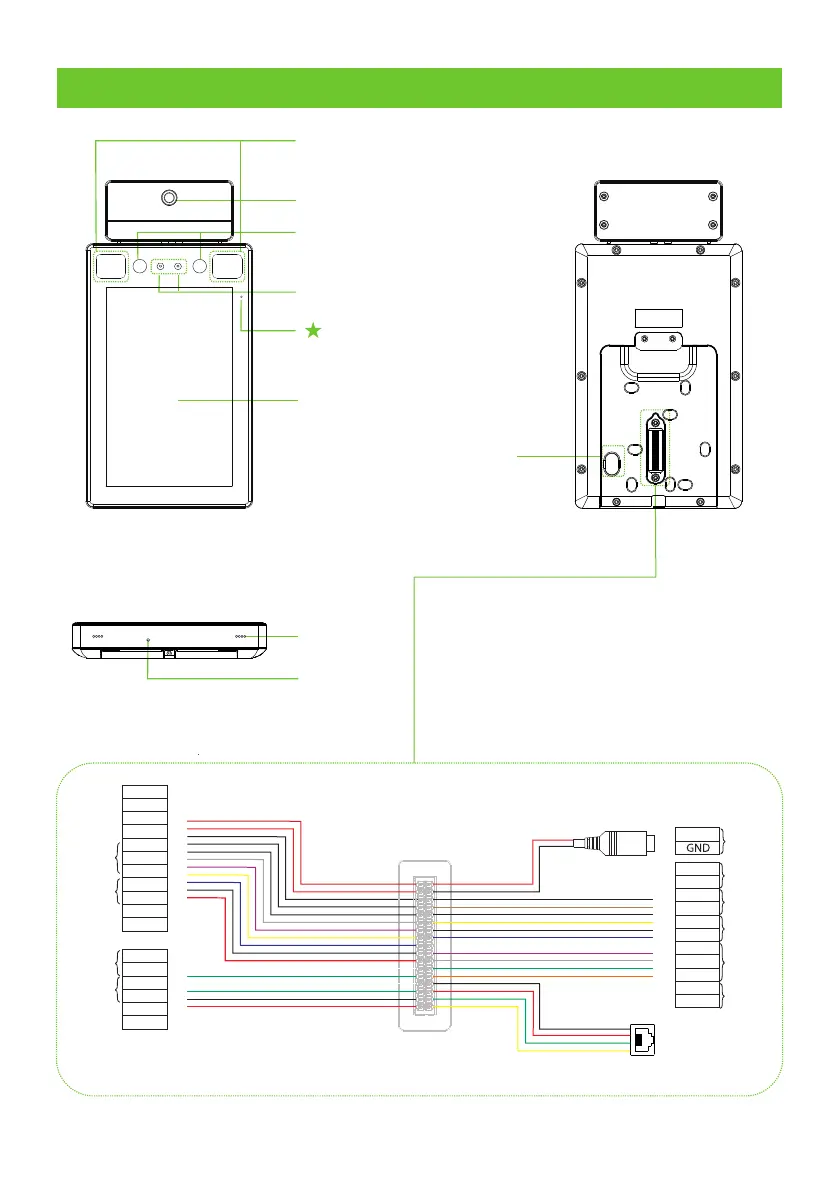

1 Overview
8-inch Touchscreen
Camera & Palm Modules
Speaker
Reset Button
Flash
Exit
button
Auxiliary
input
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
Alarm
Lock
Sensor
+12V
Power
GND
INWD0
INWD1
Wiegand
In
Wiegand
Out
12V
GND
WD0
WD1
Network interface
RS232
RS485
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
Power
interface
Tamper Switch
Near-infrared Flash
Thermal Imaging Temperature
Detection Module
Microphone (Optional)
