ZKTeco ProFace X Quick Start Guide

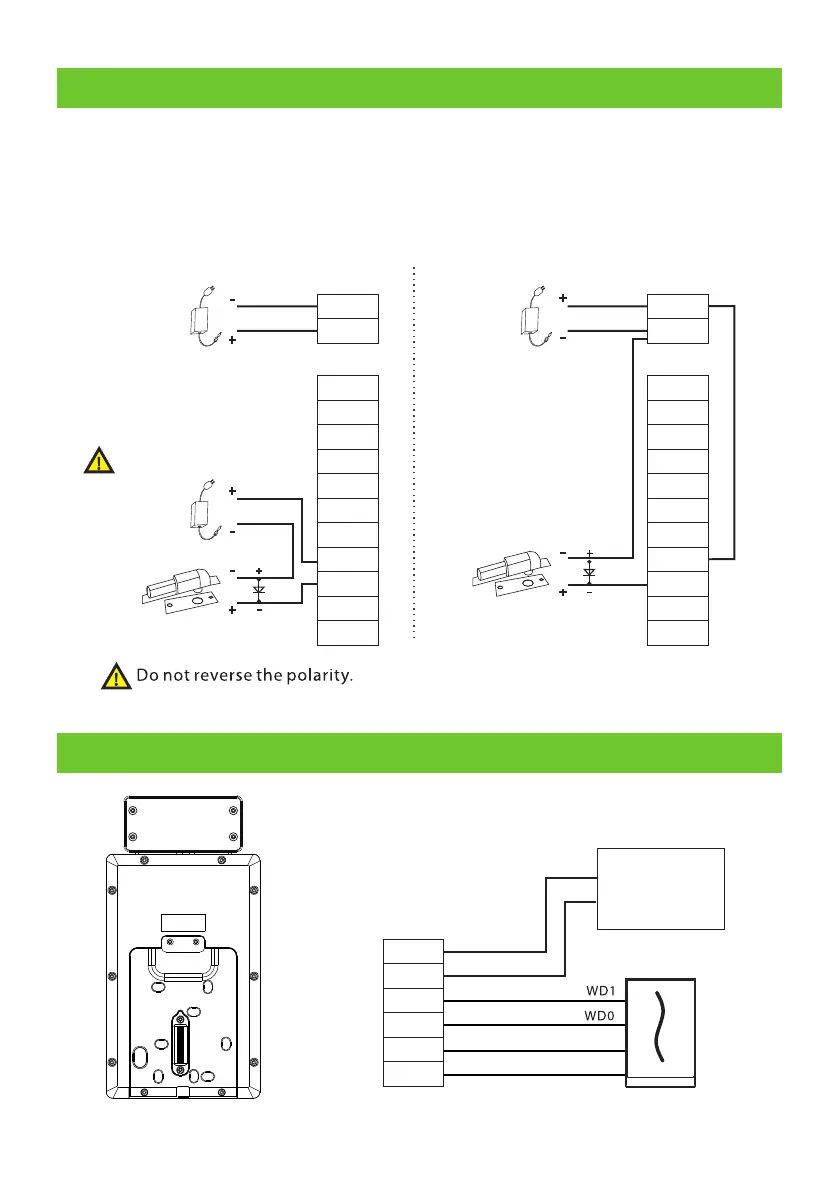

6 Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock.
The NO LOCK (normally unlocked when the power is on) is connected with 'NO' and 'COM' terminals,
and the NC LOCK (normally locked when the power is on) is connected with 'NC' and 'COM' terminals.
Take NC Lock as an example as shown below:
1) Device not sharing power with the lock
Normally Closed Lock
DC12V
DC12V
2) Device sharing power with the lock
+12V
GND
FR107
FR107
Normally Closed Lock
GND
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
DC12V
+12V
GND
GND
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
7 Wiegand Reader Connection
Access Controller
+12V
GND
Wiegand Reader
INWD0
INWD1
12V
GND
WD0
WD1
Maximum input is 30V 3A
6

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
