ZKTeco ProFace X Quick Start Guide

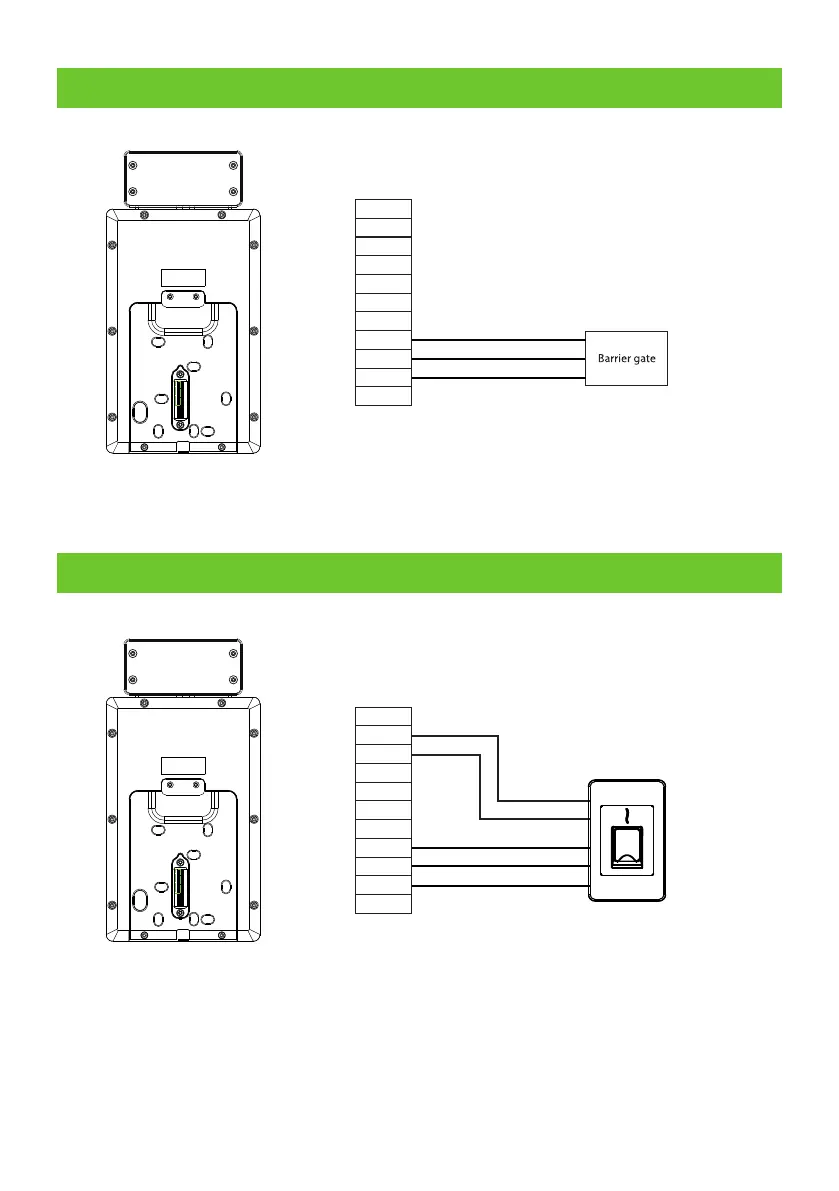

8 Barrier Connection
9 RS485 Connection
+12V
GND
GND
485+
485-
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
485 reader
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader, separately, but cannot
be connected to the gate and reader at the same time.
7

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
