Installation Diagram
2
Installation Procedure
1
Door Properties
Measure the Door Thickness
A.
Measure the thickness of the door and select the appropriate Spindle length. For further
details, please refer the table on Page 1.
Check the Door Opening Direction
B.
The position of the handle is determined by the opening direction of the door. Below is
the graphical representation of the door opening direction in reference to your position
outside the room.

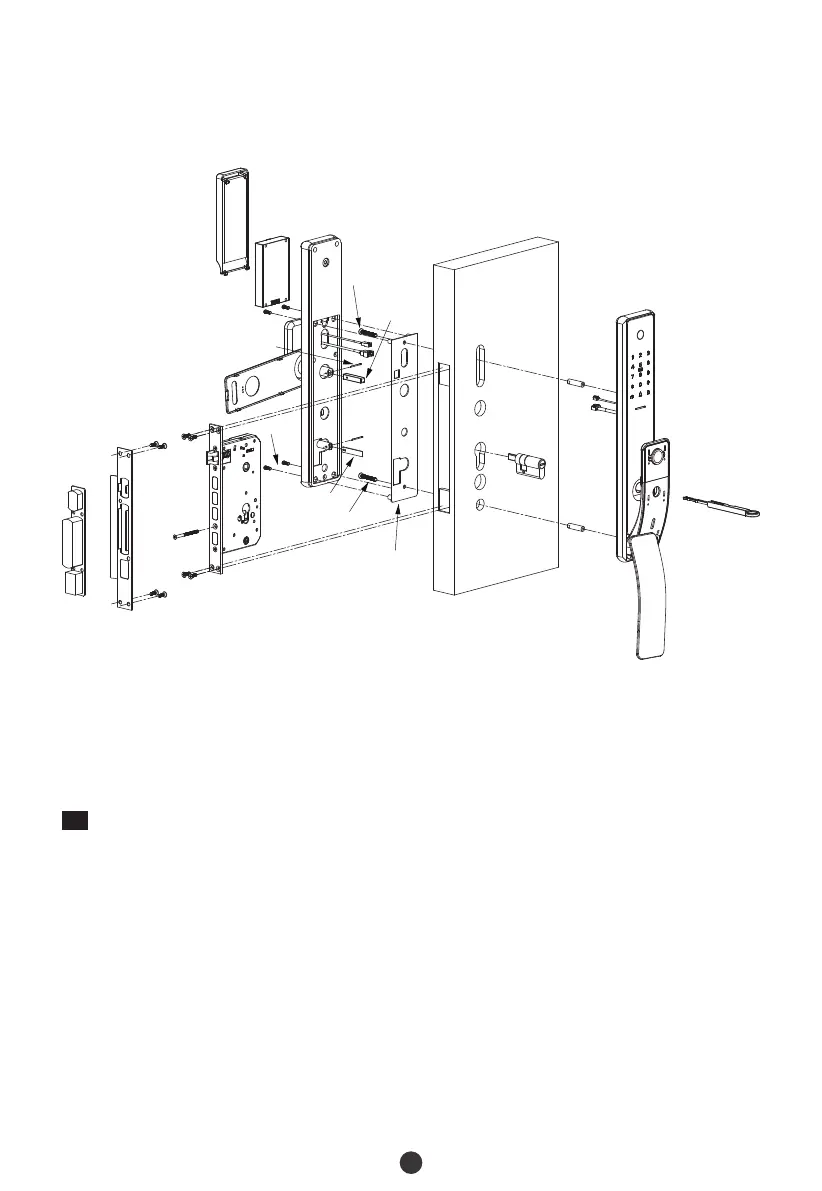

Metal Pin
Outdoor Unit
Stud
Keys
Screw A
Strike Plate and Box
Mortise
Screw D
Mounting Plate
Hidden Cover
Metal
Pin
Screw B
OLED Screen
Door
Indoor Unit
Lithium Battery
Cylinder
Front Handle
Cover
Screw C
Screw C
Spindle A
Screw A
Screw D
Spindle B
To Next Page
