4
4

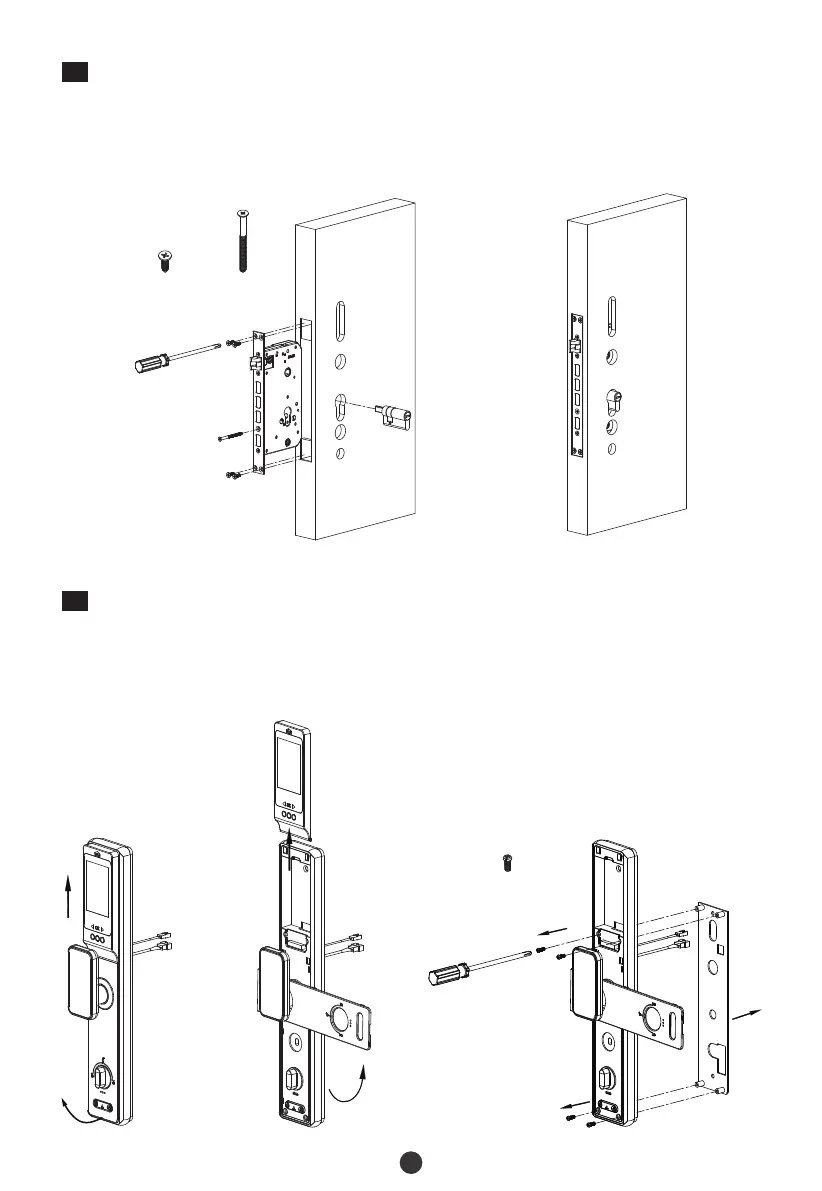

Uninstall the OLED Screen and Mounting Plate
Uninstall the OLED screen by pushing up, then uncover the hidden cover from the
bottom of indoor unit.
Uninstall the screw D and take the Mounting Plate off the indoor unit.
1)
2)
3
Install Mortise and Cylinder
Put the Mortise into the hole that was drilled, and secure the Mortise with Screw A.
Insert the Cylinder into the Mortise ( the front sides and back sides) and secure it with
Screw B.
1)
2)
Front
Screw A Screw B
Front
Screw D
To Next Page
