User Manual
11

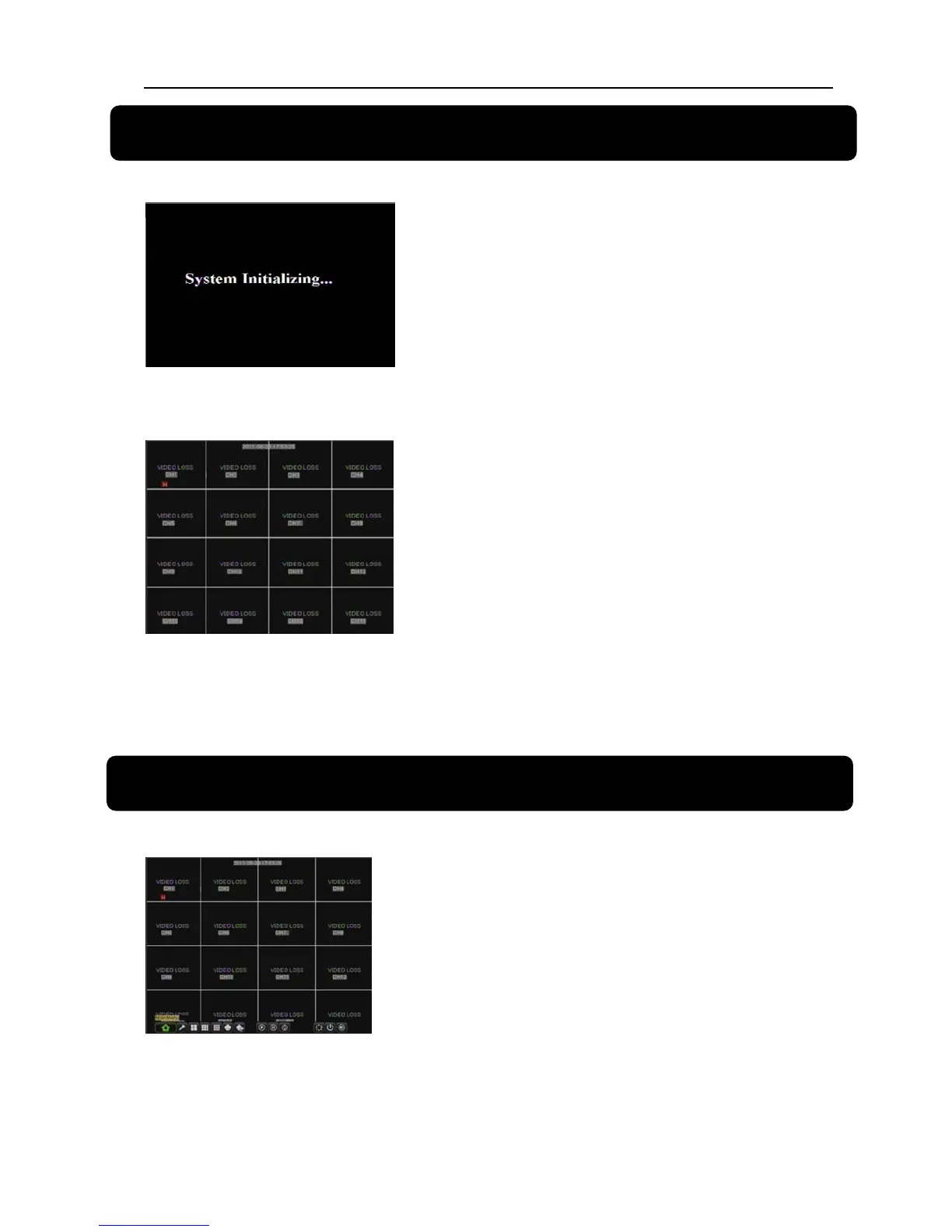

Chapter 4: DVR Boot up
4.1 System Initialization
Picture 4-1
4.2 Live screen
Picture 4-2
Note: When internal HDD is not connected or an error occurs, the character “H” will appear on the
first channel of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm,
please enter into [Device manageAlarm setting] to set HDD loss, HDD space not enough and alarm
output to “off”.
Chapter 5: DVR Menu
5.1 Pop-up Menu
Picture 5-1
Note: options of the Pop-up menu will differ depending on different parameter setting and
application environment.
After connecting the Power cable of DVR to wall
outlet and pressing the Power button on the front panel,
you will enter into the system initializing screen shown as
Picture 4-1
After finishing initialization the system will enter into Live
screen. Picture 4-2 is the 16-split display defaulted by system,
which is showing no video input status. Once there are video
inputs, the screen will display live images from the cameras. In
Live mode, if you use the mouse to double-click the live image
of any channel, the image will be maximized to full screen, by
double-clicking again, image will be come back to 16-split
display mode; clicking the right button of the mouse will enter
into Pop-up Menu; clicking the left button of the mouse allows
you select menu items; and clicking any area outside the menu
allows
menu.
After finishing system initialization, click right key of
mouse on main interface mode to enter into Pop-up
Menu. Now you could perform parameter setting and
operate on Main Menu, Multi-Pics, PTZ, PIP, Rec.
Search, Mute, Manual record, Start Rolling, Start Cruise
and Vo Switch etc.
