Zodiac T3 - T3 Parts Diagram and List

Page 12
ENGLISH
Zodiac
®
T3
®
Pool Cleaner
|
Owner’s Manual

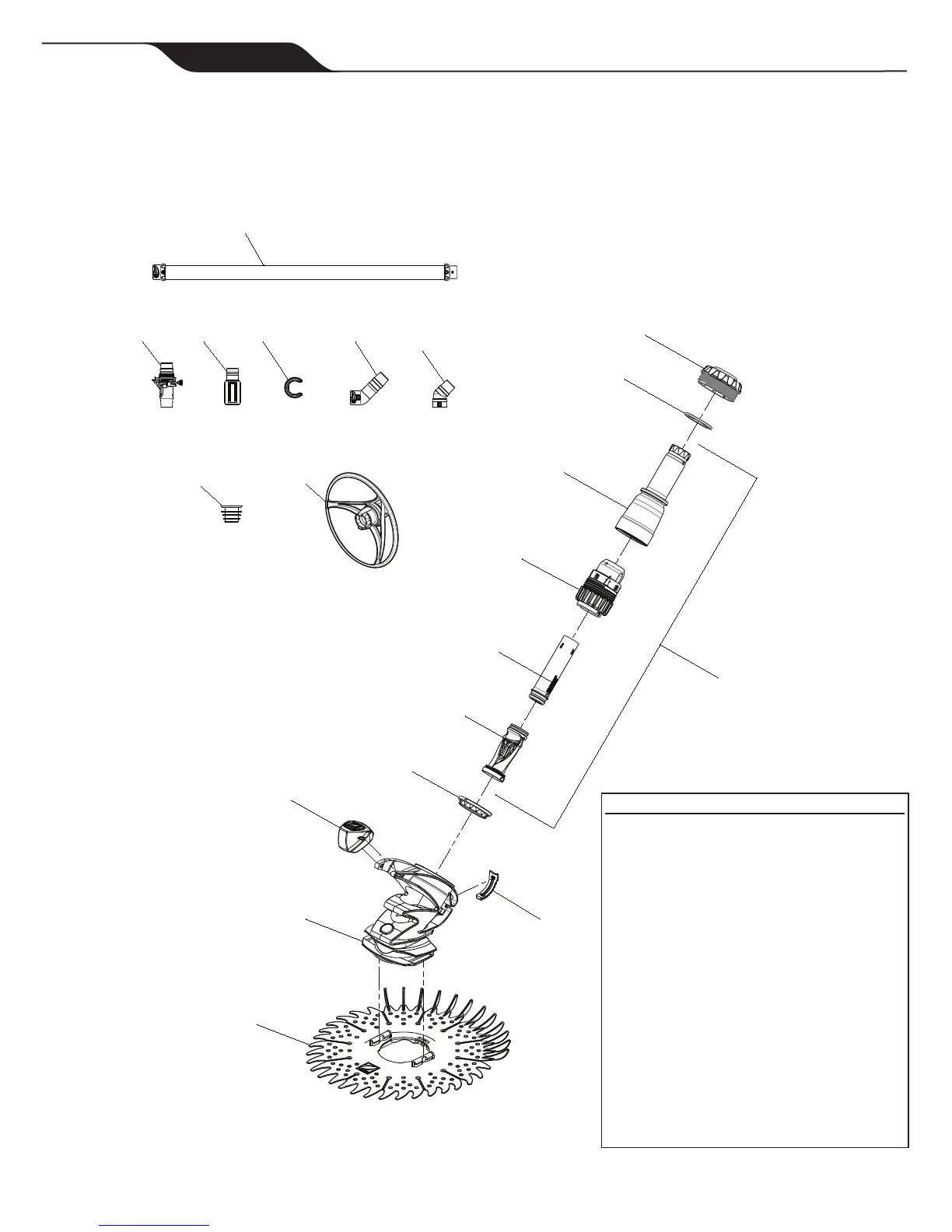

T3 Parts Diagram
No. Part # Description Qty
1 R0541100 T3 Handnut 1
2 R0542300 T3 Washers (Upper and Lower) 1
3 R0541000 T3 Engine 2
4 R0542100 T3 Outer Extension Tube 1
5 R0542000 T3 Cup Assembly 1
6 R0542200 T3 Inner Extension Tube 1
7 X73010 Duralife Diaphragm 1
8 R0541600 T3 Float 1
9 R0541800 T3 Bumper 1
10 R0541200 T3 Body 1
11 R0541400 T3/B3 Disc 1
12 R0527800 Twist-Lock Hose-1 Meter
Blue/Gray (12 pack) 1
13 R0527700 Twist-Lock Hose-1 Meter Blue/Gray 1
14 R0527400 FlowKeeper™ Valve 1
15 R0527500 Zodiac Flow Gauge 2
16 R0542600 Universal Hose Weight, Blue 1
17 R0532400 Twist-Lock 45° Elbow, Extended 1
18 R0532500 45° Weir Elbow (EVA) 1
19 R0527600 In-ground Valve Cuff 1
20 R0541900 Wheel Deflector, Hose Mount, Blue 1
1
2
4
5
6
7
2
9
8
10
11
3
12, 13
14 15
16
17 18
19 20
21
14 15 16 17
18
19
20
12, 13
