Installation

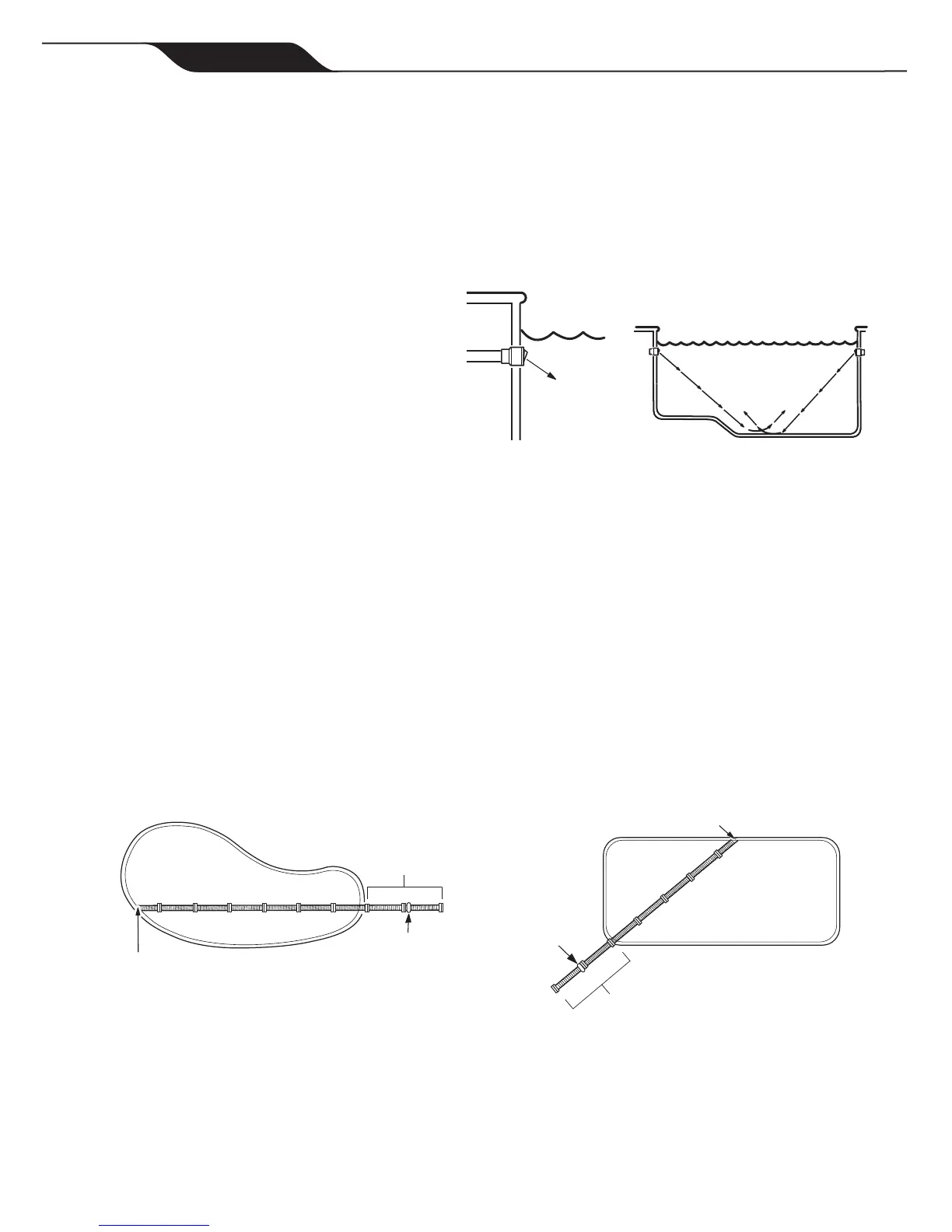

Prepare the Pool
1. Manually vacuum the pool if excessive debris is present,
and make sure the pool filter and pump basket are clean.
2. Close the pool main drain line.
3. Adjust the return lines to blow downward to
ensure complete cleaning coverage.
• Loosenthefittinglockring
• Redirecttheeyeballdownward
• Retightenthelockring
If the return fitting cannot be adjusted, it MUST
bereplacedwithaZodiacreturnlinediverter[part#W90153for1½in.(3.8cm),#W90155for2in.
(5cm)or#W24100forpoolswithoutreturnfittings].
2 Hose
Sections
Skimmer or
Dedicated Suction
Cleaner Line
Hose
Weight
Skimmer or
Dedicated Suction
Cleaner Line
2 Hose
Sections
39" (1m)
from cleaner
Hose
Weight
39" (1m)
from cleaner
Assemble the Hose
The hoses are fitted with easy twist-lock connectors. Push and twist the connectors on each hose section until they
lock into position with a clicking sound.
1. Connect enough hose to reach the farthest point of the pool; then add two (2) hose sections.
2. Positionthehoseweightattheendofthefirsthosesection,about39in.(1m)fromthecleaner.

Zodiac T3 Specifications

General

Pool Type	In-ground
Warranty	2 years
Pool Surface	Concrete, tile, vinyl, fiberglass
Cleaning Coverage	Floor and walls
Power Source	Pool Filtration System
Weight	18.5 lbs
Type	Suction-side pool cleaner
