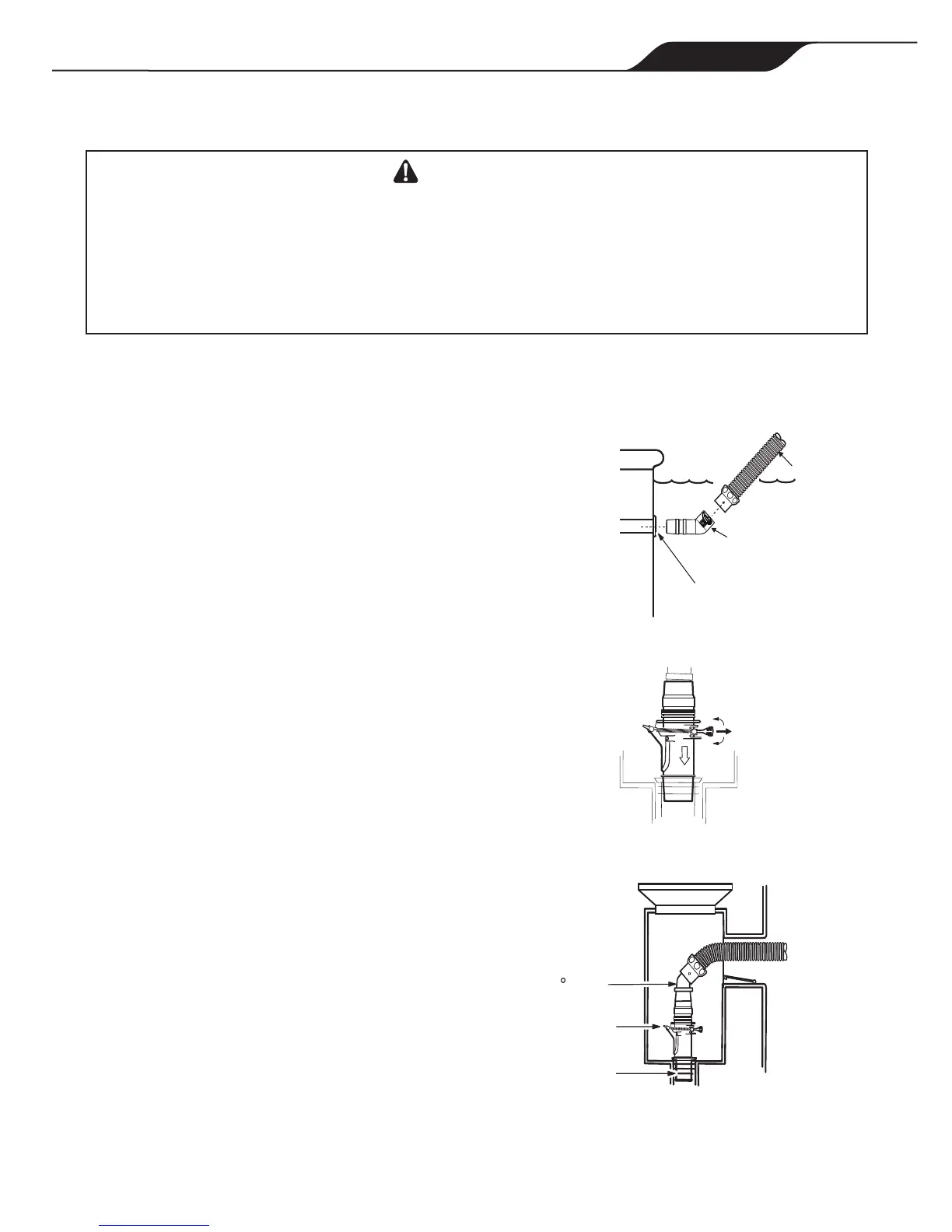

Connect the Hose
WARNING
RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED CAN RESULT IN SERIOUS IN-
JURY OR DEATH. READ THIS MANUAL IN ITS ENTIRETY BEFORE INSTALLING AND OPERATING THE
CLEANER. Ensurethatyourvacuumsuctionttingsinstalledinyourpoolforconnectionofyoursuction-side
poolcleanerarecertiedasbeingcompliantwithapplicablesafetystandardssuchasIAPMOSPS4.Donot
blockthesuctionttingsinthepool,thesuctionopeningonthecleaner,orthecleanerhoseswithanypartof
yourbody.Donotexposeyourhair,looseclothing,jewelry,etc.toanysuctionoutletttingsinthepool/spaor
on the cleaner.
Turn on the filtration system and fill the hose with water by placing the end in front of a return inlet until it is flooded.
Turn off the pump.
Dedicated Cleaner
Line with Safety Vac Lock
(not included with cleaner)
Twist-lock
Elbow
Hose
FlowKeeper Valve
Adjustment
45 Elbow
FlowKeeper
Valve
Valve Cuff
To connect to a dedicated suction line:
1. Attachthemaleendofthehosetothe
twist-lock elbow.
2. Connect the elbow to the safety vac wall fitting.
3. Angletheelbowupwardtowardsthewatersurface
(see diagram).
To connect to a skimmer:
The FlowKeeper™ valve must always be used in single
skimmer installations. The valve regulates flow to ensure the
pool pump and cleaner run properly. It is pre-set at the factory
tooptimizetheperformanceofthecleaner,butoffersthree(3)
settings to adjust the flow. The lower the setting number, the
lower the flow. To adjust, pull the handle and move setting up or
down. The red tab can be used to open the valve and stop the
cleaner.
If the pool has more than one (1) skimmer, connect the hose
to the one (1) closest to the pump.
The parts used to connect the hose and the sequence in
which they are installed depend on the type of skimmer.
1. Removetheskimmerbasket.
2. Insert the valve cuff and connect the FlowKeeper with the
arrow pointing down towards the bottom of the skimmer.
3. Choosethefittingcombinationthatbestsuitsthe
skimmer to complete the connection. Slide the
45°elbowovertheFlowKeepervalve
and the male end of the hose over the elbow,
or slide the hose directly onto the FlowKeeper valve.

Zodiac T3 Specifications

General

Pool Type	In-ground
Warranty	2 years
Pool Surface	Concrete, tile, vinyl, fiberglass
Cleaning Coverage	Floor and walls
Power Source	Pool Filtration System
Weight	18.5 lbs
Type	Suction-side pool cleaner
