FRANÇAIS
Zodiac
®
T5 Duo
®
Aspirateur de Piscine Côté Aspiration
|
Guide du Propriétaire

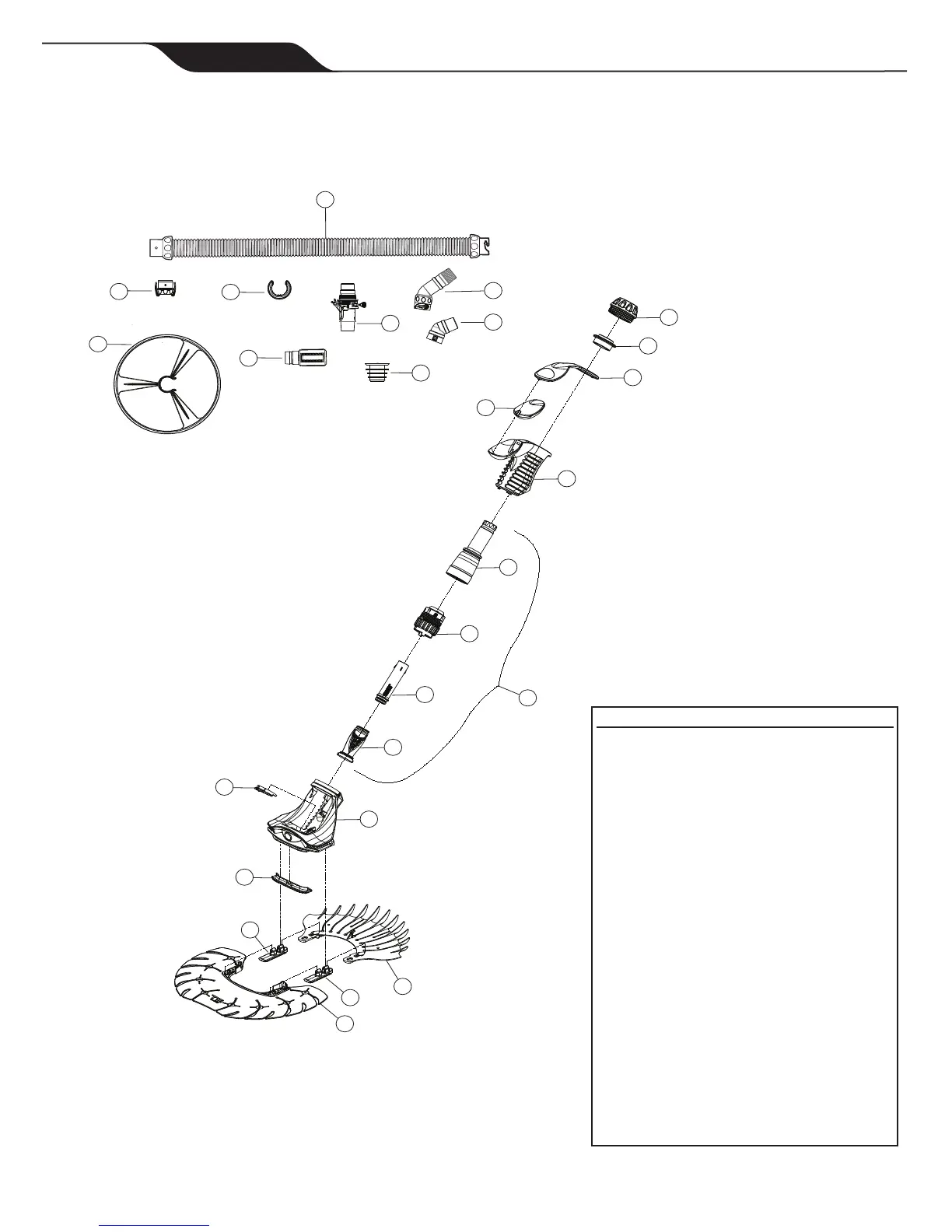

Schéma des pièces du T5 Duo
18
17
5
3
12
15
23
24
16
20
19
22
21
2
3
4
6
7
8
9
1
10
11
13
15
14
No. No. de pièce Description Qté
1 R0541000 Ensemble moteur T-5 1
2 R0563000 Écrou manuel T-5 1
3 R0509200 Rondelles de butée T-5 2
4 R0563100 Bouchon principal du boîtier T-5 1
5 R0509000 Flotteur T-5 1
6 R0563200 Couvercle principal du boîtier T-5 1
7 R0542100 Tuyau d'extension externe T-5 1
8 R0542000 Ensemble coupelle T-5 1
9 R0542200 Tuyau d'extension interne T-5 1
10 X73010 Membrane T5 1
11 R0563300 Ensemble boîtier avec butoir T-5 1
12 R0563400 Plaque de protection T-5 1
13 R0563500 Disque avant T-5 1
14 R0563600 Disque arrière T-5 1
15 R0563700 Talons T-5 2
16 R0527500 Jauge de débit Zodiac 1
17 R0526900 Connecteur rapide T-5 1
18 R0527800 Flexible à verrou tournant - 1 Mètre,
(emballage de 12)
1
19 R0527400 Fixation de robinet Flowkeeper™ 1
20 R0527600 Coude à fixation de robinet integ 1
21 R0532400 Coude à verrou tournant, 45°, étendu 1
22 R0532500 Coude à déversoir 45° (EVA)
23 R0542600 Poids du flexible universel 1
24 R0541900 Déflecteur articulé T-5,
Fixation du flexible 1
