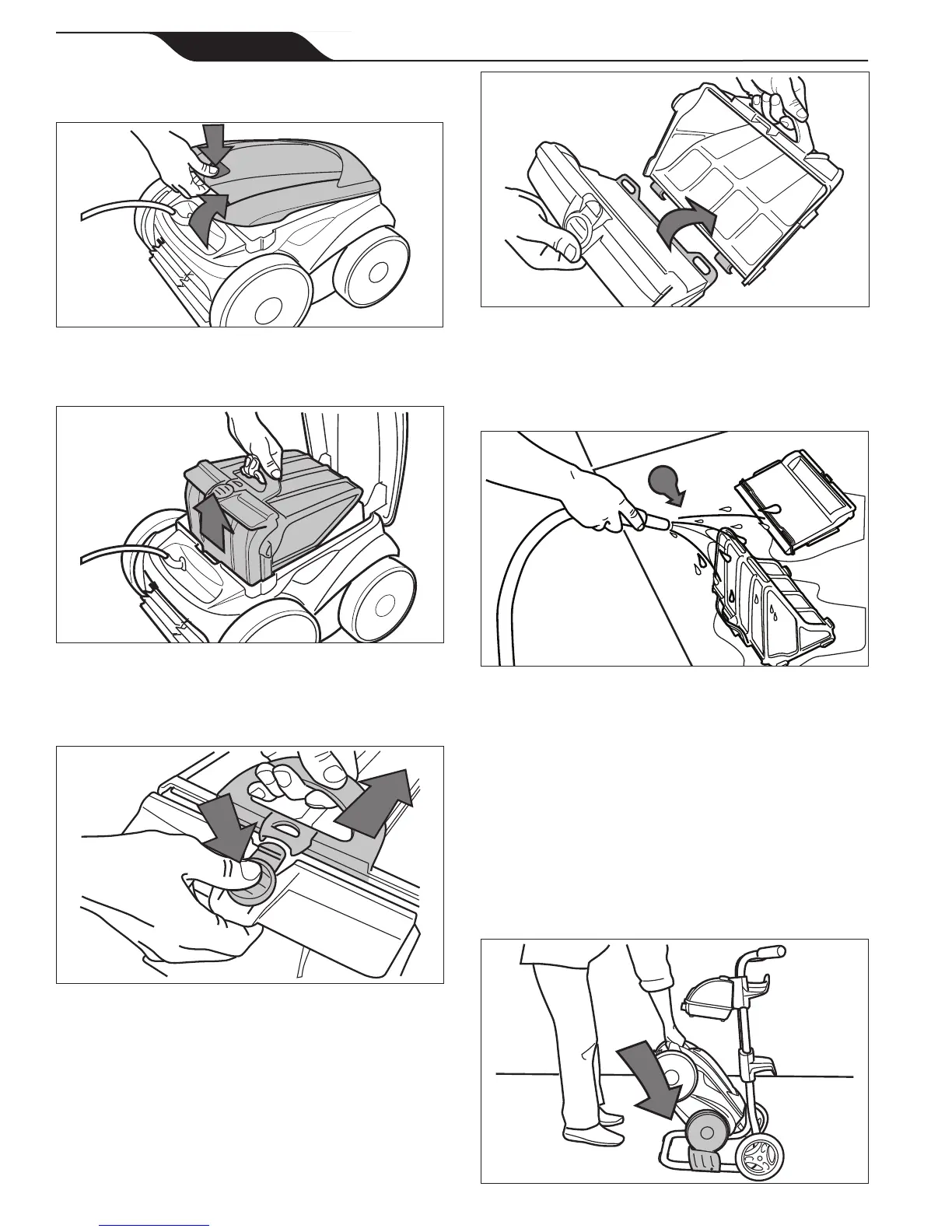

Page #14 background image
until it is secured in the vertical position. Refer
to Figure 23.
2
1
Figure 23. Lift Cleaner Cover
6. Remove the lter assembly from the body (3),
as shown in Figure 24.
3
Figure 24. Remove Filter Assembly
7. Push the quick release button on the canister
assembly (4) and pull open the lter assembly
(5). Refer to Figure 25.
4
5
Figure 25. Open Filter Assembly
8. Separate the lter canister from the lter
support (6), as shown in Figure 26.
6
Figure 26. Remove Filter Canister
9. Empty all debris from the lter canister, then
rinse the canister, the lter support, and the
cleaner under water or using a hose.
Refer to Figure 27.
Figure 27. Wash Filter Canister
7
5.2 Cleaning and Storing the Cleaner
The cleaner must be cleaned regularly using slightly
soapy clean water, do not use solvents such a
trichloroethylene or its equivalent. Rinse the cleaner
generously using clean water. Do not let your cleaner
dry in direct sunlight near the pool. The cleaner must be
stored on its own caddy, so that it dries quickly.
1. Place the rear wheels on the caddy side wedges
as shown in Figure 28.
1
Figure 28. Position Cleaner on Caddy
Page 14
ENGLISH
Zodiac
®
Vortex 3, Vortex 4 Robotic Pool Cleaner
|
Owner's Manual
