Assemble the Transport Caddy
1. Unscrew the handnut from the base (Figure 2).

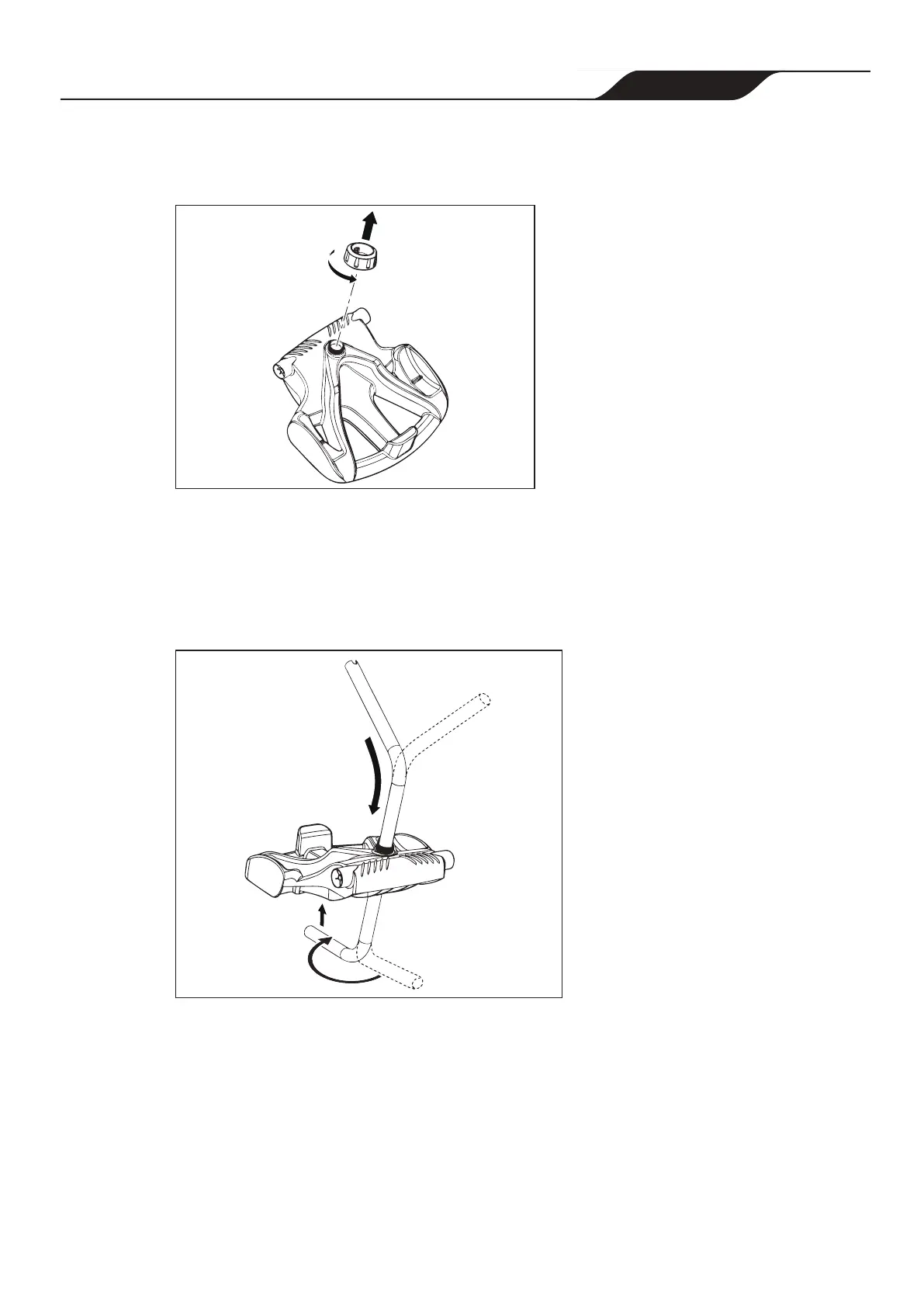

Figure 2. Remove Handnut from Base Unit
2. Insert the metal handle frame tubing into the base with notch end at the top, then
rotate so the bends are away from you. (Figure 3).
3. Push base down (Figure 3) so the metal handle frame is seated in the recess on the
underside of the base.
Figure 3. Connect Metal Frame to Base Unit
4. Slide the handnut over the tube and twist to tighten onto base unit (Figure 4).
