38 ZOLL AED PLUS Administrator’s Guide

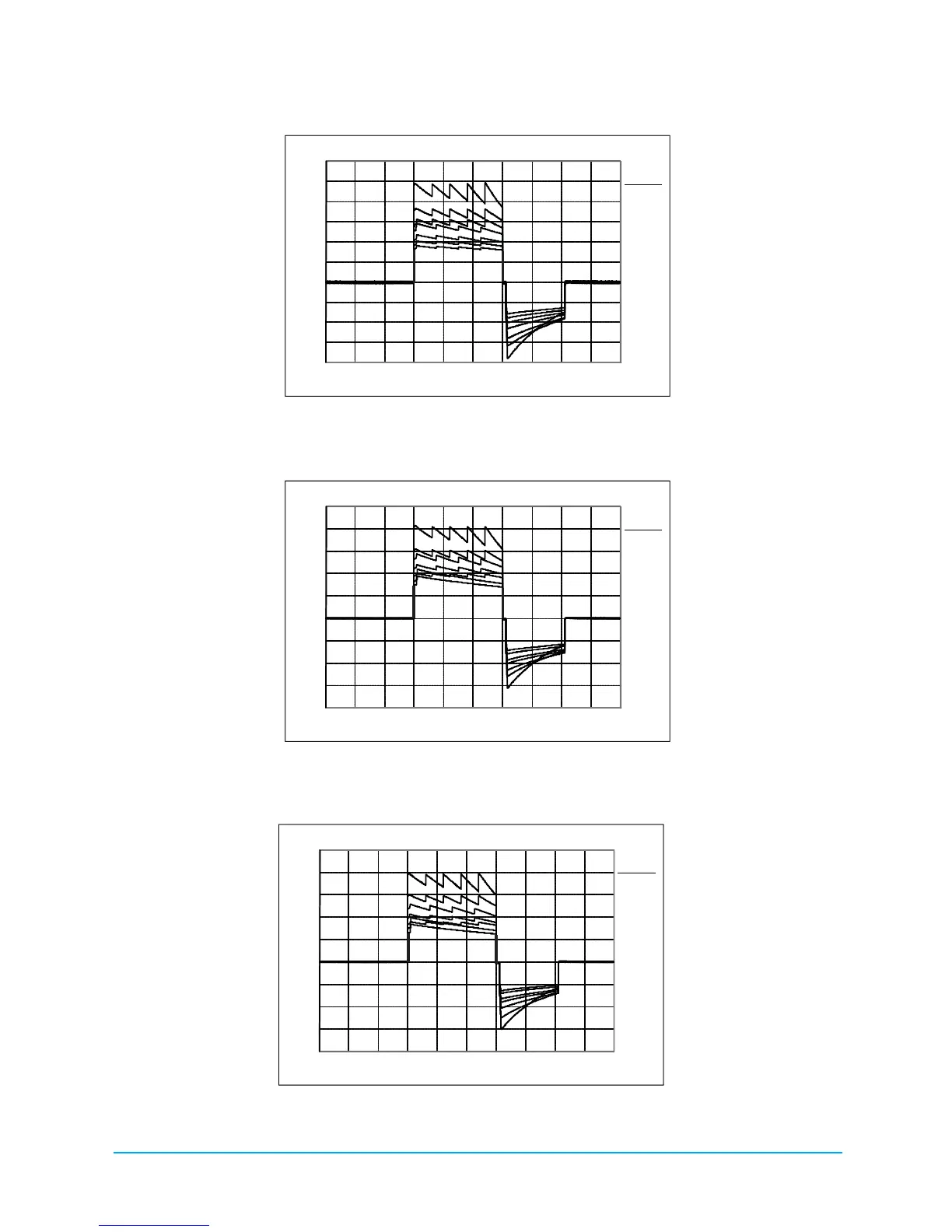

Figure 11: Rectilinear Biphasic Waveforms at 120 joules
Figure 12: Rectilinear Biphasic Waveforms at 85 joules
-20
-15
-10
-5
0
5
10
15
20
25
30
0 2 4 6 8 10 12 14 16 18 20
Current (A)
Time (ms)
Patien t
Impedance
25ohms
50ohms
75ohms
100oh ms
125oh ms
150oh ms
175oh ms
-20
-15
-10
-5
0
5
10
15
20
25
0 2 4 6 8 10 12 14 16 18 20
Current (A)
Time (ms)
Patien t
Impedance
25ohms
50ohms
75ohms
100oh ms
125oh ms
150oh ms
175oh ms
-20
-15
-10
-5
0
5
10
15
20
25
0 2 4 6 8 10 12 14 16 18 20
Current (A)
Time (ms)
Patient
Impedance
25ohms
50ohms
75ohms
100oh ms
125oh ms
150oh ms
175oh ms
