ZOLL AED PLUS Administrator’s Guide 39

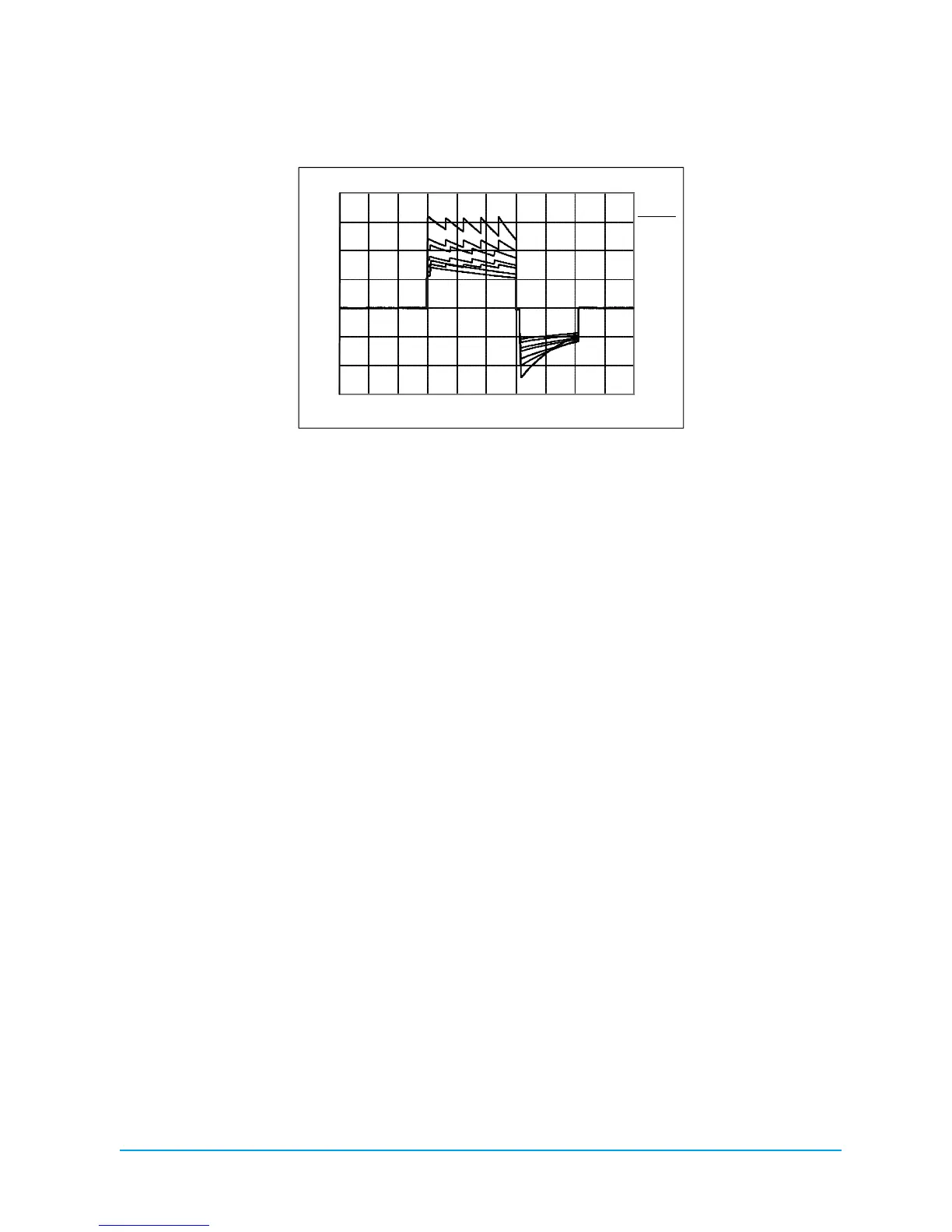

Figure 13: Rectilinear Biphasic Waveforms at 70 joules
Figure 14: Rectilinear Biphasic Waveforms at 50 joules
-15
-10
-5
0
5
10
15
20
0 2 4 6 8 10 12 14 16 18 20
Current (A)
Time (ms)
Patient
Impedance
25ohms
50ohms
75ohms
100oh ms
125oh ms
150oh ms
175oh ms
