V4™
Installation/User Guide
Drill Holes
• Do not drill into the V4 unit. This will void the warranty.
• Capture all drill chips during drilling operations. Do not allow chips to fall onto
equipment, furnishings, etc.

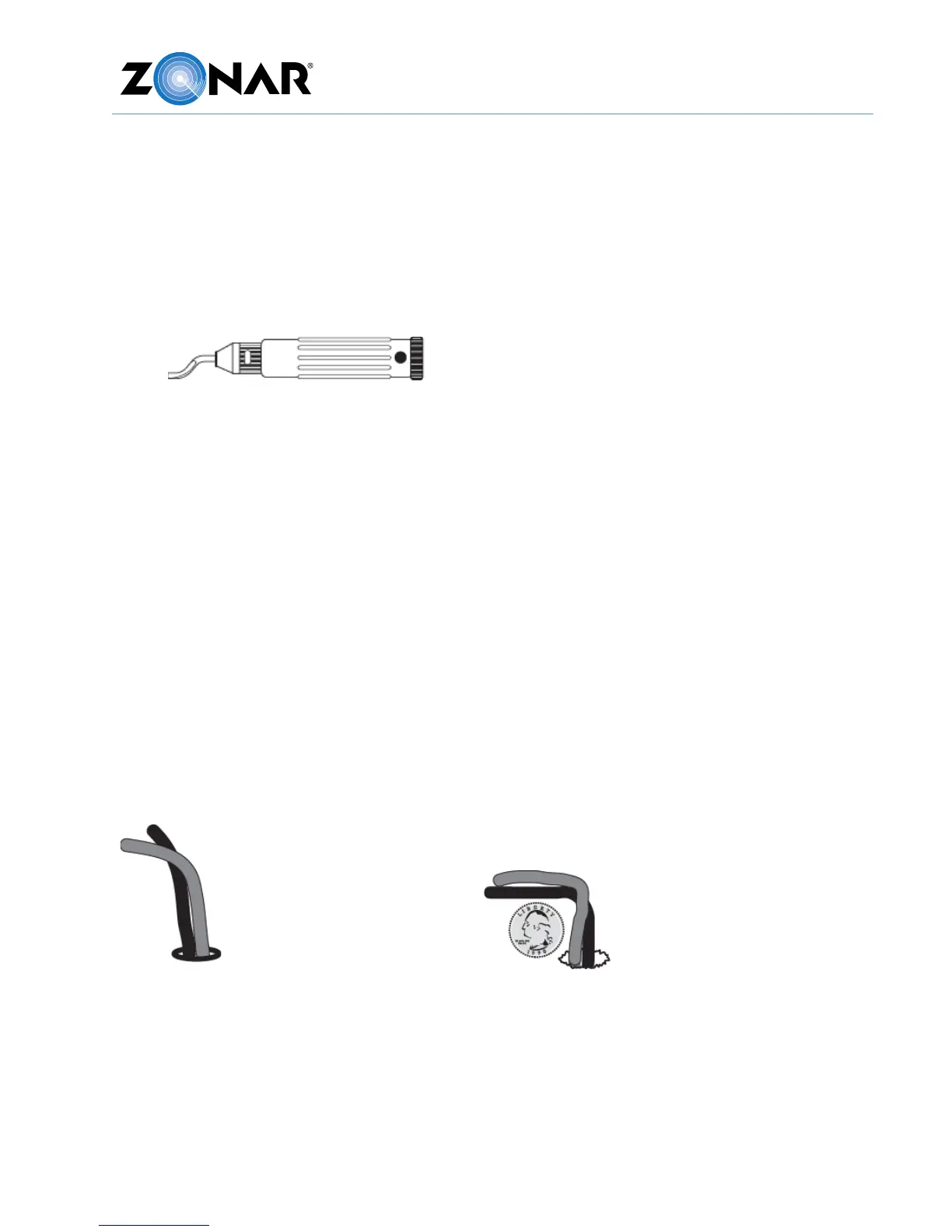

• Deburr all drill holes on both sides of drilled surface. The following is an example of a
deburr tool:
• All drill holes must have a rubber grommet or similar anti-chaffing system installed to
protect cable assemblies (e.g. plastic conduit).
• Seal all penetration drill holes which may pass rain water.
Cable Management
• Strain relieve and support all cable installations.
• Avoid sharp bends and tight radius installations of cables.
• Avoid moving components (for example, doors, steering shafts, handles, fans, etc.).
• Provide enough cable slack to allow for servicing of equipment (adequate service
loop)
• Avoid routing cables through doors, windows, and other pinch points.
• Avoid routing cables in high personnel traffic areas.
• Avoid routing antenna cables near radio and PA equipment.
Cable Management Examples
• Bend radius is adequate.
• Hole has grommet.
• Bend radius is too tight.
• Hole has sharp edges.
• Hole has no grommet.
