V4™

Installation/User Guide

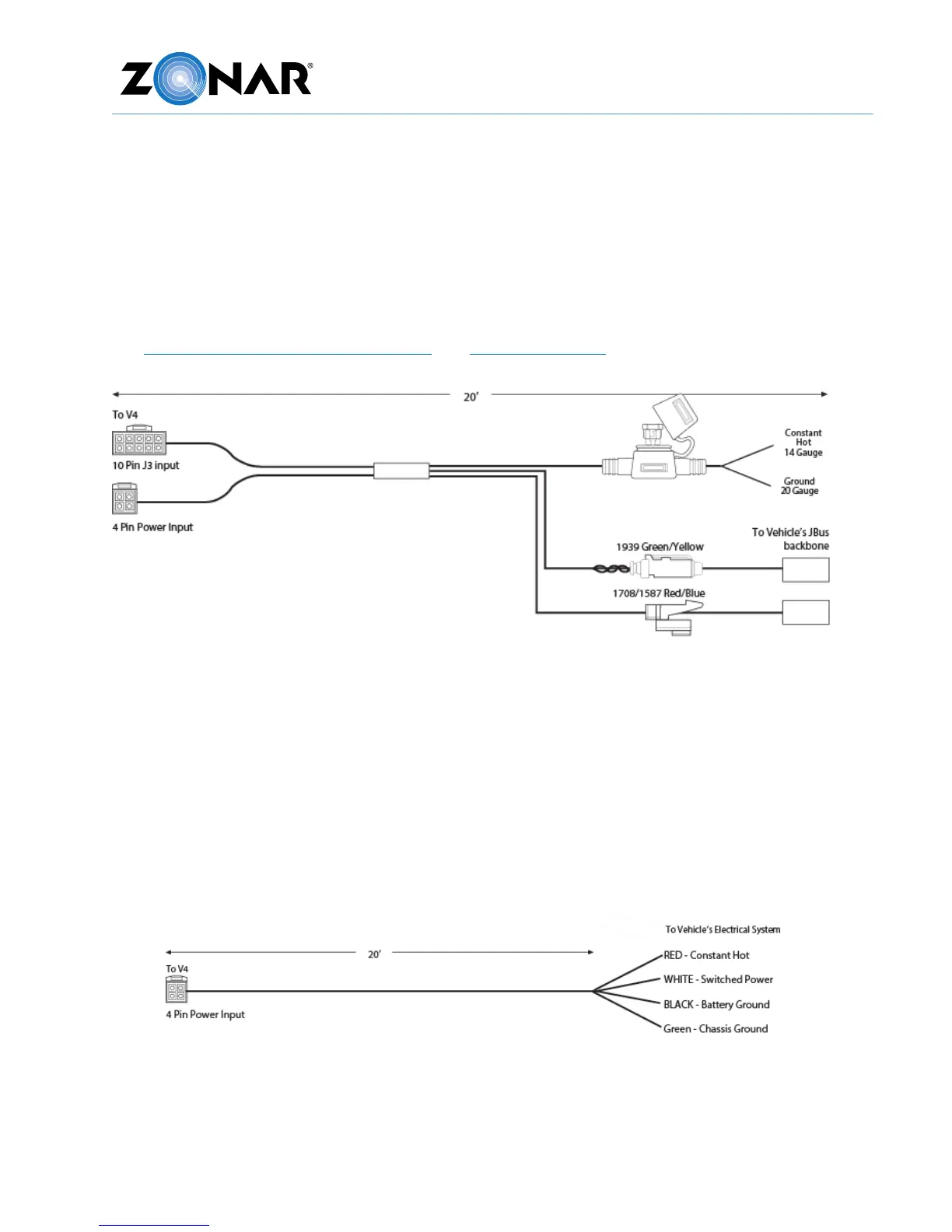

2-Pin Deutsch 500K Cable (Backbone)

Use this cable on heavy duty vehicles with SAE J1708/J1587 (older) or SAE J1939 (newer) data

buses. The cable connects to the data network backbone.

Note: This cable requires specific adapters dependent on vehicle make/model/year and

engine manufacturer. Contact Zonar Customer Care for additional information.

See 4 Pin Testing and Cable Management and Wiring Guidelines for procedures.

4 Pin, 4 Wire Power Cable

This cable is similar to the Pin, 3 Wire Cable but it adds a green chassis ground wire. This

power cable is only needed for vehicles equipped with negative side battery disconnect

switches (typically construction equipment).

This cable requires the vehicle to physically move at least 5 MPH for at least 100 feet to

properly complete new installation checkout. If this is not performed, GPS and discrete input

data will not be present in Ground Traffic Control until those thresholds are met.
