V4™
Installation/User Guide

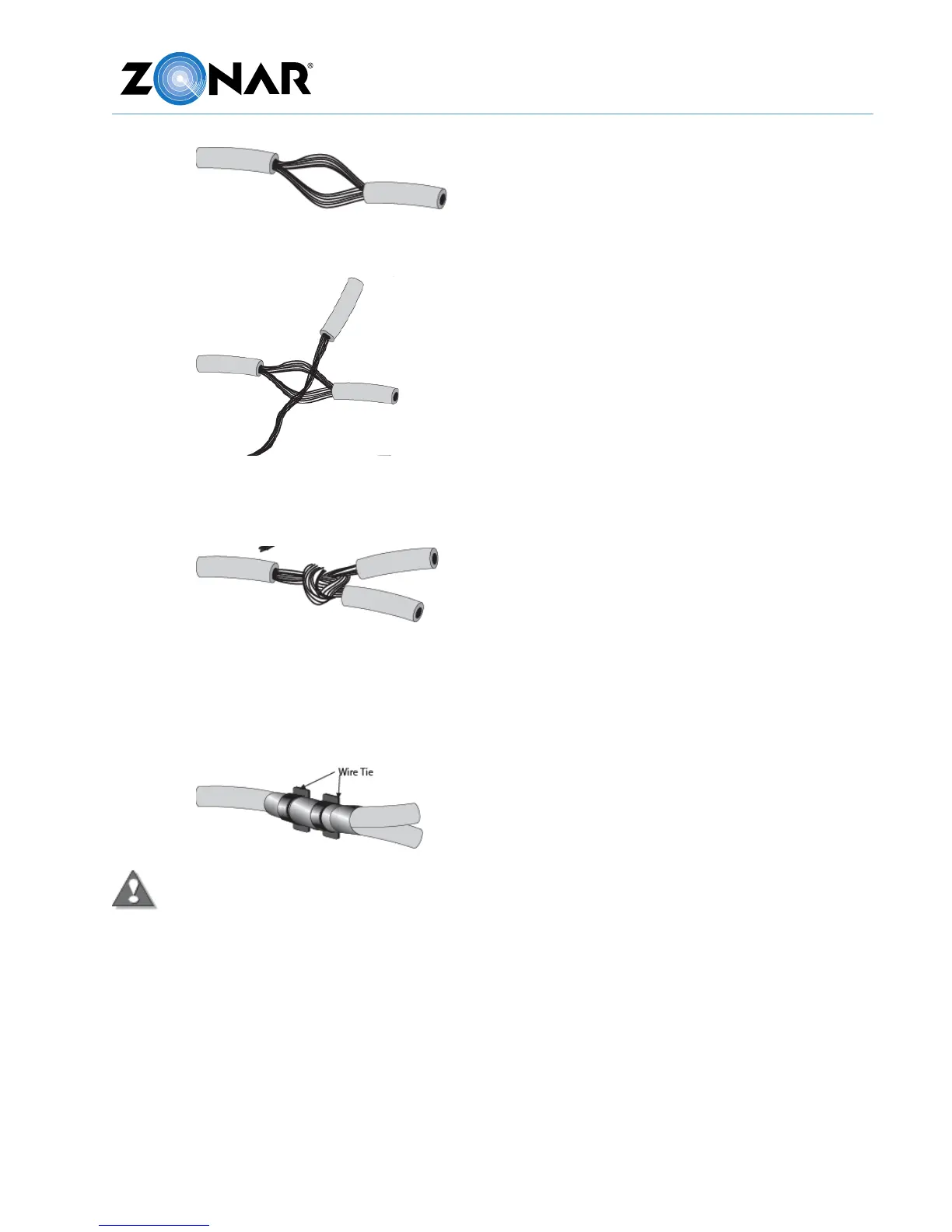

2. Strip 1” to 1 1/2” of insulation from the wire in the fused link to be installed.
3. Insert the wire from the fused link into the spread wire in the vehicle. Wrap around the
wire several times.
4. Cover the exposed wires with several wraps of electrical tape or mastic. Place one wire tie
over the electric tape over the exact location where the wires are 'wrapped' together.
Place another wire tie 1” to 2” from the first wire tie, to secure the two wires together and
as stress relief.
CAUTION: Zonar has approved two types of fuse taps. Use of other brands is not
authorized. Do not install these fuse kits in fuse panel locations greater than 10 amps.
• LitteFuse brand: Add-a-Circuit
• Bussman brand: Add-a-Fuse
