4-REAR WHELL COMPONENT
31
CHK
ADJ
NO. PART NO.
1 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 1
2 1271200-087000 KD150－U rear disc brake oil cup bracket 1

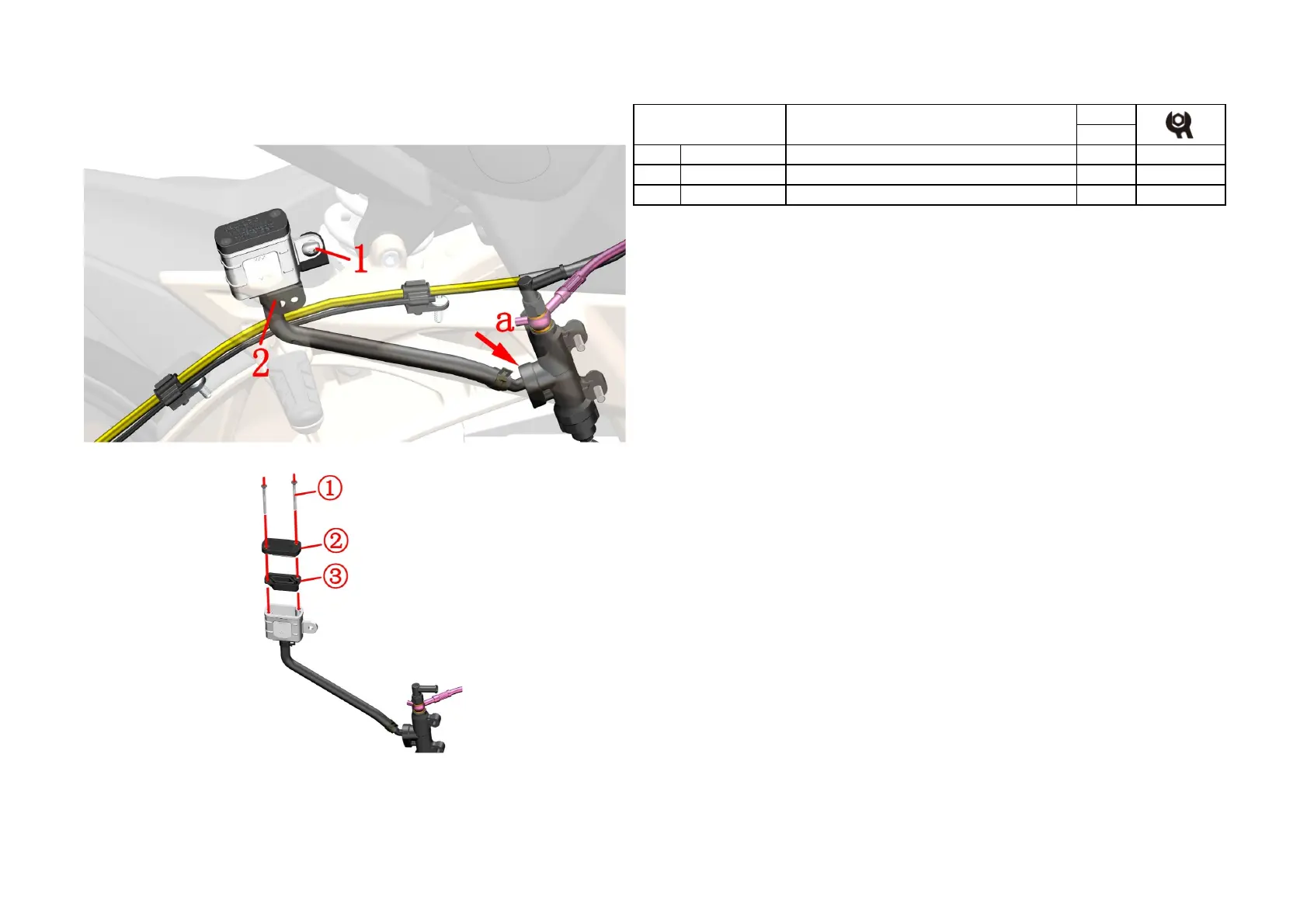

Fig.12 REAR WHELL
COMPONENT
Rear brake main pump adds brake fluid
PROCEDURE:
●Add disc brake liquid
Cover the right pedal bracket with a waterproof plastic bag to prevent the brake fluid from dripping onto the
paint and causing corrosion.
Using 4# inner hexagon socket remove the bolt⑴,then pull out the oil cup.
The oil cup should always remain above the oil tube interface "a", parallel to the ground. Avoid braking failure
caused by air getting into the oil circulation.
Disassemble bolt① with cross screwdriver.
Take off oil cup cap②, sealing gasket③.
Keep the top of oil cup parallel to the ground. Add DOT4 braking liquid. Ensure the liquid level is
between "UPPER" and "LOWER".
While reassemble, pay attention install sealing gasket③ in correct position and direction.
Step gently on the pedal constantly. Do not ride the motorcycle until the braking force is recovered.
CAUTION:
●Support the motorcycle well on flat ground before checking.
●Check regularly if the braking liquid surface is between "UPPER" and "LOWER".
●If liquid surface is below "LOWER", check the arrester status and confirm if the braking system is leaking.
●If the braking liquid is accidently swallowed, contact intoxication center or hospital immediately. If it gets into
the eye, wash it away with clean water then see the doctor.
●Keep the braking liquid far away from children and pets.
●Flush the oil cup directly with high pressure water is prohibited.
●Mixing water, dust, impurity and liquid of silicic acid or petrol series into the braking liquid is prohibited.
Otherwise, the braking system would be damaged.
