9-SURROUNDING COMPONENT
78
CHK
ADJ
NO. PART NO.
1 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 2
2 1271200-070000
－
U surrounding right upper bracket
1
3 1271200-072000 KD150－U surrounding left upper bracket 1
PROCEDURE:

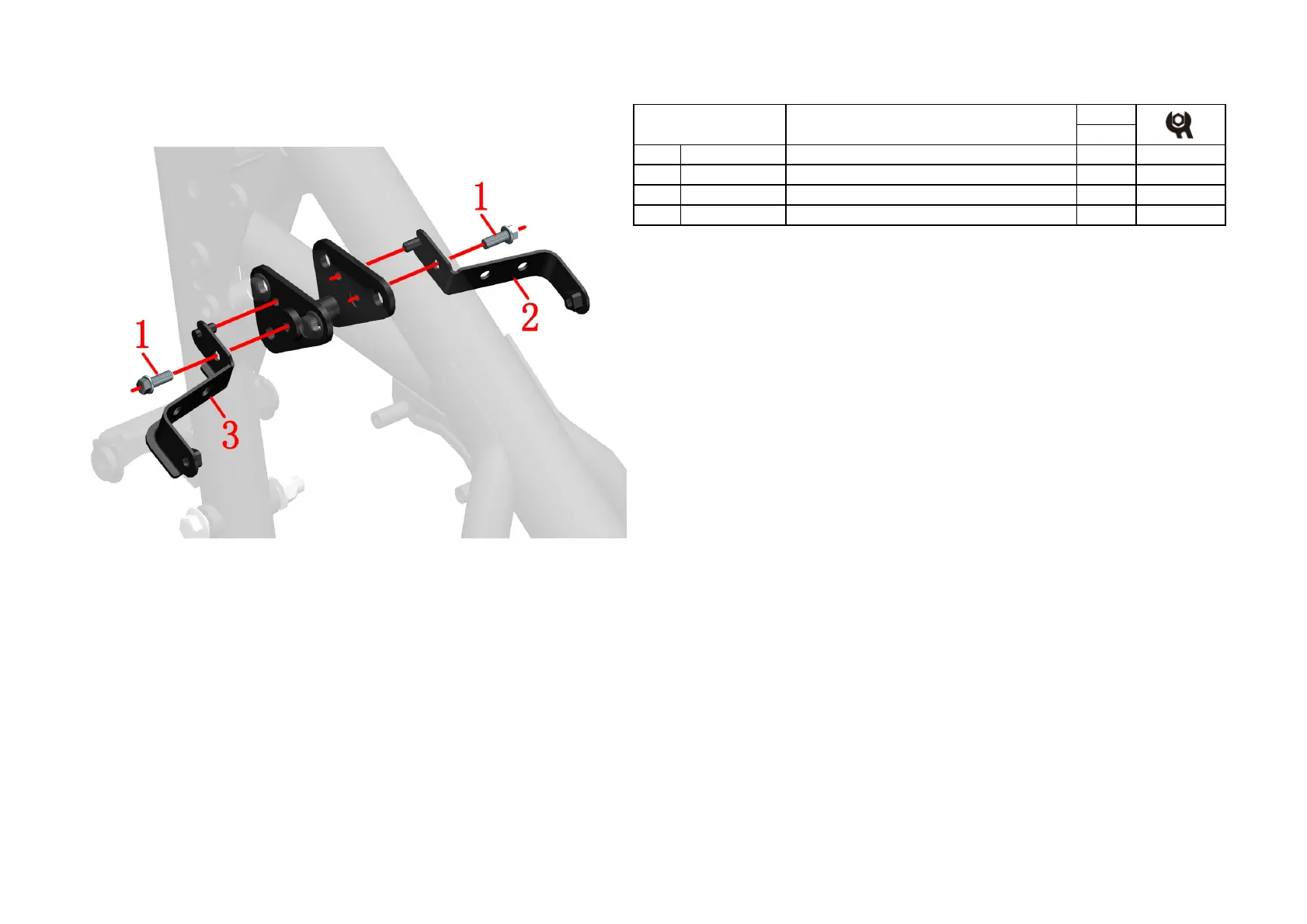

●Surrounding upper bracket
Using 8# sleeve remove bolt⑴,then take off the right upper bracket⑵ and the left upper bracket⑶.
CAUTION:
●The parts should be protected during the disassembly process.
●The cushion,side cover,fuel tank componet,etc. need to be removed in advance.
●When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening
the bolt.
Fig.4 SURROUNDING
COMPONENT
Surrounding bracket
To Next Page
