6-COOLING SYSTEM COMPONENT
39
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
2 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5
＋
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 2
－
GK middle trim panel of water tank
1
－
Water tank decorative cover component 3
PROCEDURE:
●Middle trim panel of water tank
Remove the left and right trim cover panel components and the left and right trim cover base plate components
in advance. Using 8# sleeve remove the bolt⑴ , remove the flanging bushing⑵ and buffer rubber⑶), and then
remove the trim panel⑷ in the middle of the water tank.
CAUTION:
●Pay attention to protect the material surface.
●Pay attention to the cable when taking out the trim panel in the middle of the water tank.
●Manipulation should start after the engine is completely cooled down.

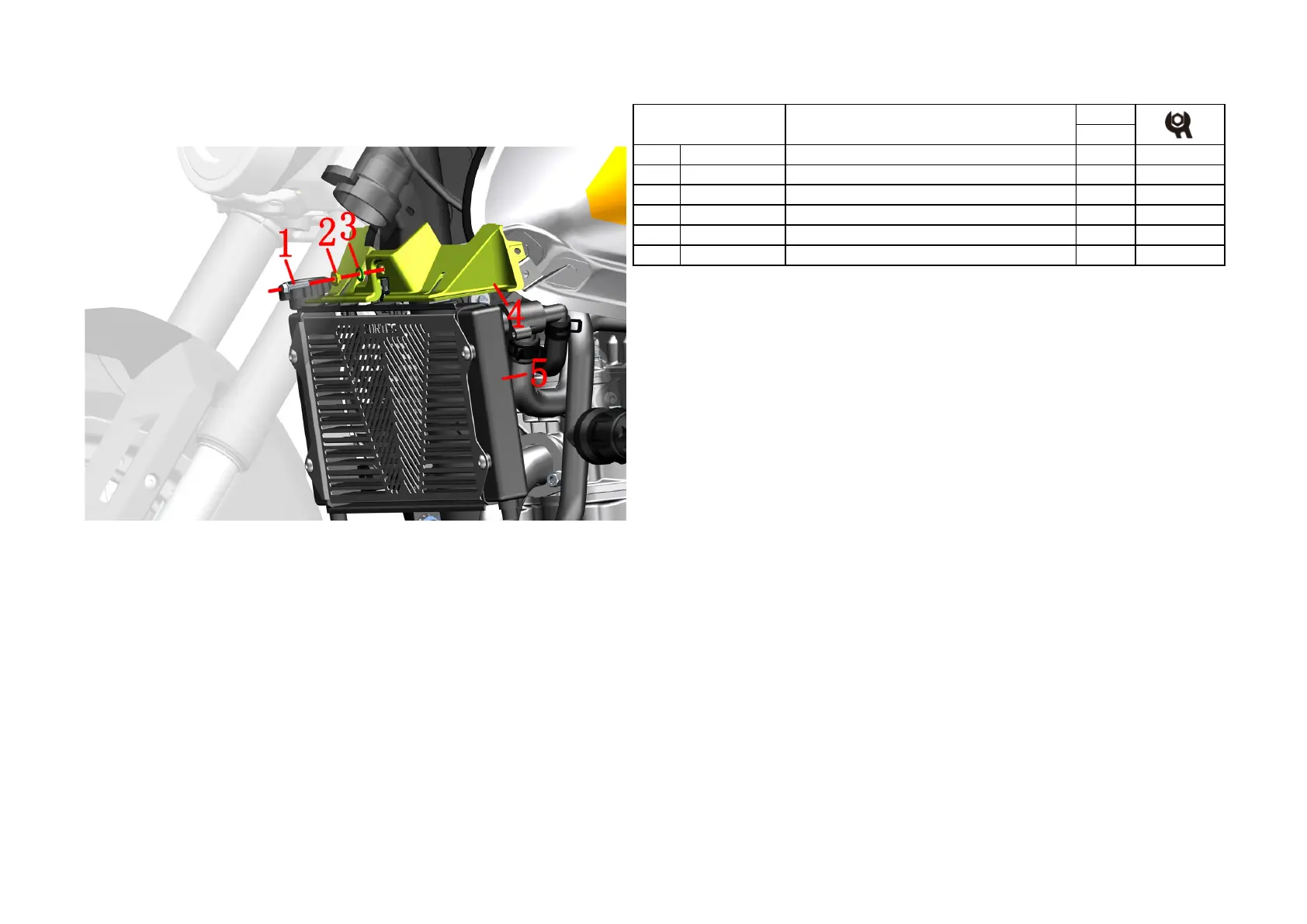

Fig.6 COOLING SYSTEM
COMPONENT
