6-COOLING SYSTEM COMPONENT
45
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 3
2 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 2
－
GK oil outlet pipe of engine
1
－
GK oil inlet pipe of engine
1
5 1051454-025000 9.8×2. 4 Hydrogenated nitrile rubber O-ring 4
6 1274300-022000 ZT350 oil cooler 1
－
R upper bracket of oil cooler
1
8 1251112-002093 M6×30 Hexagon flange bolts (color zinc) 1

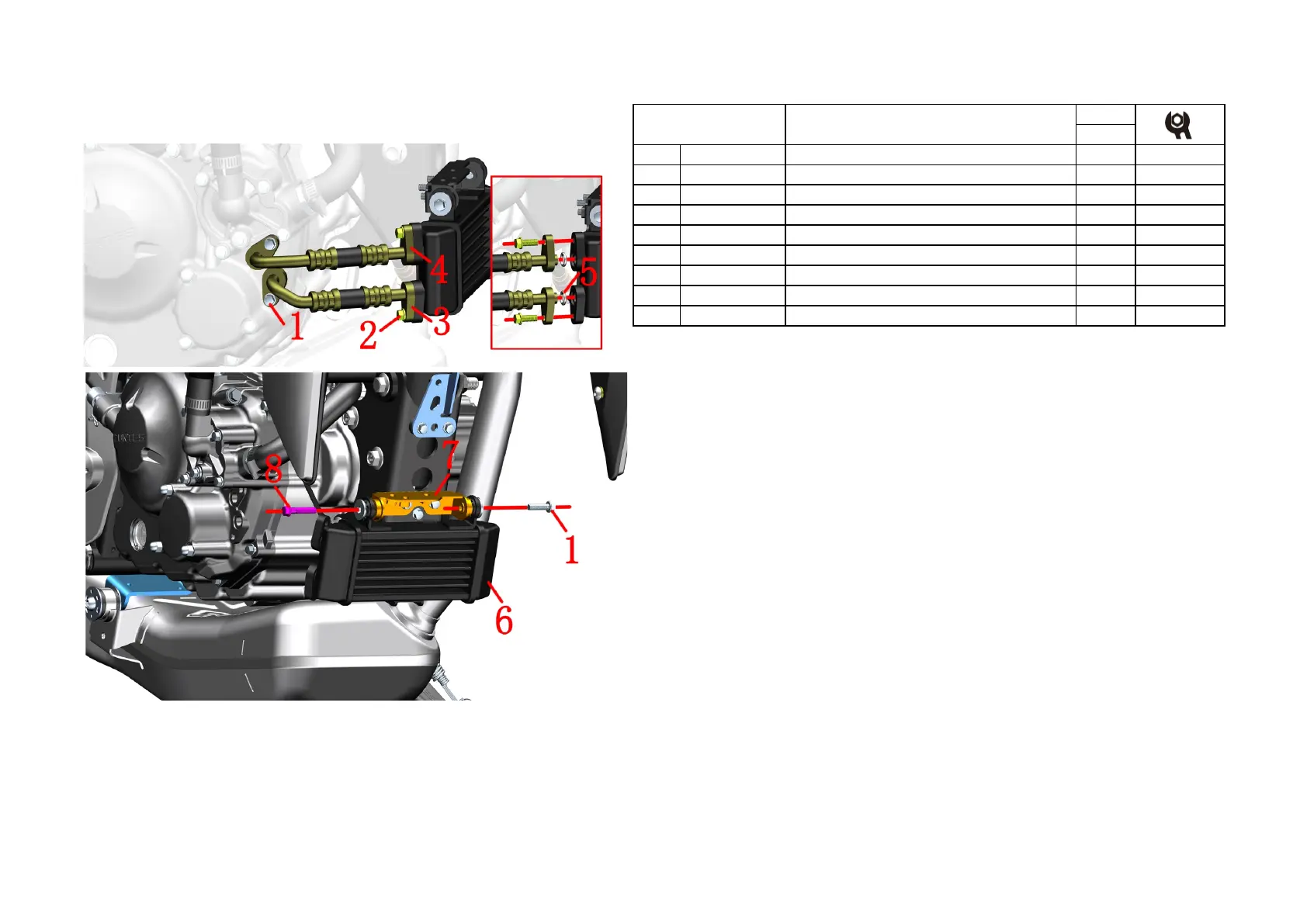

Fig.12 COOLING
SYSTEM COMPONENT
Oil cooler component 1
PROCEDURE:
●Oil cooler component
First drain the oil according to the steps of "Change engine oil".
Place the oil receiving pan under the oil cooler, first remove the bolt⑵ on the oil outlet pipe⑶ with 8# sleeve,
then remove the bolt⑴ on the oil inlet pipe⑷, and drain the oil in the oil cooler⑹.
Then remove the remaining 1 bolt⑵ and 1 bolt⑴ fixing the oil pipe, and remove the oil inlet pipe⑷, oil outlet
pipe⑶ and O-ring.
Remove one bolt⑻ and one bolt⑴ fixing the oil cooler with 8# sleeve, pull down the oil cooler⑹ and pour out
the residual oil.
CAUTION:
●Remove the lower shroud and hydraulic control unit component first.
●Disassembling the cooling system while the motorcycle is hot is prohibited. Wait until the engine and muffler
cool down thoroughly for the manipulation.
●Wasted engine oil should be collected and hand over to qualified facilities for further treatment. Do not pour
the oil anywhere and avoid pollution of environment and water source.
●Do not disassemble the oil tube violently in case of deformation of bush.
●To avoil leakage, changing seal gasket and O-ring every time together with engine oil is suggested.
●Be sure to wipe the connecting surface with clean nonwoven before reassembling.
To Next Page
