7-FRONT FORK COMPONENT
51
NO. PART NO. PART NAME QTY CAUTION
1 1250205-128000 GB70.1M6×60 (stainless steel) 1
2 1134300-010000 ZT350-GK hand guard bar counterweight 1
3 1134300-007000 ZT350-GK hand guard 1
4 1244300-041000 ZT350-GK steering handle rubber block 1
5 1190100-427000 KD150-G1 right rearview mirror (enlarged version) 1
6 1251512-046000 8.2×14×0.5 thrust washer (color zinc) 2
7 1251300-095000 Inner M6 to outer M16 thread sleeve 1
8 1134300-009000 ZT350-GK steering handle vibration absorber 1
9 1244300-036000 ZT350-GK shock absorber rubberfor steering handle 2
10 1244100-042000 ZT250-R right handle bar rubber sleeve 1
11 1100100-833000 ZT350-GK front brake lever (machine addition) 1
12 1244100-095000 ZT250-S Rearview mirror mounting hole rubber plug 1
13 1100100-831000
ZT350-GK front disc main pump assembly
（
）
15
1250205-031091 GB70.1M6×30 (stainless steel) 2

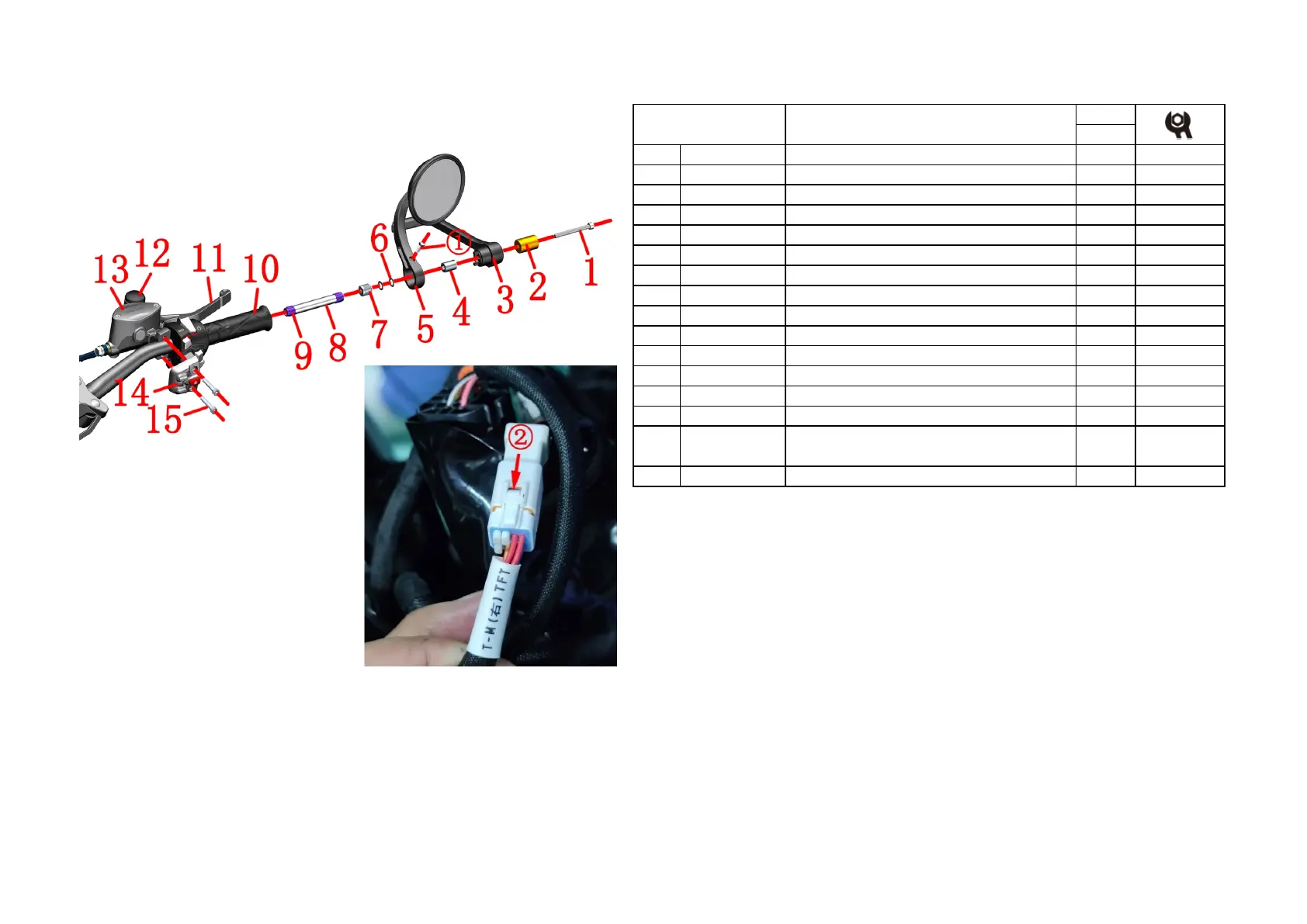

Fig.5 FRONT FORK
COMPONENT
Right hand component
1186200-012000
ZT310T-M second generation right hand switch (dark
gray TFT-500)
114
PROCEDURE:
●Right rearview mirror, Hand guard
Using 5# inner hexagon socket remove bolt ⑴,remove the counterweight ⑵,remove the bolts ①,take off the
hand guard ⑶, rubber block⑷,rearview mirror ⑸,then take out the rubber sleeve ⑽.
Remove the threaded sleeve ⑺ with 6# inner hexagon socket. Screw the bolt ⑴ into the vibration absorbing
rod ⑻ with 5# inner hexagon socket, grasp the head of the bolt ⑴, pull it out, and remove the vibration
absorbing rod ⑻ and buffer rubber ⑼.
●Generation right hand switch
Find and press the snap indicated by arrow②,then take off the plug of the generation right hand switch.
Fix the main pump ⒀ of the front disc brake with one hand, and remove the bolt ⒂ with 5# inner hexagon
socket tool with the other hand, and remove the right auxiliary handle switch ⒁.
When assembling the auxiliary switch, first screw the bolt about 10 turns, align the triangle symbol of the
handle switch, tighten the upper bolt, and then tighten the bottom bolt.
●Remove the head part component first.
●The motorcycle should be fixed after horizontal support.
●Periodically check that the fluid level of the brake fluid is between 3/4 of the observation window.
●Do not flush the cup directly with high pressure water.
●The right handlebar refers to the switch to replace the throttle line.
●The joint between the front disc brake main pump and the half cover should be aligned with the right
hand to match the triangle on the switch.
