4、DOUBLE ROCKER COMPONENT 22
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard Bolt M6×16
（
SS
）
5
2 1274100-057095 Bush φ6.2×φ8.4×3.5＋φ14×1.5 2
3 1244100-052000
Gum cushion, bush
（
φ8.5×φ14×1
）
3
4 1224200-003000
ZT310
－
Z rear disc brake oil tube cleat
2
5
1224300-048000 ZT350-R rear inner mud plate 1
6 1251700-059093
Bush φ6.4×φ9×8
＋
φ18×2
（
environmental color-zinc）
1
PROCEDURE:
●Rear inner mudguard
Using 4# inner hexagon socket remove the 5 bolts⑴ , disassemble bush⑵ and bush⑹; gum cushion⑶; finally
take off the rear inner mudguard⑸.
CAUTION:
●Use suitable tools to support the motorcycle, in case of accidents caused by motorcycle falling down. Single
person operating is prohibited.
●Stay alert during the manipulation and avoid accident.

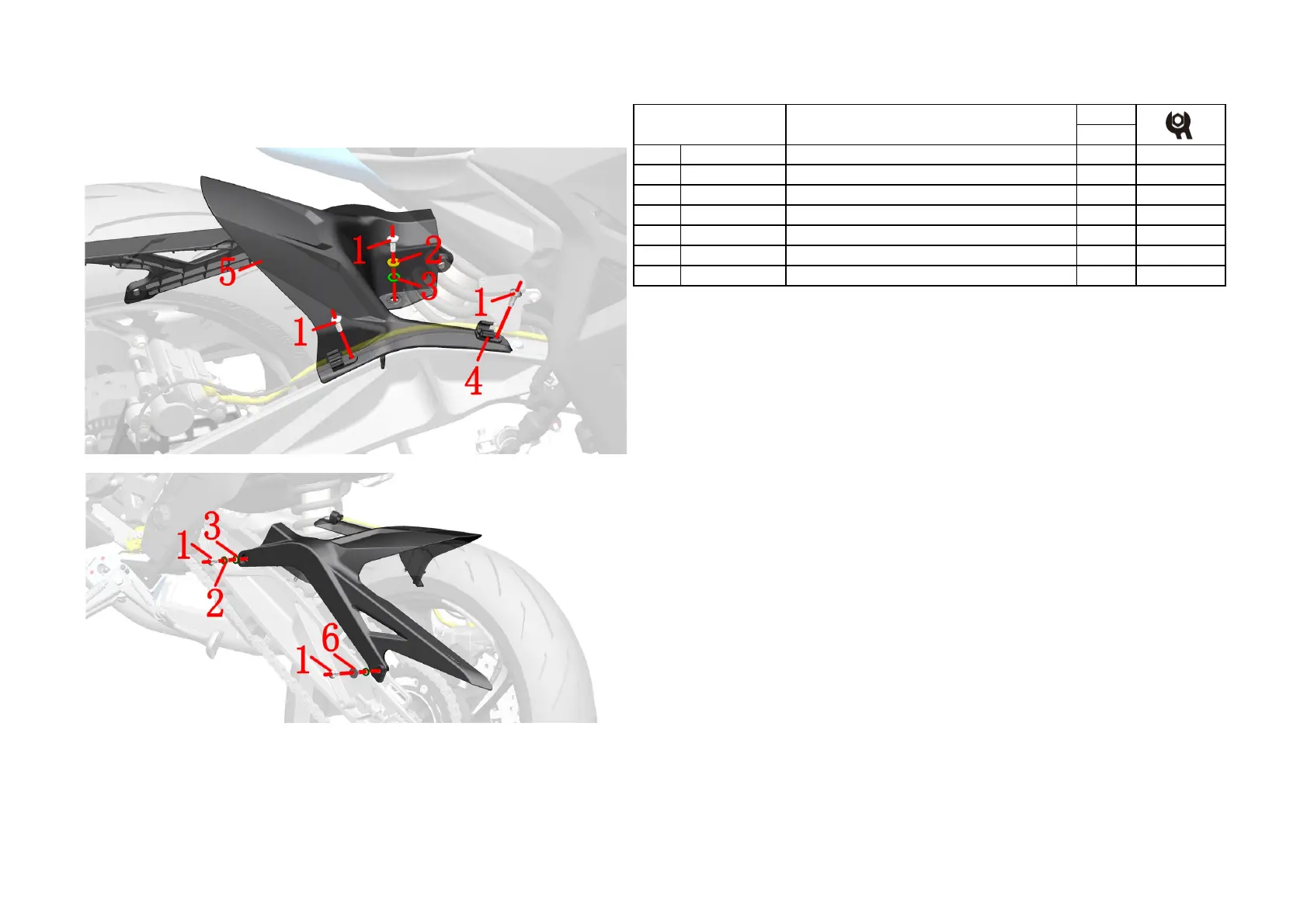

Fig.5 REAR WHELL
COMPONENT
Rear inner mudguard
