4、DOUBLE ROCKER COMPONENT 29
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 1
PROCEDURE:
●Add disc brake liquid
Cover the right pedal bracket and muffler with a waterproof plastic bag to prevent the brake fluid from dripping
onto the paint and causing corrosion.

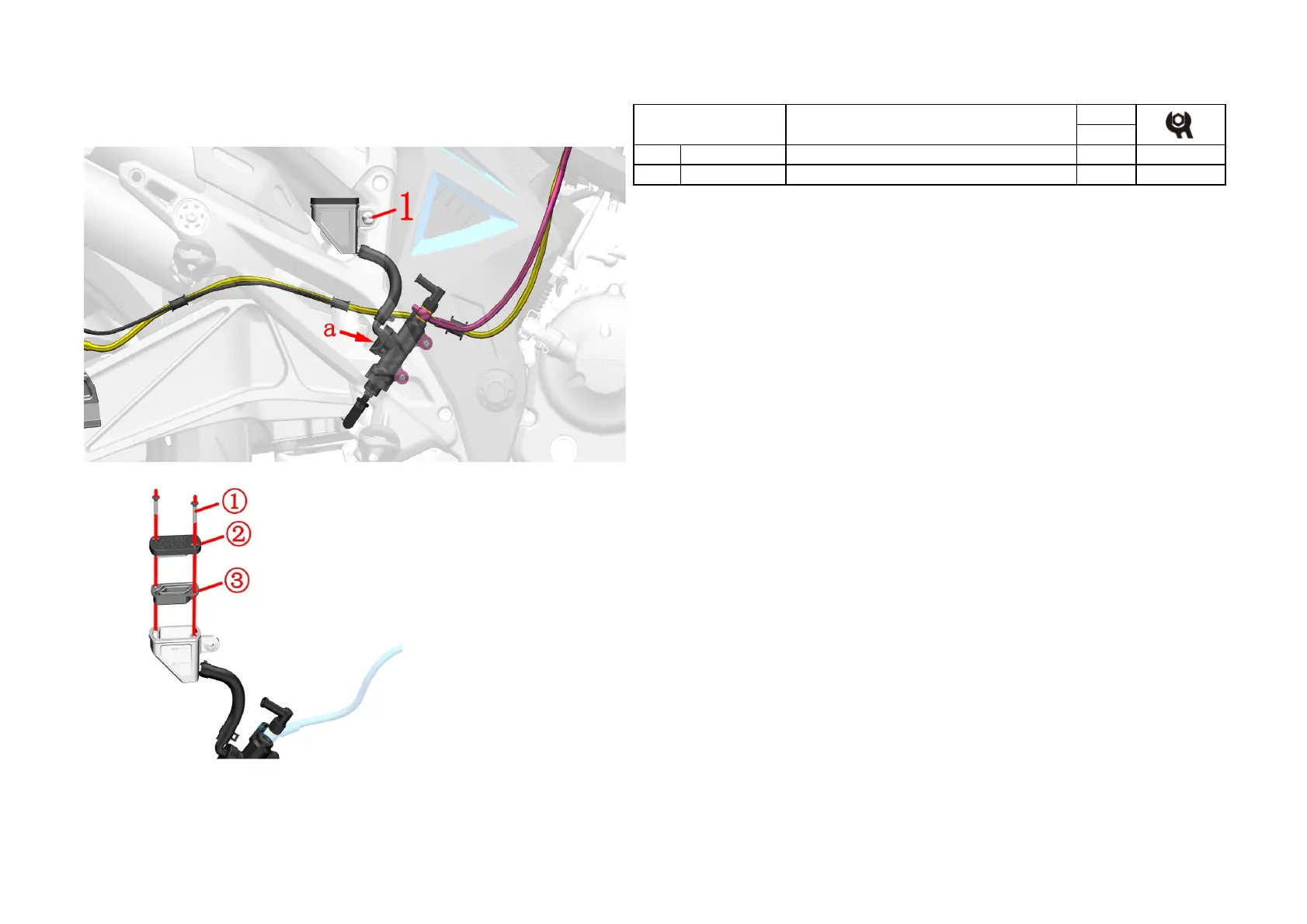

Using 4# inner hexagon socket remove the bolt⑴.
The oil cup should always remain above the oil tube interface "a", parallel to the ground. Avoid braking failure
caused by air getting into the oil circulation.
Disassemble 2bolts① with cross screwdriver.
Take off oil cup cap②, sealing gasket③.
Keep the top of oil cup parallel to the ground. Add DOT4 braking liquid. Ensure the liquid level is
between "MAX" and "MIN".
While reassemble, pay attention install sealing gasket③ in correct position and direction.
Step gently on the pedal constantly. Do not ride the motorcycle until the braking force is recovered.
CAUTION:
●Support the motorcycle well on flat ground before checking.
●Check regularly if the braking liquid surface is between "MAX" and "MIN".
●If liquid surface is below "MIN", check the arrester status and confirm if the braking system is leaking.
●If the braking liquid is accidently swallowed, contact intoxication center or hospital immediately. If it gets into
the eye, wash it away with clean water then see the doctor.
●Keep the braking liquid far away from children and pets.
●Flush the oil cup directly with high pressure water is prohibited.
●Mixing water, dust, impurity and liquid of silicic acid or petrol series into the braking liquid is prohibited.
Otherwise, the braking system would be damaged.
●It must be used in time after opening, and it is necessary to seal and prevent moisture during storage; it is
recommended not to exceed one month. Inferior or damp brake oil can cause poor braking system and can cause
brake failure if the impact is severe. Be sure to replace the brake fluid in a repair shop with brake fluid
replacement equipment and technology to avoid air in the brake line.
Fig.12 REAR WHELL
COMPONENT
Rear brake main pump adds brake fluid
