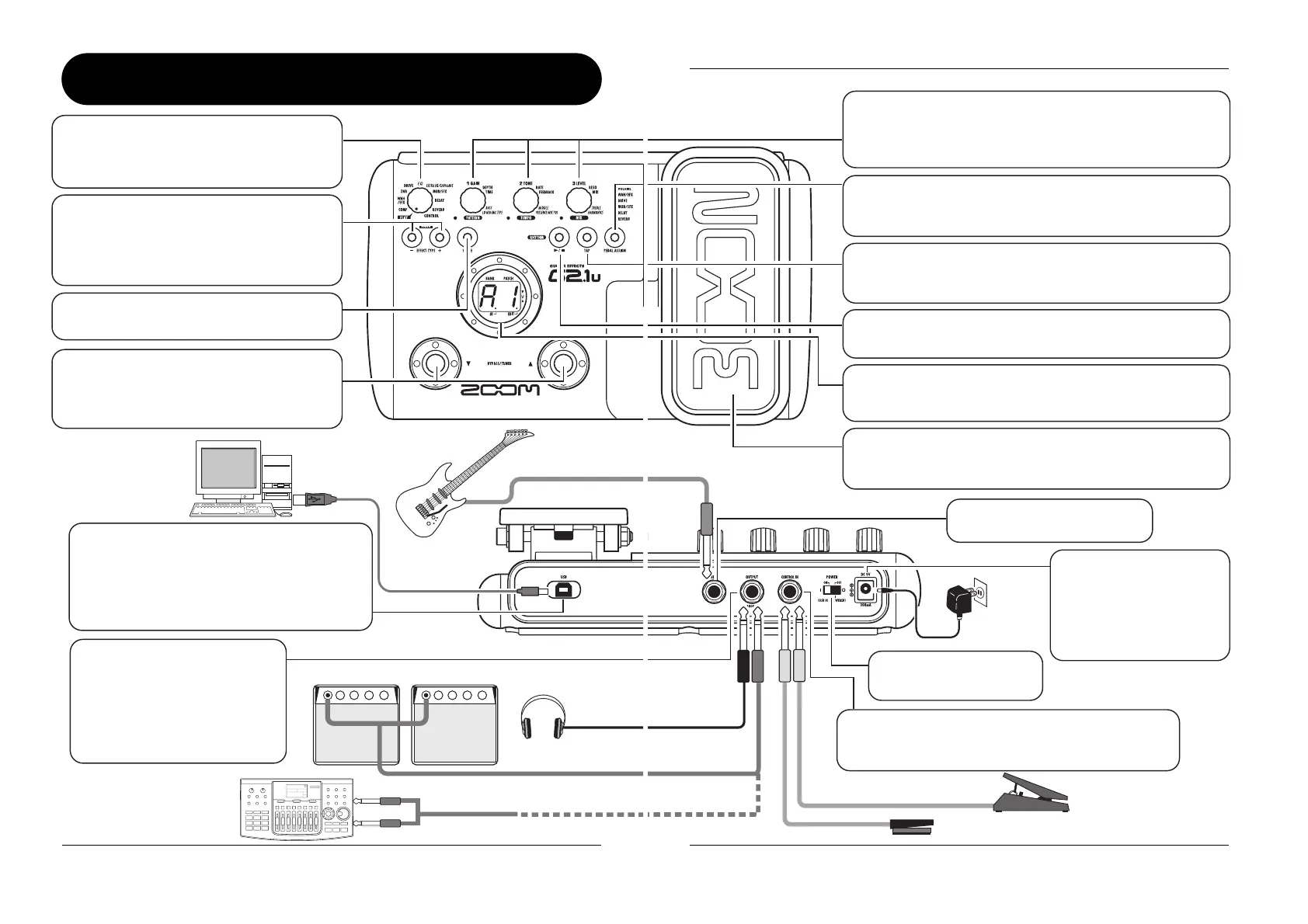

Controls and Functions / Connections
Module selector
Top Panel
Rear Panel
Switches between play mode and edit mode. In
edit mode, the knob selects the module for
operation.
[W]/[Q] foot switches
These switches are used for selecting patches,
switching effect modules on and off, controlling
the tuner, and other functions.
[USB] connector
Allows you to connect the G2.1u. to a computer,
for exchanging audio data. When you plug a cable
from this connector into the USB port of the
computer, you can use the G2.1u. as an audio
interface for the computer.
[STORE] key
Serves for storing edited patches in memory.
[OUTPUT/PHONES] jack
Guitar
MTR
(multitrack recorder)
Guitar amplifiers
Computer
Headphones
This stereo phone jack serves for
connection to a guitar amplifier or
recorder. It is also possible to use a
Y cable for sending the output to
two amplifiers, or to plug a pair of
stereo headphones into this jack.
BANK [-]/[+] keys
In play mode, the keys serve for directly
switching to the next lower or higher bank.
In edit mode, the keys switch the effect type for
the currently selected module.
Controls and Functions / Connections
ZOOM G2.1u
7
Parameter knobs 1 - 3
These knobs allow changing the level of effect parameters or of
the overall patch. During rhythm playback, the knobs let you
select a pattern, set the tempo, and adjust the rhythm volume.
[TAP] key
Allows manual input of time related effect parameter values
such as delay time, and rhythm pattern tempo.
Display
Shows patch numbers, setting values, and other information
about operating the G2.1u.
[PEDAL ASSIGN] key
This key lets you select the function of the built-in expression
pedal. The currently selected function is shown by a lit LED.
Expression pedal
Lets you adjust the volume or various effect parameters in real
time during play.
[CONTROL IN] jack
Serves for connection of the optional foot switch (FS01)
or expression pedal (FP01/FP02).
[DC IN] jack
An AC adapter (ZOOM
AD-0006) with a rated
output of 9 volts DC, 300
mA (center minus plug) can
be plugged into this jack.
[POWER] switch
Turns the unit on and off.
RHYTHM [R/P] key
Serves to start/stop rhythm playback.
[INPUT] jack
Serves for connecting the guitar.
AC adapter
FP01/FP02
FS01
