Zoom H6 Quick Guide

2
■
Left side
■
Front
■
Right side (and back
) ■
Bottom

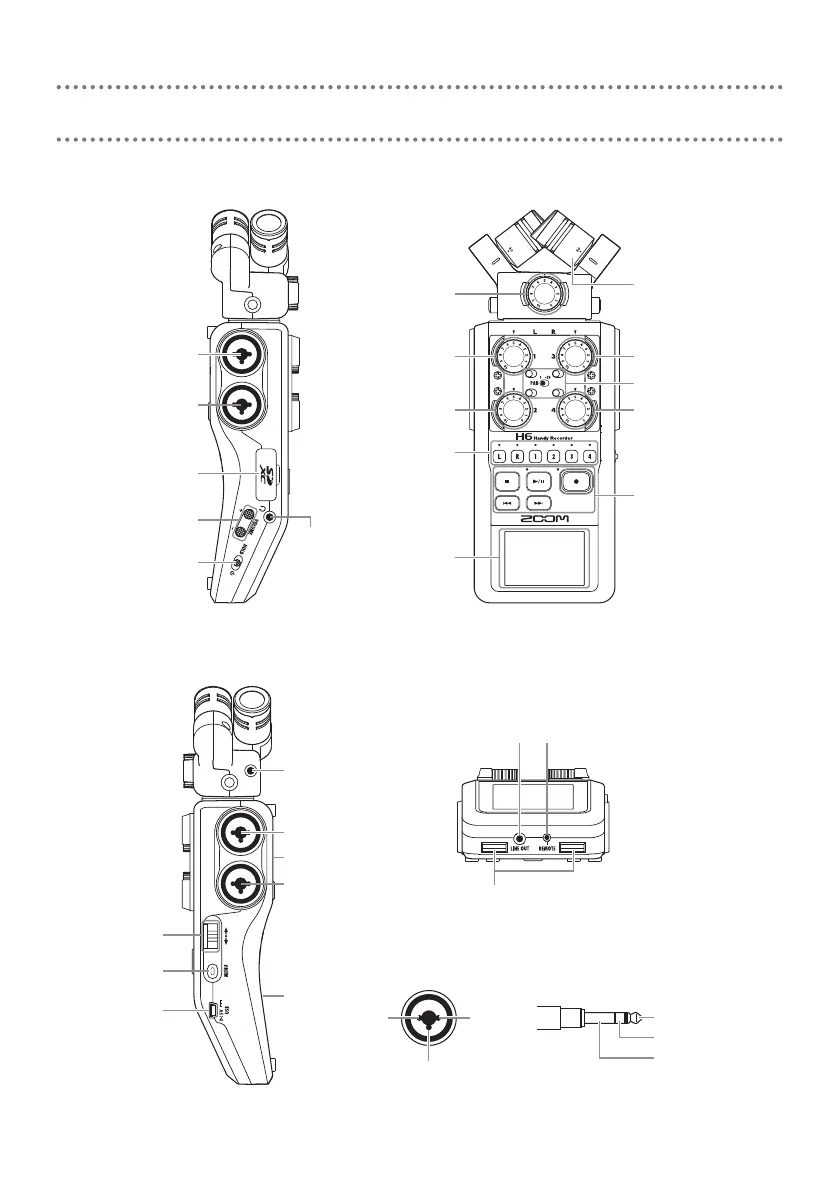

Parts and Connections
Input 1
Input volume L/R
Input volume 1
Input 2
SD card slot
VOLUME button
PHONE jack
POWER/HOLD
switch
Input volume 2
Track buttons
and indicators
(L, R, 1–4)
Input volume 3
XY mic
PAD switches
(1–4)
Input volume 4
Stop button
Display
Play/pause button
& indicator
REW button
FF button
Record button
& indicator
XLR TRS
Input 3
MIC/LINE input jack
(supports plug-in power)
Input 4
Battery cover
(back)
Speaker (back)
Scroll button
LINE OUT jack
Strap holes
(can also be used with camera straps)
REMOTE jack
MENU button
USB jack
(Mini-B)
1: GND
2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
12
3

Zoom H6 Specifications

General

Sample rate	96 kHz
Audio quality	24 bit
Frequency range	44100 - 96000 Hz
USB 2.0 ports quantity	1
Product color	Black
USB powered	Yes

Weight and Dimensions

Weight	280 g
Dimensions (WxDxH)	77.8 x 152.8 x 47.8 mm
