Zoom R20 Quicktour

6
Recording
█

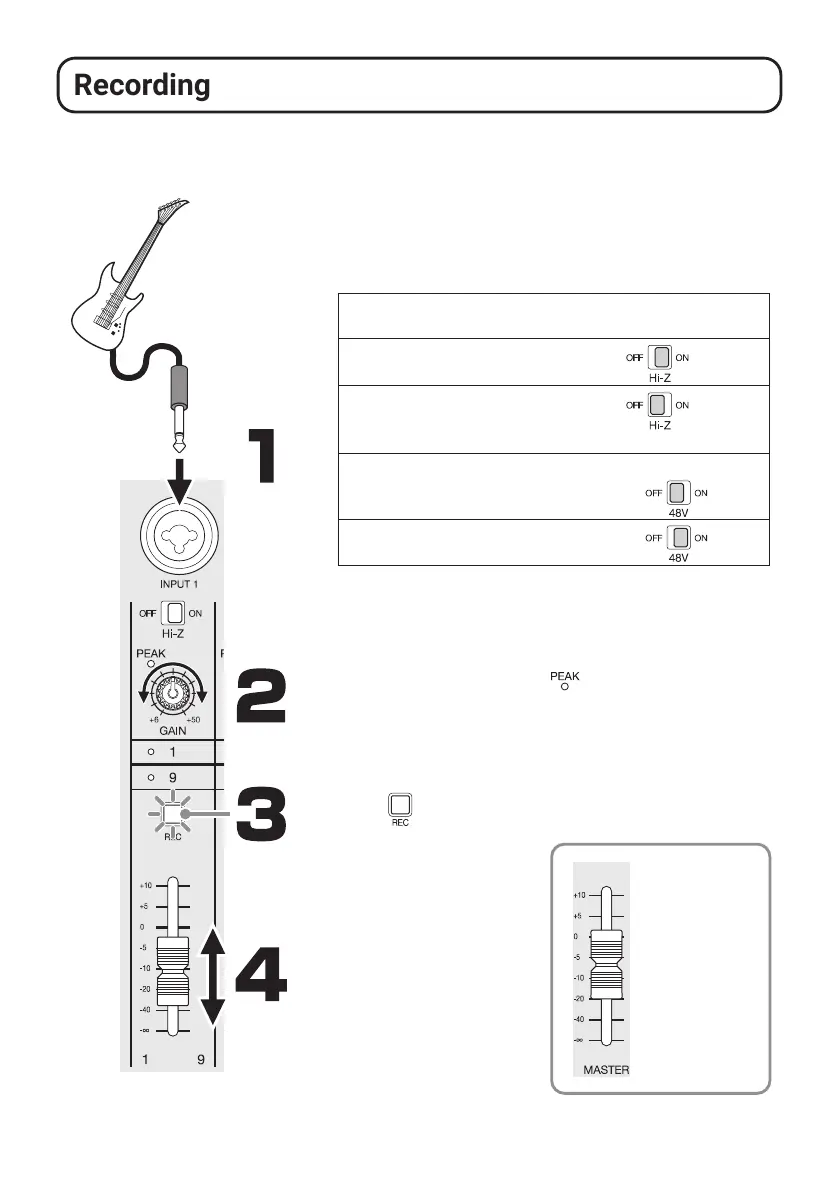

Connections and preparation
Connected equipment Connector and setting
Guitar/bass with passive
pickups (direct connection)
INPUT 1 (
)
Guitar/bass with active pick-
ups, synth or other electronic
instrument
INPUT 1 (
)
INPUT 2
Dynamic mic
INPUT 1–4
INPUT 5–8 (
)
Condenser mic INPUT 5–8 (
)
Make sound and adjust so does not
quite light at maximum volume.
Press so that it lights.
Make sound and
adjust the fader.
Use the
MASTER fader
to adjust the
overall volume.

Zoom R20 Specifications

General

Type	Digital Multitrack Recorder
Simultaneous Recording Tracks	8
Sample Rate	44.1 kHz
Bit Depth	24-bit
EQ	3-band EQ per channel
Inputs	8 XLR/TRS combo jacks
Phantom Power	+48V
Effects	Reverb, Chorus, Delay
Storage	SD card (up to 1TB)
USB	USB 2.0
Display	4.3-inch color touchscreen
Power Supply	AC adapter
Outputs	2 x TRS, 1 x Stereo Headphone
