iPad connection

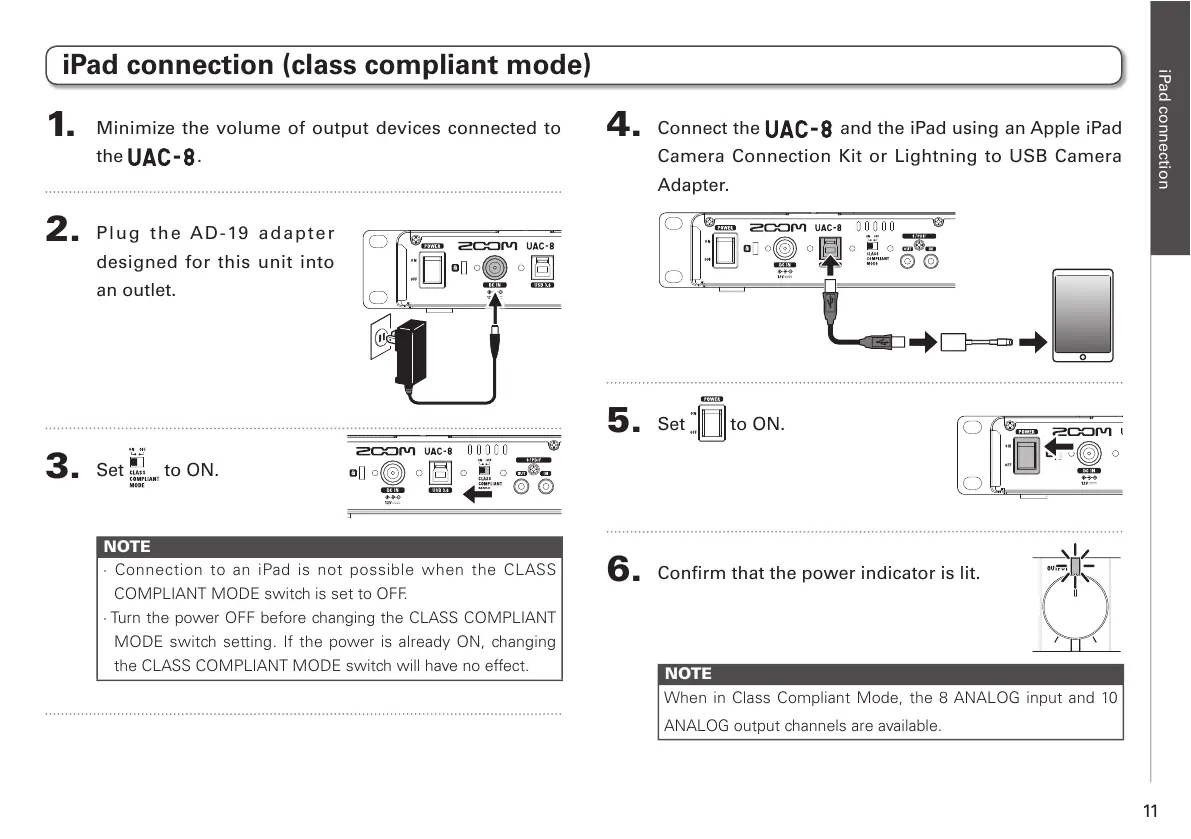

iPad connection (class compliant mode)
1.
Minimize the volume of output devices connected to
the
.
2.
Pl ug the AD-19 adap ter
designed for this unit into
an outlet.
3.
Set to ON.
NOTE
· Connection to an iPad is not possible when the CLASS
COMPLIANT MODE switch is set to OFF.
· Turn the power OFF before changing the CLASS COMPLIANT
MODE switch setting. If the power is already ON, changing
the CLASS COMPLIANT MODE switch will have no effect.
4.
Connect the and the iPad using an Apple iPad
Camera Connection Kit or Lightning to USB Camera
Adapter.
5.
Set to ON.
6.
Confirm that the power indicator is lit.
NOTE
When in Class Compliant Mode, the 8 ANALOG input and 10
ANALOG output channels are available.
