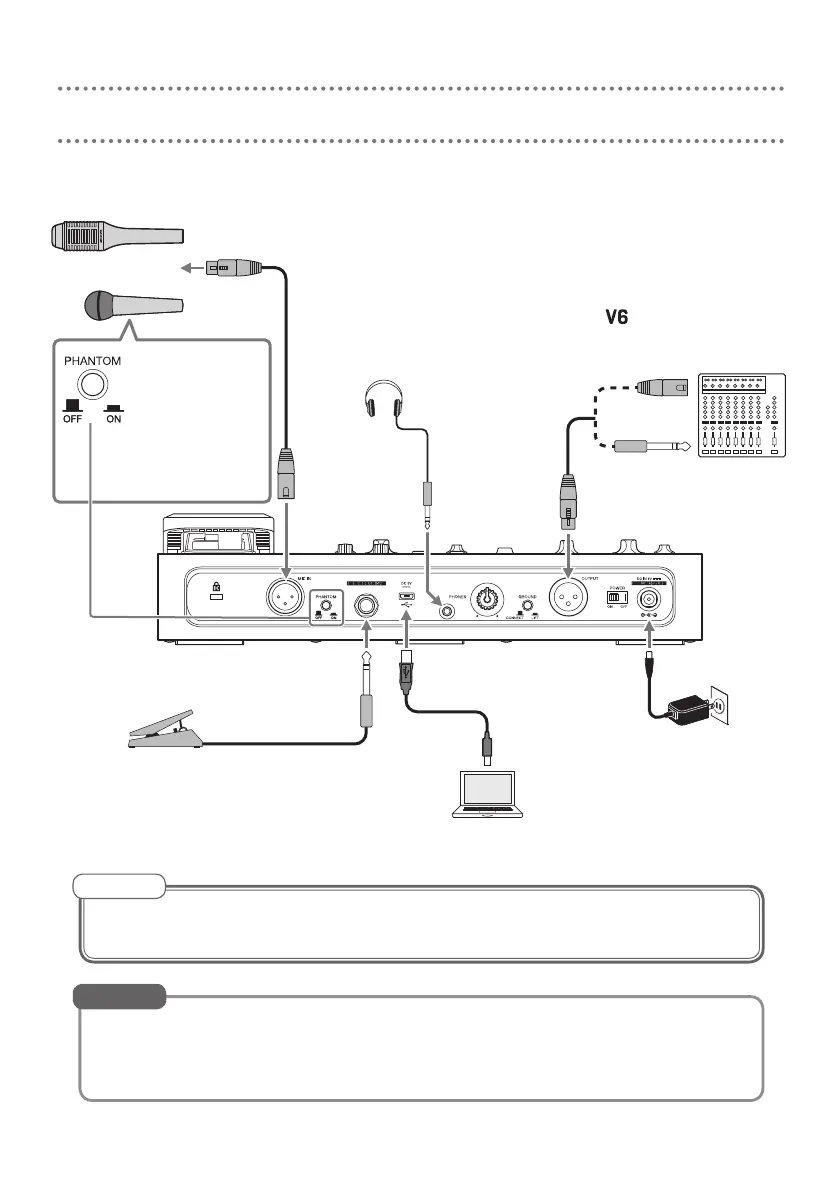

Zoom V6 - Making Connections

3
Computer
AC adapter
(ZOOM AD-16)
Stereo mini plug
headphones
Mic (ZOOM SGV-6 or commercially-available mic)
Use a mic cable to connect it to the MIC IN jack.
Expression pedal (ZOOM FP02M)
Connect it to the EFFECT CON-
TROL jack. The pedal can be used
to control the effect.
Mixer, PA system, recorder, etc.
Connect a cable with an XLR
connector (female) to the OUT-
PUT jack.
Use a cable with a connector
that suits the PA system or
recorder input jack.
The
output is line level.
Connect it to a line input jack
on the other equipment.
When connecting
a ZOOM SGV-6,
condenser mic or
other device that
requires phantom
power, set the
PHANTOM switch
to ON.
Always set the PHANTOM switch to OFF when connecting a device that does
not support phantom power. If this is not done, the device could be damaged.
NOTE
• 4 AA batteries can also be used. Use only one type of battery (alkaline,
NiMH or lithium) at a time.
• Power for operation can also be supplied through the USB port.
HINT
Making connections
or
