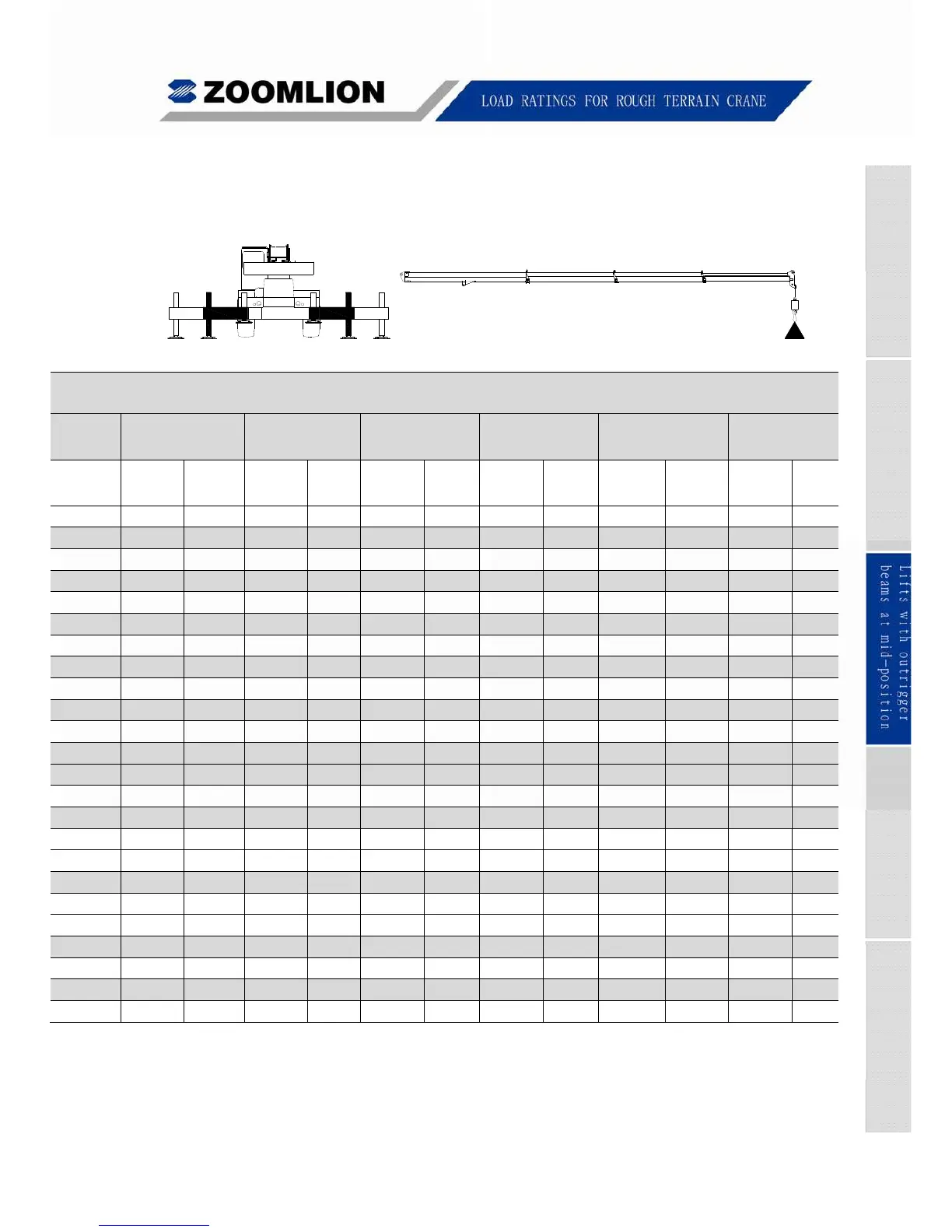

RT60 Rough Terrain Crane 03 - 1
3.1 MAIN BOOM RATED LOADS
USE THIS CHART WHEN ALL OUTRIGGERS ARE PINNED IN THE MID-POSITION
Rated loads on outriggers pinned in mid-position - 360°
(Rated load unit: kg)
BOOM
LENGTH
(MM)
11400 15350 19300 27200 35100 43000
LOAD
RADIUS
(MM)
BOOM
ANGLE
(º)
360º
(KG)
BOOM
ANGLE
(º)
360º
(KG)
BOOM
ANGLE
(º)
360º
(KG)
BOOM
ANGLE
(º)
360º
(KG)
BOOM
ANGLE
(º)
360º
(KG)
BOOM
ANGLE
(º)
360º
(KG)
3000 68.5 51050 74.3 45000 77.6 35000
3500 65.7 45350 72.3 44940 76.1 35000
4000 62.8 40650 70.3 40190 74.5 35000
4500 59.8 36700 68.3 36240 73.0 32950
5000 56.7 33350 66.2 32890 71.4 30950 76.9 20590
5500 53.4 28370 64.1 27620 69.8 27030 75.9 20590
6000 50.0 23910 61.9 23230 68.1 22690 74.8 20590
6500 46.4 20540 59.7 19910 66.5 19420 73.7 19640 77.4 13590
7000 42.5 17910 57.5 17320 64.8 16870 72.5 17830 76.6 13590
7500 38.2 15800 55.1 15240 63.2 14760 71.4 15750 75.7 13590
8000 33.4 14060 52.7 13490 61.4 13020 70.3 14040 74.9 13590 77.7 9190
9000 20.2 11310 47.6 10760 57.9 10340 68.0 11350 73.2 11740 76.4 9190
9433 0 10370
10000 42.0 8750 54.2 8360 65.7 9340 71.5 9730 75.0 8690
11000 35.6 7200 50.3 6840 63.3 7790 69.7 8180 73.6 8190
12000 27.7 5970 46.2 5630 60.9 6570 67.9 6950 72.2 7140
13375 0 4620
14000 36.7 3830 55.8 4750 64.3 5140 69.3 5330
16000 23.9 2560 50.4 3460 60.6 3850 66.4 4050
17320 0 1890
18000 44.6 2500 56.7 2900 63.5 3100
20000 37.9 1760 52.6 2160 60.4 2370
22000 30.0 1170 48.3 1580 57.3 1790
24000 43.7 1100 54.0 1310
