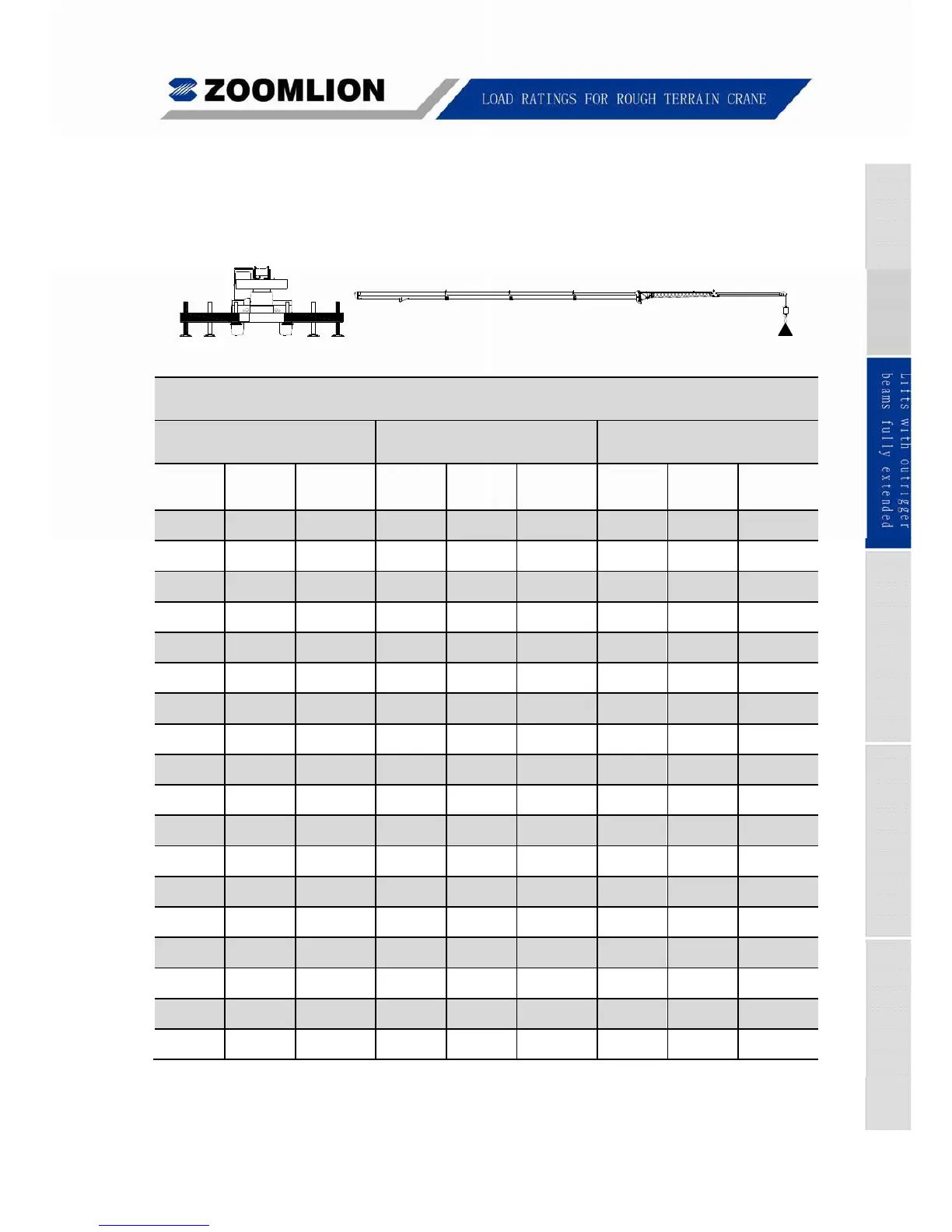

2.3 17 M JIB RATED LOADS
USE THIS CHART ONLY WHEN ALL OUTRIGGERS ARE FULLY EXTENDED
USE THIS CHART WHEN JIB SECTION 2 IS PULLED OUT FROM JIB SECTION 1
Rated loads on outriggers fully extended - 360°
(Rated load unit: Kg)
0° OFFSET 20° OFFSET 40° OFFSET
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
BOOM
ANGLE
(º)
LOAD
RADIUS
(MM)
360º
(KG)
78 10475 2640 78 15596 1390 78 19700 1040
76 12516 2390 76 17561 1340 76 21534 990
74 14539 2240 74 19503 1290 74 23339 990
72 16541 2090 72 21418 1240 72 25114 940
70 18522 1940 70 23305 1190 70 26855 940
68 20477 1840 68 25161 1190 68 28561 940
66 22405 1740 66 26984 1140 66 30230 890
64 24303 1640 64 28771 1090 64 31860 890
62 26169 1540 62 30521 1090 62 33448 890
60 28001 1490 60 32232 1040 60 34993 890
58 29796 1390 58 33901 1040 58 36493 890
56 31553 1340 56 35526 990 56 37947 840
54 33268 1290 54 37105 990 54 39351 840
52 34941 1240 52 38637 940 52 40706 840
50 36569 1180 50 40119 940 50 42008 840
48 38149 1010 48 41550 910 48 43256 840
46 39681 860 46 42927 780 46 44450 730
44 41162 720 44 44250 660 44 45587 620
